Description

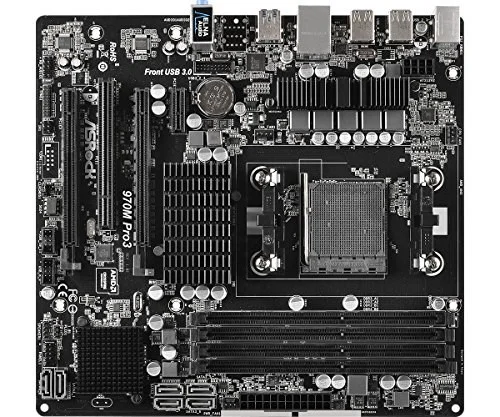

The ASRock 970M PRO3 is a Micro-ATX motherboard for AM3+/AM3. It supports DDR3 memory up to 2400 MT/s (OC).
- Socket AM3+/AM3
- Chipset: North Bridge AMD 970 & South Bridge AMD SB950
- Memory: 4x DDR3-2400+(OC)/ 2100(OC)/ 1866(OC)/ 1800(OC)/ 1600(OC)/ 1333/ 1066 DIMM Slots, Dual Channel, Non-ECC, Unbuffered, Max Capacity of 64GB
- Slots: 2x PCI-Express 2.0 x16 Slots (one run x4), 1x PCI-Express 2.0 x1 Slots, 1x PCI Slot
- Storage: 6x SATA3 Ports, Support RAID 0, 1, 5, 10
- Form Factor: MicroATX
Specifications
| Manufacturer | ASRock |
|---|---|
| Model Number | 970M PRO3 |
| Launch Date | |
| CPU Socket | AM3+/AM3 |
| Chipset Model | 970 |
| Board Size / Form Factor | Micro-ATX |
| Supported Memory Type | DDR3 |
| DIMM Slots | 4 |
| Maximum RAM Capacity | 64 GB |
| Valid DDR4 Speeds | DDR4-1066 / DDR4-1333 / DDR4-1600 / DDR4-1800 / DDR4-1866 / DDR4-2100 / DDR4-2400 (OC) |
| ECC Memory Support | No |
| Expansion Slots (PCIe) | 2 × PCIe x16, 1 × PCIe x1 |
| PCIe x16 (Qty) | 2 |
| PCIe x4 (Qty) | 0 |
| PCIe x1 (Qty) | 1 |
| M.2 Slot Count | 0 × M.2 |
| M.2 Device Compatibility | |
| SATA III Ports | 6 × SATA 6Gbps |
| SATA Express Ports | 0 |
| Wired Networking (LAN) | |
| Onboard Wi-Fi | No |
| Wi-Fi Standard | |
| Rear-Panel USB | USB 3.2 Gen1, USB 2.0 |
| Internal USB 3.2 Gen 2x2 Headers | 0 |
| Internal USB 3.2 Gen 2 Headers | 0 |
| Internal USB 3.2 Gen 1 Headers | 1 |
| Internal USB 2.0 Headers | 2 |
| NVIDIA SLI | No |
| AMD CrossFire | Yes |
| RAID Capability | Yes |
| Back-Connect Layout | No |
| Manufacturer Part Number (MPN) | 970M PRO3 |
| SKU Code | 970M PRO3 |
| GTIN / EAN | 4717677325775 |
