ASRock 990FX EXTREME3 AM3+/AM3 ATX DDR3 32 GB Motherboard
| Seller | Shipping | Promo | Price |
|---|---|---|---|
|
- | - | |
|
- | - |
N/A
|
|
- | - |
N/A
|
|
- | - |
N/A
|
* PC Pro Guide may earn a small commission when you buy through links on our site. (Affiliate disclosure)
* Prices and availability can change without notice. The price and stock status displayed on Amazon at the time you complete your purchase are the ones that apply.
Description

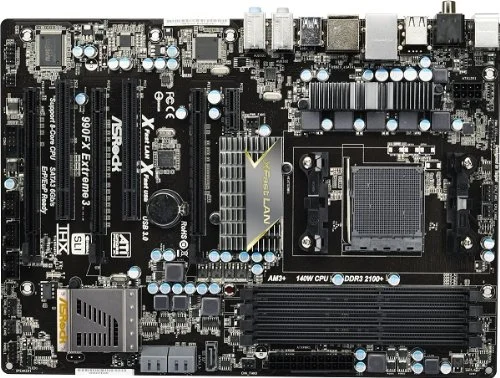

The ASRock 990FX EXTREME3 is a ATX motherboard for AM3+/AM3. It supports DDR3 memory up to 2100 MT/s (OC).
- Chipset: AMD 990FX & SB950. ? Memory: 4x DDR3-2100(OC)/1866/1600/1333/1066/800 DIMMs, Dual Channel, Non-ECC/Un-buffered, Max Capacity up to 32GB.
- Slots: 3x PCI-Express 2.0 x16 Slots(one run at x4, Supports AMD Quad/ 3-Way/ CrossFireX/ nVidia Quad SLI/ SLI ); 1x PCI-Express 2.0 x1 Slots; 2x PCI Slots
- SATA: 5x SATA3 Ports, Support RAID 0/ 1/ 5/ 10; 1x eSATA3 Port
- Audio: Realtek ALC892 7.1-Channel HD Audio CODEC, Supports Premium Blu-ray audio; Supports THX TruStudio Pro
- LAN: Broadcom BCM57781 PCI-Express x1 Gigabit Ethernet Controller, Supports Wake-On-LAN
- CPU: Socket AM3+/ AM3 Support AMD Phenom II X6/X4/X3/X2 (except 920/ 940) /Athlon II X4/ X3/ X2/ Sempron processors; Supports 8-Core CPU; Supports CPU upto 140W; Supports AMD’s Cool ’n’ Quiet Technology; Supports Untied Overclocking Technology; Supports Hyper-Transport 3.0 Technology; FSB 5.2 GT/s

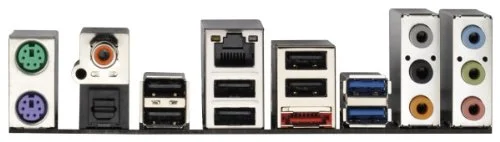

- Ports: 12x USB 2.0 Ports (6 rear, 6 by headers); 2x USB 3.0 Ports; 1x eSATA3 Port; 2x PS/2 Ports; 1x Coaxial SPDIF Out; 1x Optical SPDIF Out; 1x RJ45 LAN Port; Audio I/O Jacks
- Supports NVIDIA Quad-GPU SLI
- Supports AMD Quad-GPU CrossFireX
- Limited overclock
Specifications
| Manufacturer | ASRock |
|---|---|
| Model Number | 990FX EXTREME3 |
| Launch Date | September 2011 |
| CPU Socket | AM3+/AM3 |
| Chipset Model | 990FX |
| Board Size / Form Factor | ATX |
| Supported Memory Type | DDR3 |
| DIMM Slots | 4 |
| Maximum RAM Capacity | 32 GB |
| Valid DDR4 Speeds | DDR4-800 / DDR4-1066 / DDR4-1333 / DDR4-1600 / DDR4-1866 / DDR4-2100 (OC) |
| ECC Memory Support | No |
| Expansion Slots (PCIe) | 3 × PCIe x16, 1 × PCIe x1 |
| PCIe x16 (Qty) | 3 |
| PCIe x4 (Qty) | 0 |
| PCIe x1 (Qty) | 1 |
| M.2 Slot Count | 0 × M.2 |
| M.2 Device Compatibility | |
| SATA III Ports | 5 × SATA 6Gbps |
| SATA Express Ports | 0 |
| Wired Networking (LAN) | |
| Onboard Wi-Fi | No |
| Wi-Fi Standard | |
| Rear-Panel USB | USB 2.0 |
| Internal USB 3.2 Gen 2x2 Headers | 0 |
| Internal USB 3.2 Gen 2 Headers | 0 |
| Internal USB 3.2 Gen 1 Headers | 0 |
| Internal USB 2.0 Headers | 3 |
| NVIDIA SLI | Yes |
| AMD CrossFire | Yes |
| RAID Capability | Yes |
| Back-Connect Layout | No |
| Manufacturer Part Number (MPN) | 990FX EXTREME3 |
| SKU Code | 990FX EXTREME3 |
| GTIN / EAN | 5052181759524 |
