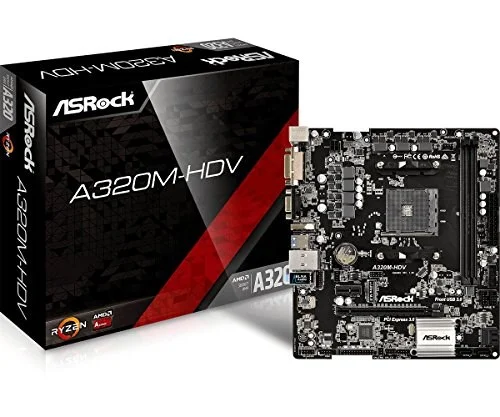

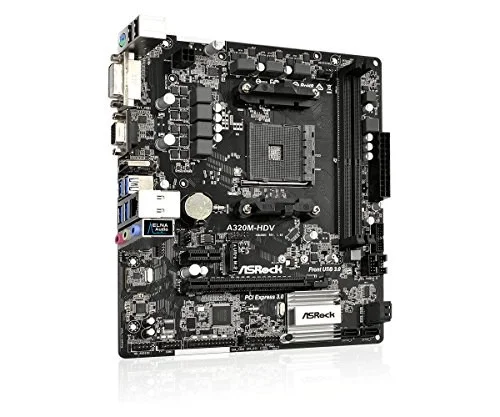

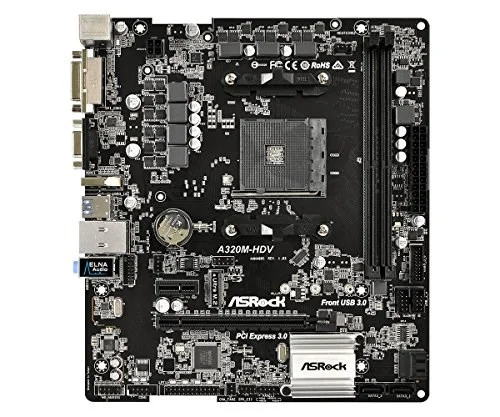

ASRock A320M-HDV AM4 Micro-ATX DDR4 32 GB Motherboard
| Seller | Shipping | Promo | Price |
|---|---|---|---|
|
- | - | |
|
- | - |
N/A
|
|
- | - |
N/A
|
|
- | - |
N/A
|
* PC Pro Guide may earn a small commission when you buy through links on our site. (Affiliate disclosure)
* Prices and availability can change without notice. The price and stock status displayed on Amazon at the time you complete your purchase are the ones that apply.
Description
The ASRock A320M-HDV is a Micro-ATX motherboard for AM4. It supports DDR4 memory up to 3200 MT/s (OC).
- ASRock Super Alloy
- Supports AMD Socket AM4 A-Series APUs (Bristol Ridge) and Ryzen Series CPUs (Summit Ridge)
- Supports DDR4 3200+ (OC) (Ryzen CPU) / 2400 (A-series APU)
- 1 PCIe 3.0 x16, 1 PCIe 2.0 x1

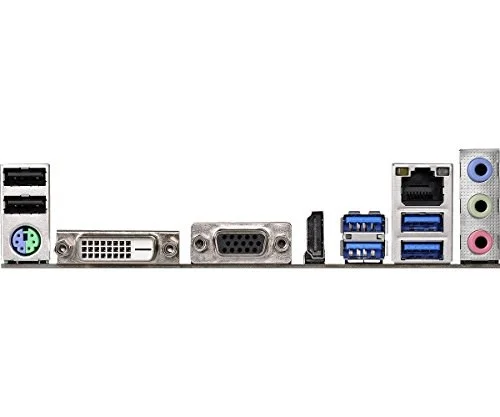

- Graphics Output:HDMI, DVI-D, D-Sub
- 7.1 CH HD Audio (Realtek ALC887 Audio Codec), ELNA Audio Caps
- 4 SATA3, 1 Ultra M.2 (PCIe Gen3 x4 & SATA3)
- 6 USB 3.1 Gen1 (2 Front, 4 Rear)
- Realtek Gigabit LAN
Specifications
| Manufacturer | ASRock |
|---|---|
| Model Number | A320M-HDV |
| Launch Date | July 2017 |
| CPU Socket | AMD Socket AM4 |
| Chipset Model | Intel A320 |
| Board Size / Form Factor | Micro-ATX |
| Supported Memory Type | DDR4 |
| DIMM Slots | 2 |
| Maximum RAM Capacity | 32 GB |
| Valid DDR4 Speeds | DDR4-2133 / DDR4-2400 / DDR4-2666 / DDR4-2933 / DDR4-3200 (OC) |
| ECC Memory Support | No |
| Expansion Slots (PCIe) | 1 × PCIe x16, 1 × PCIe x1 |
| PCIe x16 (Qty) | 1 |
| PCIe x4 (Qty) | 0 |
| PCIe x1 (Qty) | 1 |
| M.2 Slot Count | 1 × M.2 |
| M.2 Device Compatibility | 2242 / 2260 / 2280 - M Key |
| SATA III Ports | 4 × SATA 6Gbps |
| SATA Express Ports | 0 |
| Wired Networking (LAN) | GbE LAN |
| Onboard Wi-Fi | No |
| Wi-Fi Standard | |
| Rear-Panel USB | USB 3.2 Gen1, USB 2.0 |
| Internal USB 3.2 Gen 2x2 Headers | 0 |
| Internal USB 3.2 Gen 2 Headers | 0 |
| Internal USB 3.2 Gen 1 Headers | 1 |
| Internal USB 2.0 Headers | 2 |
| NVIDIA SLI | No |
| AMD CrossFire | No |
| RAID Capability | Yes |
| Back-Connect Layout | No |
| Manufacturer Part Number (MPN) | A320M-HDV |
| SKU Code | A320M-HDV |
| GTIN / EAN | 4717677333220 |
