Description

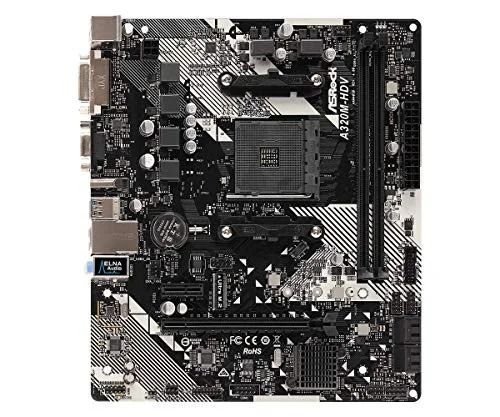

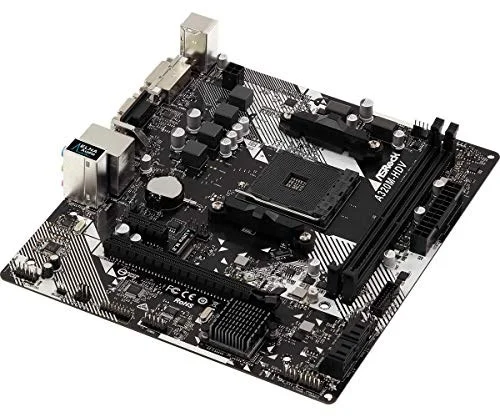

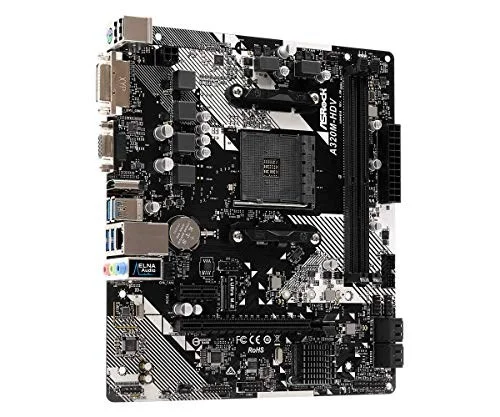

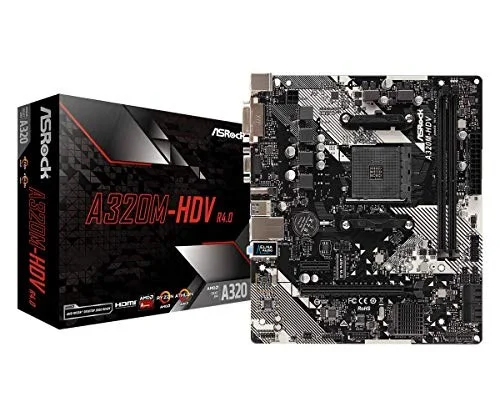

The ASRock A320M-HDV R4.0 is a Micro-ATX motherboard for AM4. It supports DDR4 memory up to 3200 MT/s (OC).
- Chipset: AMD Promontory A320
- Cpu: Socket AM4
- Slots: 4X PCI-Express 3.0 X16 Slots, 1X PCI-Express 2.0 X1 Slot
- 4X SATA3 Ports, Support RAID 0, 1, 10, NCQ, AHCI And Hot Plug
- M.2: 1X Ultra M.2 Port (M Key), Supports Type 2242/ 2260/ 2280 M.2 SATA3 & M.2 PCI-Express 3.0 X4 (32 Gb/S) (With Summit Ridge, Raven Ridge And Pinnacle Ridge)
Specifications
| Manufacturer | ASRock |
|---|---|
| Model Number | A320M-HDV R4.0 90-MXB9L0-A0UAYZ |
| Launch Date | February 2019 |
| CPU Socket | AMD Socket AM4 |
| Chipset Model | Intel A320 |
| Board Size / Form Factor | Micro-ATX |
| Supported Memory Type | DDR4 |
| DIMM Slots | 2 |
| Maximum RAM Capacity | 32 GB |
| Valid DDR4 Speeds | DDR4-2133 / DDR4-2400 / DDR4-2666 / DDR4-2933 / DDR4-3200 (OC) |
| ECC Memory Support | No |
| Expansion Slots (PCIe) | 1 × PCIe x16, 1 × PCIe x1 |
| PCIe x16 (Qty) | 1 |
| PCIe x4 (Qty) | 0 |
| PCIe x1 (Qty) | 1 |
| M.2 Slot Count | 1 × M.2 |
| M.2 Device Compatibility | 2242 / 2260 / 2280 - M Key |
| SATA III Ports | 4 × SATA 6Gbps |
| SATA Express Ports | 0 |
| Wired Networking (LAN) | |
| Onboard Wi-Fi | No |
| Wi-Fi Standard | |

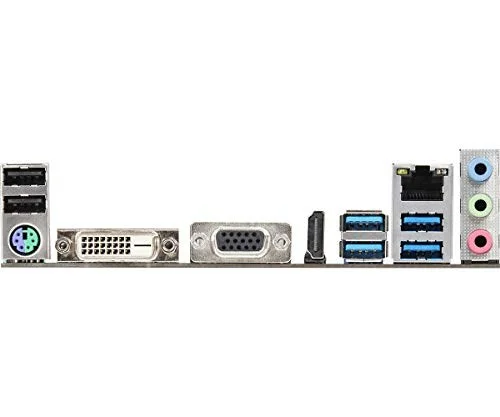

| Rear-Panel USB | USB 3.2 Gen1, USB 2.0 |
| Internal USB 3.2 Gen 2x2 Headers | 0 |
| Internal USB 3.2 Gen 2 Headers | 0 |
| Internal USB 3.2 Gen 1 Headers | 1 |
| Internal USB 2.0 Headers | 2 |
| NVIDIA SLI | No |
| AMD CrossFire | No |
| RAID Capability | Yes |
| Back-Connect Layout | No |
| Manufacturer Part Number (MPN) | A320M-HDV R4.0 |
| SKU Code | A320M-HDV R4.0 |
| GTIN / EAN | 4717677337648 |
