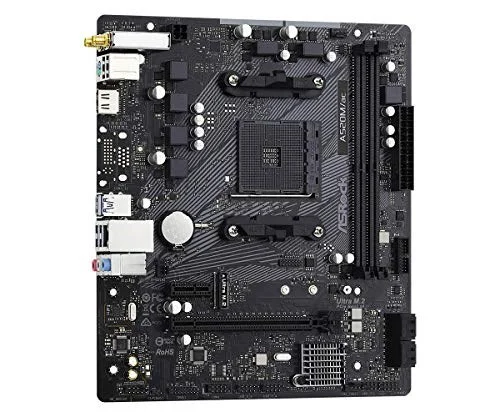

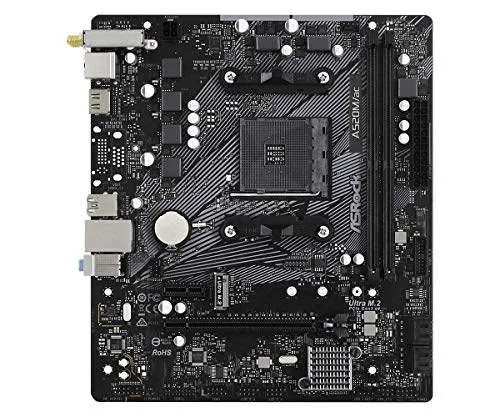

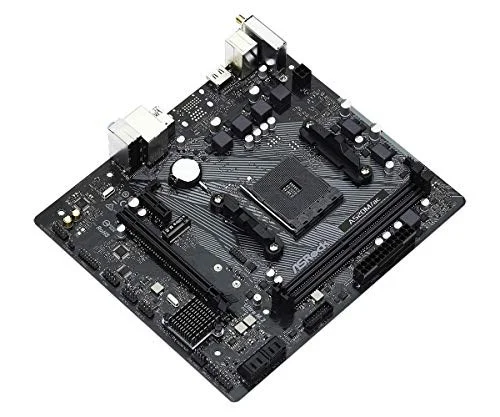

ASRock A520M/AC AM4 Micro-ATX DDR4 64 GB Motherboard
* PC Pro Guide may earn a small commission when you buy through links on our site. (Affiliate disclosure)
* Prices and availability can change without notice. The price and stock status displayed on Amazon at the time you complete your purchase are the ones that apply.
Description
The ASRock A520M/AC is a Micro-ATX motherboard for AM4. It supports DDR4 memory up to 4733 MT/s (OC).
- Supports 3Rd Gen AMD AM4 Ryzen / Future AMD Ryzen Processors (3000 And 4000 Series Processors)
- 6 Phase Power Design
- Supports DDR4 4733+ (OC)
- 1 X Pcie 3.0 X16, 1 X Pcie 3.0 X1
- Graphics Output Options: HDMI
Specifications
| Manufacturer | ASRock |
|---|---|
| Model Number | A520M/AC |
| Launch Date | August 2020 |
| CPU Socket | AMD Socket AM4 |
| Chipset Model | Intel A520 |
| Board Size / Form Factor | Micro-ATX |
| Supported Memory Type | DDR4 |
| DIMM Slots | 2 |
| Maximum RAM Capacity | 64 GB |
| Valid DDR4 Speeds | DDR4-2133 / DDR4-2400 / DDR4-2666 / DDR4-2933 / DDR4-3200 / DDR4-3466 / DDR4-3600 / DDR4-3733 / DDR4-3866 / DDR4-4133 / DDR4-4200 / DDR4-4266 / DDR4-4333 / DDR4-4400 / DDR4-4533 / DDR4-4600 / DDR4-4666 / DDR4-4733 (OC) |
| ECC Memory Support | No |
| Expansion Slots (PCIe) | 1 × PCIe x16, 1 × PCIe x1 |
| PCIe x16 (Qty) | 1 |
| PCIe x4 (Qty) | 0 |
| PCIe x1 (Qty) | 1 |
| M.2 Slot Count | 2 × M.2 |
| M.2 Device Compatibility | 2242 / 2260 / 2280 - M Key, 2230 - E Key |
| SATA III Ports | 4 × SATA 6Gbps |
| SATA Express Ports | 0 |
| Wired Networking (LAN) | |
| Onboard Wi-Fi | Yes |
| Wi-Fi Standard | 5 |

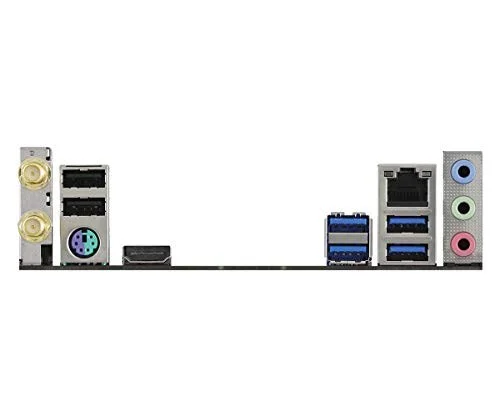

| Rear-Panel USB | USB 3.2 Gen1, USB 2.0 |
| Internal USB 3.2 Gen 2x2 Headers | 0 |
| Internal USB 3.2 Gen 2 Headers | 0 |
| Internal USB 3.2 Gen 1 Headers | 1 |
| Internal USB 2.0 Headers | 2 |
| NVIDIA SLI | No |
| AMD CrossFire | No |
| RAID Capability | Yes |
| Back-Connect Layout | No |
| Manufacturer Part Number (MPN) | A520M/AC |
| SKU Code | A520M/AC |
| GTIN / EAN | 4710483932328 |
