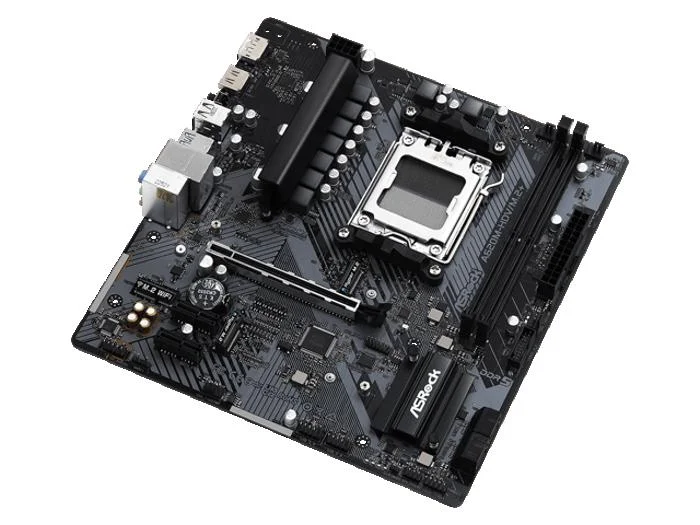

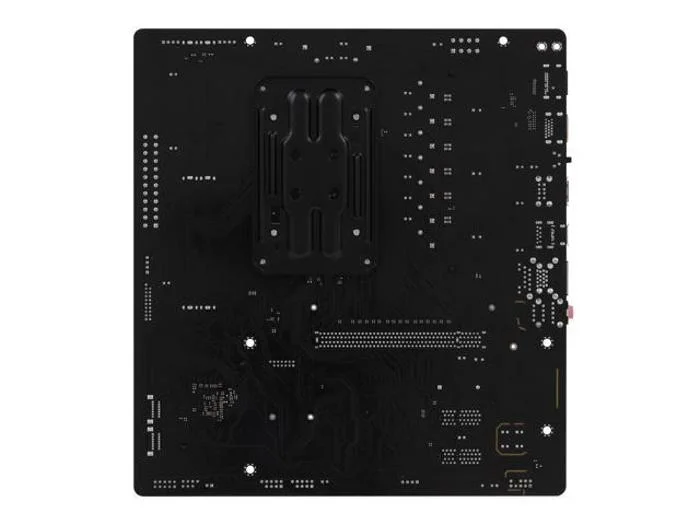

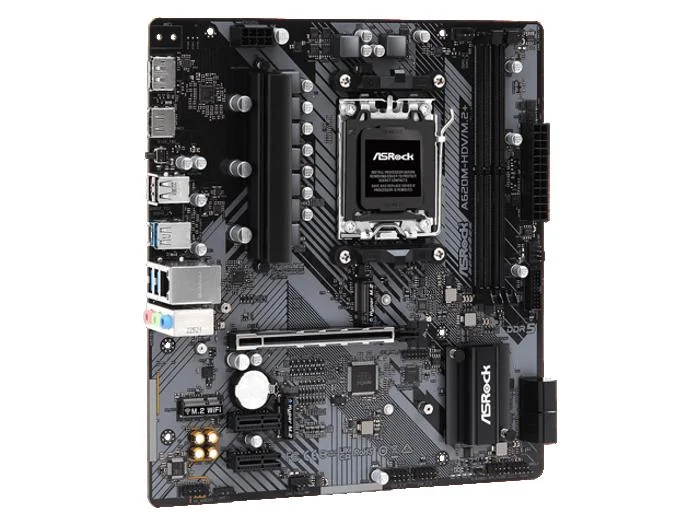

ASRock A620M-HDV/M.2 Plus AM5 Micro-ATX DDR5 64 GB Motherboard
| Seller | Shipping | Promo | Price |
|---|---|---|---|
|
- | - |
N/A
|
|
- | - |
N/A
|
|
- | - |
N/A
|
|
£45.74 | - |
* PC Pro Guide may earn a small commission when you buy through links on our site. (Affiliate disclosure)
* Prices and availability can change without notice. The price and stock status displayed on Amazon at the time you complete your purchase are the ones that apply.
Description
The ASRock A620M-HDV/M.2 Plus is a Micro-ATX motherboard for AM5. It supports DDR5 memory up to 6400 MT/s (OC).
- ASRock A620M-HDV/M.2+ AM5 Micro ATX Motherboard, supports up to 120W CPU Number of Memory Slots: 2x288pin (DDR5) Memory Standard: DDR5 6400+(OC) Audio Chipset: Realtek ALC897 Audio Codec Nahimic Audio PCI Express x1: 2 x PCIe 3.0 x1 Slots (PCIE2 and PCIE3)* Audio Channels: 7.1 Channels Max LAN Speed: 1Gbps Maximum Memory Supported: 64GB Channel Supported: Dual Channel
Specifications
| Manufacturer | ASRock |
|---|---|
| Model Number | A620M-HDV/M.2+ |
| Launch Date | |
| CPU Socket | AM5 |
| Chipset Model | Intel A620 |
| Board Size / Form Factor | Micro-ATX |
| Supported Memory Type | DDR5 |
| DIMM Slots | 2 |
| Maximum RAM Capacity | 64 GB |
| Valid DDR4 Speeds | DDR5-4800 / DDR5-5200 / DDR5-5600 / DDR5-6000 / DDR5-6200 / DDR5-6400 (OC) |
| ECC Memory Support | No |
| Expansion Slots (PCIe) | 1 × PCIe x16, 2 × PCIe x1 |
| PCIe x16 (Qty) | 1 |
| PCIe x4 (Qty) | 0 |
| PCIe x1 (Qty) | 2 |
| M.2 Slot Count | 3 × M.2 |
| M.2 Device Compatibility | 2280 - M Key, 2260 / 2280 - M Key, 2230 - E Key |
| SATA III Ports | 4 × SATA 6Gbps |
| SATA Express Ports | 0 |
| Wired Networking (LAN) | |
| Onboard Wi-Fi | No |
| Wi-Fi Standard | |

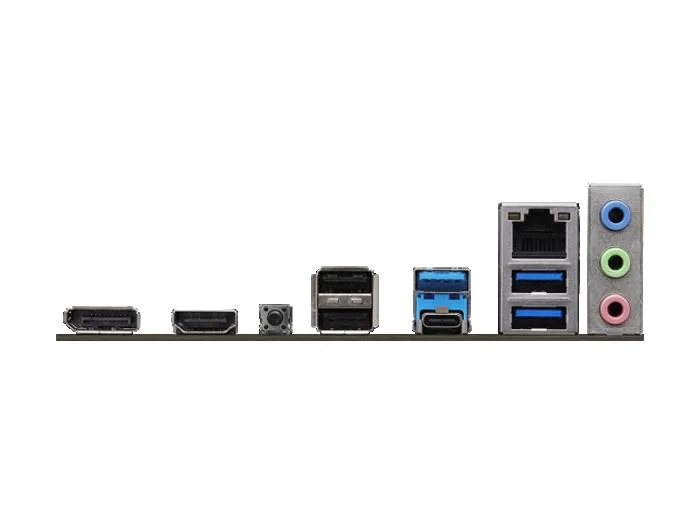

| Rear-Panel USB | USB 3.2 Gen1, USB 2.0 |
| Internal USB 3.2 Gen 2x2 Headers | 0 |
| Internal USB 3.2 Gen 2 Headers | 0 |
| Internal USB 3.2 Gen 1 Headers | 1 |
| Internal USB 2.0 Headers | 2 |
| NVIDIA SLI | No |
| AMD CrossFire | No |
| RAID Capability | Yes |
| Back-Connect Layout | No |
| Manufacturer Part Number (MPN) | A620M-HDV/M.2+ |
| SKU Code | A620M-HDV/M.2+ |
| GTIN / EAN | 4710483943034 |
