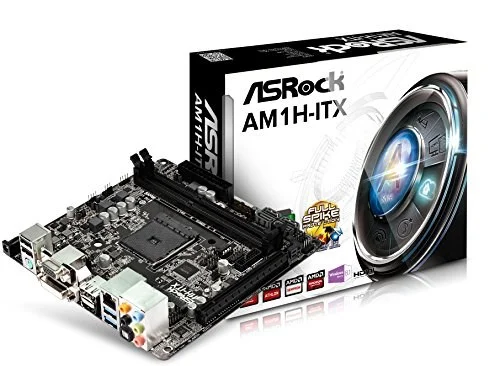

ASRock AM1H-ITX AM1 Mini-ITX DDR3 16 GB Motherboard
| Seller | Shipping | Promo | Price |
|---|---|---|---|
|
- | - | |
|
- | - |
N/A
|
|
- | - |
N/A
|
|
- | - |
N/A
|
* PC Pro Guide may earn a small commission when you buy through links on our site. (Affiliate disclosure)
* Prices and availability can change without notice. The price and stock status displayed on Amazon at the time you complete your purchase are the ones that apply.
Description

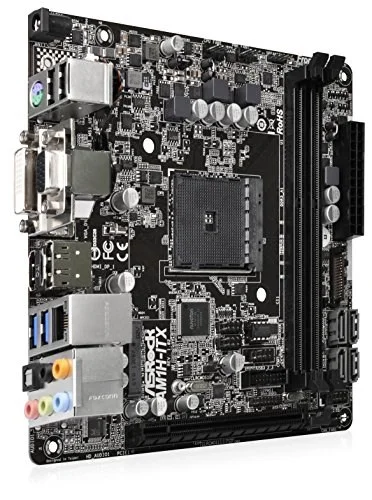

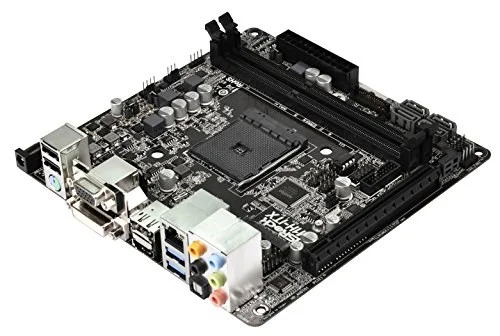

The ASRock AM1H-ITX is a Mini-ITX motherboard for AM1. It supports DDR3 memory up to 1600 MT/s (OC).
- All Solid Capacitor design
- Supports AMD Socket AM1 Athlon/Sempron APU
- Supports DDR3 1600 memory, 2 x DIMM slots, Max. 32GB
- 1 x PCIe 2.0 x16, 1 x mini-PCIe
- Integrated AMD Radeon R3 Series Graphics in A-series / E-series APU

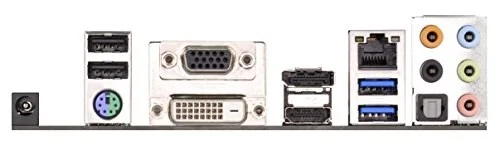

- Multi Graphics Output Options : 1 x D-Sub, 1 x DVI-D, 1 x HDMI, 1 x DisplayPort 1.2
- 4 x USB 3.0 (2 Front, 2 Rear), 6 x USB 2.0 (4 Front, 2 Rear), 4 x SATA3
- Two Power Input Options : 1 x DC-In Jack, 1 x 24 pin ATX Power Connector
- Realtek Gigabit LAN
- 7.1 CH HD Audio (Realtek ALC892 Audio Codec)
- Supports ASRock Full Spike Protection, A-Tuning, FAN-Tastic Tuning, UEFI Tech Service, USB Key
- 4x SATA ports
- 4x USB 2.0 + 2x USB 3.0 ports
- Display port
- mini-PCIe slot
- More expensive than other AM1 boards
Specifications
| Manufacturer | ASRock |
|---|---|
| Model Number | AM1H-ITX |
| Launch Date | August 2014 |
| CPU Socket | AM1 |
| Chipset Model | Intel AM1 |
| Board Size / Form Factor | Mini-ITX |
| Supported Memory Type | DDR3 |
| DIMM Slots | 2 |
| Maximum RAM Capacity | 16 GB |
| Valid DDR4 Speeds | DDR4-1066 / DDR4-1333 / DDR4-1600 (OC) |
| ECC Memory Support | No |
| Expansion Slots (PCIe) | |
| PCIe x16 (Qty) | 0 |
| PCIe x4 (Qty) | 0 |
| PCIe x1 (Qty) | 0 |
| M.2 Slot Count | 0 × M.2 |
| M.2 Device Compatibility | |
| SATA III Ports | 4 × SATA 6Gbps |
| SATA Express Ports | 0 |
| Wired Networking (LAN) | GbE LAN |
| Onboard Wi-Fi | No |
| Wi-Fi Standard | |
| Rear-Panel USB | |
| Internal USB 3.2 Gen 2x2 Headers | 0 |
| Internal USB 3.2 Gen 2 Headers | 0 |
| Internal USB 3.2 Gen 1 Headers | 0 |
| Internal USB 2.0 Headers | 0 |
| NVIDIA SLI | No |
| AMD CrossFire | No |
| RAID Capability | No |
| Back-Connect Layout | No |
| Manufacturer Part Number (MPN) | AM1H-ITX |
| SKU Code | AM1H-ITX |
| GTIN / EAN | 4717677322996 |
