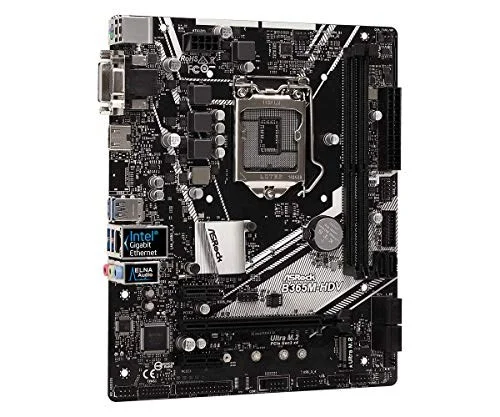

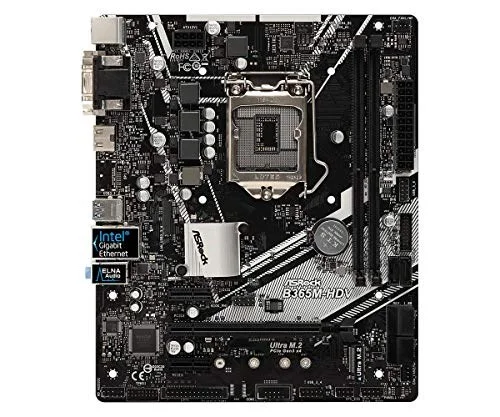

ASRock B365M-HDV LGA1151 Micro-ATX DDR4 32 GB Motherboard
* PC Pro Guide may earn a small commission when you buy through links on our site. (Affiliate disclosure)
* Prices and availability can change without notice. The price and stock status displayed on Amazon at the time you complete your purchase are the ones that apply.
Description
The ASRock B365M-HDV is a Micro-ATX motherboard for LGA1151. It supports DDR4 memory up to 2666 MT/s (OC).
- Supports 9Th And 8Th Gen Intel Core Processors (Socket 1151)
- Supports DDR4 2666
- 1 Pcie 3. 0 X16, 2 Pcie 3. 0 X1

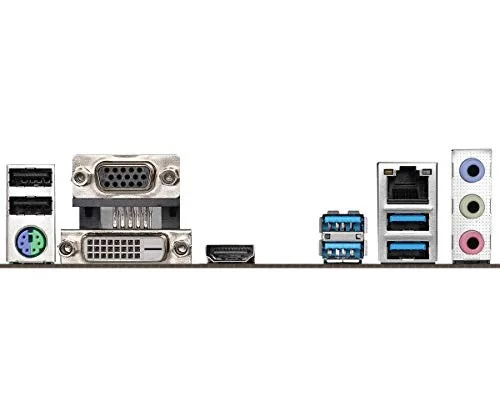

- Graphics Output Options: HDMI, DVI-D, D-Sub
-
- 1 Ch HD Audio (Realtek ALC887 Audio Codec), ELNA Audio Caps
- 6 SATA3, 1 Ultra M. 2 (Pcie Gen3 X4 & SATA3)
- 6 USB 3. 1 Gen1 (2 Front, 4 Rear)
- Intel Gigabit LAN
Specifications
| Manufacturer | ASRock |
|---|---|
| Model Number | B365M-HDV 90-MXB9R0-A0UAYZ |
| Launch Date | August 2019 |
| CPU Socket | LGA1151 |
| Chipset Model | Intel B365 |
| Board Size / Form Factor | Micro-ATX |
| Supported Memory Type | DDR4 |
| DIMM Slots | 2 |
| Maximum RAM Capacity | 32 GB |
| Valid DDR4 Speeds | DDR4-2133 / DDR4-2400 / DDR4-2666 (OC) |
| ECC Memory Support | No |
| Expansion Slots (PCIe) | 1 × PCIe x16, 2 × PCIe x1 |
| PCIe x16 (Qty) | 1 |
| PCIe x4 (Qty) | 0 |
| PCIe x1 (Qty) | 2 |
| M.2 Slot Count | 1 × M.2 |
| M.2 Device Compatibility | 2242 / 2260 / 2280 - M Key |
| SATA III Ports | 6 × SATA 6Gbps |
| SATA Express Ports | 0 |
| Wired Networking (LAN) | GbE LAN |
| Onboard Wi-Fi | No |
| Wi-Fi Standard | |
| Rear-Panel USB | USB 3.2 Gen1, USB 2.0 |
| Internal USB 3.2 Gen 2x2 Headers | 0 |
| Internal USB 3.2 Gen 2 Headers | 0 |
| Internal USB 3.2 Gen 1 Headers | 1 |
| Internal USB 2.0 Headers | 2 |
| NVIDIA SLI | No |
| AMD CrossFire | No |
| RAID Capability | Yes |
| Back-Connect Layout | No |
| Manufacturer Part Number (MPN) | B365M-HDV |
| SKU Code | B365M-HDV |
| GTIN / EAN | 4717677338157 |
