ASRock B365M PHANTOM GAMING 4 LGA1151 Micro-ATX DDR4 64 GB Motherboard
| Seller | Shipping | Promo | Price |
|---|---|---|---|
|
- | - | |
|
- | - |
N/A
|
|
- | - |
N/A
|
|
- | - |
N/A
|
* PC Pro Guide may earn a small commission when you buy through links on our site. (Affiliate disclosure)
* Prices and availability can change without notice. The price and stock status displayed on Amazon at the time you complete your purchase are the ones that apply.
Description

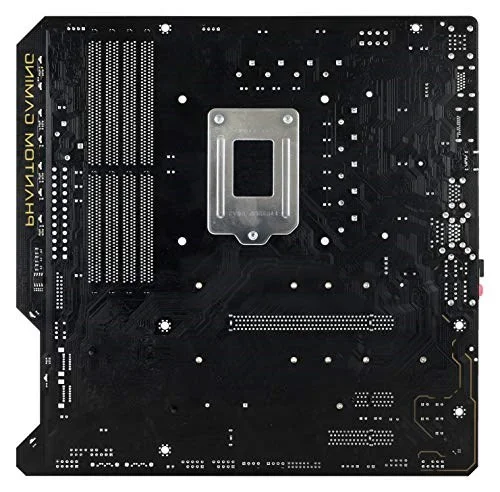

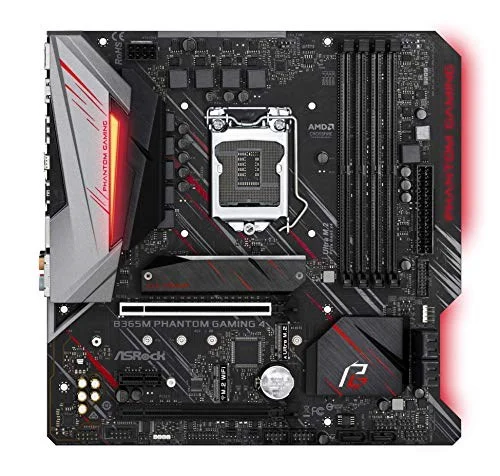

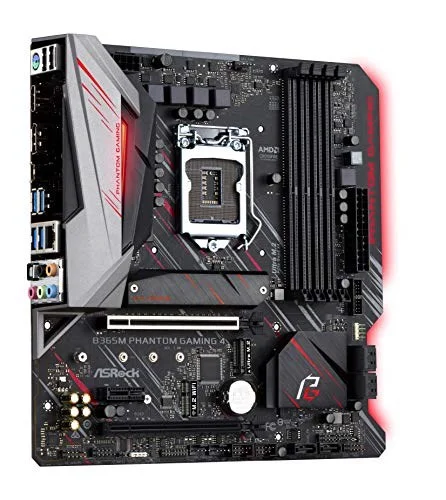

The ASRock B365M PHANTOM GAMING 4 is a Micro-ATX motherboard for LGA1151. It supports DDR4 memory up to 2666 MT/s (OC).
- CPU: LGA1151, Supports 9Th/ 8Th Generation Intel Core Processors, CPU Up To 95W
- Chipset: Intel B365
- Memory: 4X DDR4-2666/ 2400/ 2133 DIMM Slots, Dual Channel, Non-ECC, Unbuffered, Max Capacity Of 64GB
- Slots: 2X PCI-Express 3.0 X16 Slots (Single At X16; Dual At X16/ X4), 1X PCI Express 3.0 X1 Slot (Flexible Pcie)
- Multi-Graphics: Supports AMD Quad Crossfirex And Crossfirex Technology
Specifications
| Manufacturer | ASRock |
|---|---|
| Model Number | B365M PHANTOM GAMING 4 90-MXB9W0-A0UAYZ |
| Launch Date | February 2019 |
| CPU Socket | LGA1151 |
| Chipset Model | Intel B365 |
| Board Size / Form Factor | Micro-ATX |
| Supported Memory Type | DDR4 |
| DIMM Slots | 4 |
| Maximum RAM Capacity | 64 GB |
| Valid DDR4 Speeds | DDR4-2133 / DDR4-2400 / DDR4-2666 (OC) |
| ECC Memory Support | No |
| Expansion Slots (PCIe) | 2 × PCIe x16, 1 × PCIe x1 |
| PCIe x16 (Qty) | 2 |
| PCIe x4 (Qty) | 0 |
| PCIe x1 (Qty) | 1 |
| M.2 Slot Count | 3 × M.2 |
| M.2 Device Compatibility | 2242 / 2260 / 2280 - M Key, 2242 / 2260 / 2280 / 22110 - M Key, 2230 - E Key |
| SATA III Ports | 6 × SATA 6Gbps |
| SATA Express Ports | 0 |
| Wired Networking (LAN) | |
| Onboard Wi-Fi | No |
| Wi-Fi Standard | |

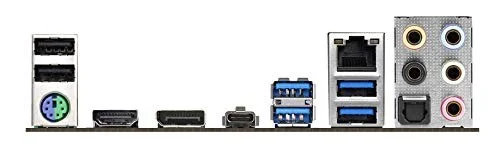

| Rear-Panel USB | USB 3.2 Gen1, USB 2.0 |
| Internal USB 3.2 Gen 2x2 Headers | 0 |
| Internal USB 3.2 Gen 2 Headers | 0 |
| Internal USB 3.2 Gen 1 Headers | 1 |
| Internal USB 2.0 Headers | 2 |
| NVIDIA SLI | No |
| AMD CrossFire | Yes |
| RAID Capability | Yes |
| Back-Connect Layout | No |
| Manufacturer Part Number (MPN) | B365M PHANTOM GAMING 4 |
| SKU Code | B365M PHANTOM GAMING 4 |
| GTIN / EAN | 4717677338041 |
Price History (last 12 months)
Plots available price points within the past 12 months.
