ASRock B450 PRO4 AM4 ATX DDR4 64 GB Motherboard
| Seller | Shipping | Promo | Price |
|---|---|---|---|
|
- | - | |
|
- | - |
N/A
|
|
- | - |
N/A
|
|
- | - |
N/A
|
* PC Pro Guide may earn a small commission when you buy through links on our site. (Affiliate disclosure)
* Prices and availability can change without notice. The price and stock status displayed on Amazon at the time you complete your purchase are the ones that apply.
Description

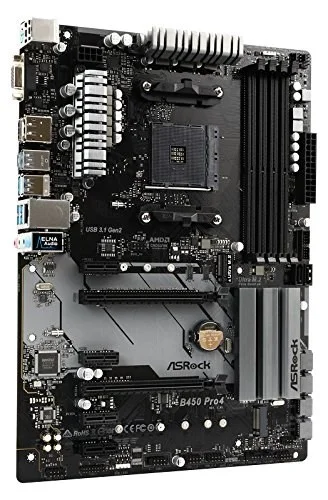

The ASRock B450 PRO4 is a ATX motherboard for AM4. It supports DDR4 memory up to 3200 MT/s (OC).
- Socket AM4, Digi Power design, 9 Power Phase design, Supports 105W Water Cooling (Pinnacle Ridge); Supports 95W Water Cooling (Summit Ridge); Supports 65W Water Cooling (Raven Ridge)
- Chipset: AMD Promontory B450
- Memory: 4x DDR4-3200+(OC)/2933/2667/2400/2133 DIMM Slots, Dual Channel, ECC, Non-ECC, Unbuffered, Max Capacity of 64GB (AMD Ryzen series CPUs (Pinnacle Ridge))
- Slots: 4x PCI-Express 3.0 x16 Slots (one runs at x8, two run at x4), 4x PCI Express 2.0 x1 Slots
- SATA: 4x SATA3 Ports, Support RAID 0, 1, 10, NCQ, AHCI and Hot Plug; 2x SATA3 Ports by AS Media ASM1061, supports NCQ, AHCI and Hot Plug
Specifications
| Manufacturer | ASRock |
|---|---|
| Model Number | B450 PRO4 90-MXB8B0-A0UAYZ |
| Launch Date | |
| CPU Socket | AMD Socket AM4 |
| Chipset Model | Intel B450 |
| Board Size / Form Factor | ATX |
| Supported Memory Type | DDR4 |
| DIMM Slots | 4 |
| Maximum RAM Capacity | 64 GB |
| Valid DDR4 Speeds | DDR4-2133 / DDR4-2400 / DDR4-2666 / DDR4-2933 / DDR4-3200 (OC) |
| ECC Memory Support | No |
| Expansion Slots (PCIe) | 2 × PCIe x16, 4 × PCIe x1 |
| PCIe x16 (Qty) | 2 |
| PCIe x4 (Qty) | 0 |
| PCIe x1 (Qty) | 4 |
| M.2 Slot Count | 2 × M.2 |
| M.2 Device Compatibility | 2242 / 2260 / 2280 - M Key, 2242 / 2260 / 2280 / 22110 - M Key |
| SATA III Ports | 6 × SATA 6Gbps |
| SATA Express Ports | 0 |
| Wired Networking (LAN) | |
| Onboard Wi-Fi | No |
| Wi-Fi Standard | |

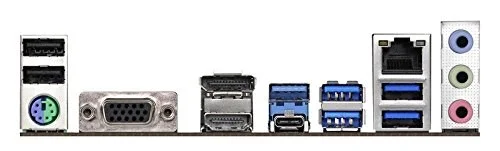

| Rear-Panel USB | USB 3.2 Gen1, USB 2.0 |
| Internal USB 3.2 Gen 2x2 Headers | 0 |
| Internal USB 3.2 Gen 2 Headers | 0 |
| Internal USB 3.2 Gen 1 Headers | 1 |
| Internal USB 2.0 Headers | 2 |
| NVIDIA SLI | No |
| AMD CrossFire | Yes |
| RAID Capability | Yes |
| Back-Connect Layout | No |
| Manufacturer Part Number (MPN) | B450 PRO4 |
| SKU Code | B450 PRO4 |
| GTIN / EAN | 4717677336252 |
