ASRock B450M-HDV R4.0 AM4 Micro-ATX DDR4 32 GB Motherboard
| Seller | Shipping | Promo | Price |
|---|---|---|---|
|
- | - | |
|
- | - |
N/A
|
|
- | - |
N/A
|
|
- | - |
N/A
|
* PC Pro Guide may earn a small commission when you buy through links on our site. (Affiliate disclosure)
* Prices and availability can change without notice. The price and stock status displayed on Amazon at the time you complete your purchase are the ones that apply.
Description

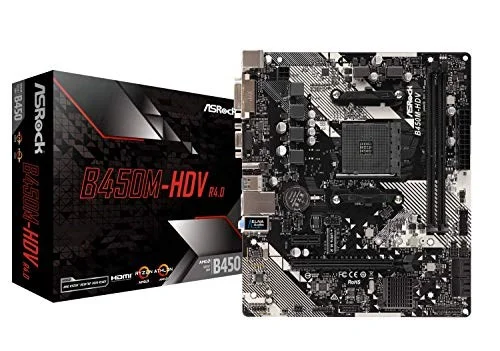

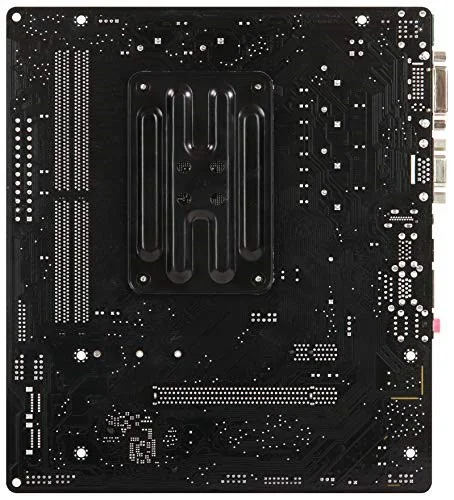

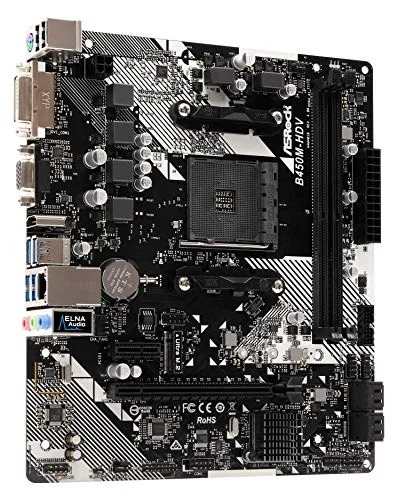

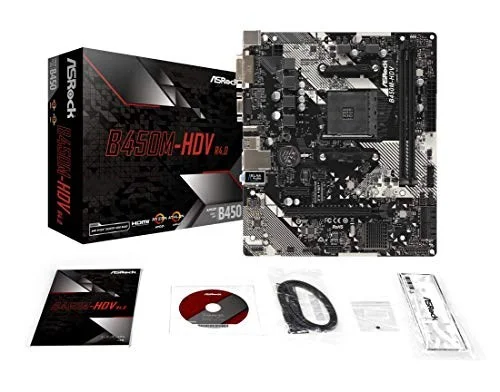

The ASRock B450M-HDV R4.0 is a Micro-ATX motherboard for AM4. It supports DDR4 memory up to 3200 MT/s (OC).
- Cup: socket AM4, 6 power Phase design, supports CPU up to 105W
- Chipset: AMD Promontory B450
- Slots: 3x PCI-Express 3.0 x16 Slots (one runs at x8, one runs at x4), 1x PCI Express 2.0 x1 Slot
- Audio: Relate ALC887 7.1-Channel High Definition Audio CODEC
- LAN: Relate RTL8111H PCIE x1 Gigabit Ethernet Controller
Specifications
| Manufacturer | ASRock |
|---|---|
| Model Number | B450M-HDV R4.0 90-MXB9N0-A0UAYZ |
| Launch Date | February 2019 |
| CPU Socket | AMD Socket AM4 |
| Chipset Model | Intel B450 |
| Board Size / Form Factor | Micro-ATX |
| Supported Memory Type | DDR4 |
| DIMM Slots | 2 |
| Maximum RAM Capacity | 32 GB |
| Valid DDR4 Speeds | DDR4-2133 / DDR4-2400 / DDR4-2666 / DDR4-2933 / DDR4-3200 (OC) |
| ECC Memory Support | No |
| Expansion Slots (PCIe) | 1 × PCIe x16, 1 × PCIe x1 |
| PCIe x16 (Qty) | 1 |
| PCIe x4 (Qty) | 0 |
| PCIe x1 (Qty) | 1 |
| M.2 Slot Count | 1 × M.2 |
| M.2 Device Compatibility | 2242 / 2260 / 2280 - M Key |
| SATA III Ports | 4 × SATA 6Gbps |
| SATA Express Ports | 0 |
| Wired Networking (LAN) | |
| Onboard Wi-Fi | No |
| Wi-Fi Standard | |
| Rear-Panel USB | USB 3.2 Gen1, USB 2.0 |
| Internal USB 3.2 Gen 2x2 Headers | 0 |
| Internal USB 3.2 Gen 2 Headers | 0 |
| Internal USB 3.2 Gen 1 Headers | 1 |
| Internal USB 2.0 Headers | 2 |
| NVIDIA SLI | No |
| AMD CrossFire | No |
| RAID Capability | Yes |
| Back-Connect Layout | No |
| Manufacturer Part Number (MPN) | B450M-HDV R4.0 |
| SKU Code | B450M-HDV R4.0 |
| GTIN / EAN | 4717677337617 |
