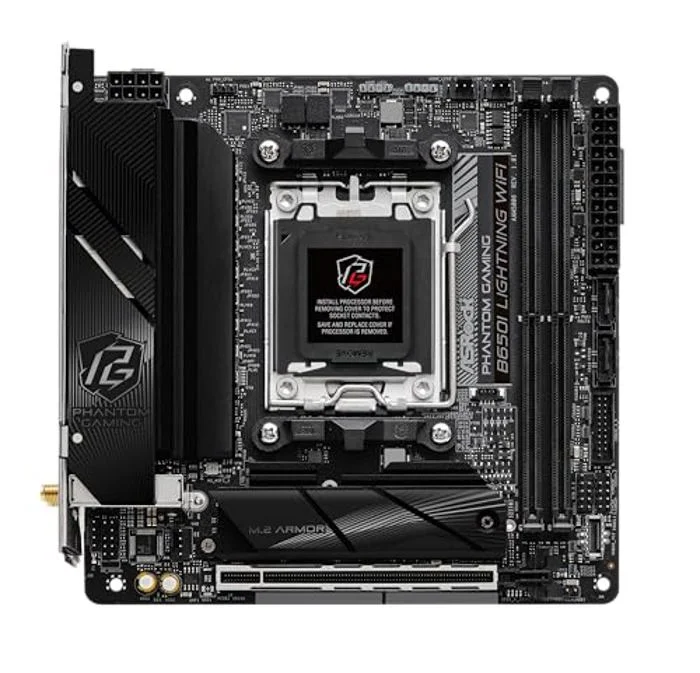

ASRock B650I Lightning Wifi AM5 Mini-ITX DDR5 128 GB Motherboard
* PC Pro Guide may earn a small commission when you buy through links on our site. (Affiliate disclosure)
* Prices and availability can change without notice. The price and stock status displayed on Amazon at the time you complete your purchase are the ones that apply.
Description
The ASRock B650I Lightning Wifi is a Mini-ITX motherboard for AM5. It supports DDR5 memory up to 7200 MT/s (OC).
- ASRock B650I LIGHTNING WIFI AM5 Ryzen 7000 AMD B650 SATA 6Gb/s Mini-ITX s DDR5 7200+ (OC) 2.5G LAN x WiFi 6E + Bluetooth Motherboards - AMD Number of Memory Slots: Dual Channel DDR5 Memory Technology - 2 x DDR5 DIMM Slots - Supports DDR5 non-ECC, un-buffered memory up to 7200+(OC)* - Max. capacity of system memory: 96GB - Supports Extreme Memory Profile (XMP) and EXTended Profiles for Overclocking (EXPO) memory modules Memory Standard: DDR5 6400 Audio Channels: 7.1 CH HD Audio (Realtek ALC897 Audio Codec) - Nahimic Audio Max LAN Speed: 2.5 Gigabit LAN 10/100/1000/2500 Mb/s - Dragon RTL8125BG
Specifications
| Manufacturer | ASRock |
|---|---|
| Model Number | B650I Lightning Wifi 90-MXBMP0-A0UAYZ |
| Launch Date | |
| CPU Socket | AM5 |
| Chipset Model | Intel B650 |
| Board Size / Form Factor | Mini-ITX |
| Supported Memory Type | DDR5 |
| DIMM Slots | 2 |
| Maximum RAM Capacity | 128 GB |
| Valid DDR4 Speeds | DDR5-4800 / DDR5-5200 / DDR5-5600 / DDR5-6000 / DDR5-6200 / DDR5-6400 / DDR5-6600 / DDR5-6800 / DDR5-7000 / DDR5-7200 (OC) |
| ECC Memory Support | No |
| Expansion Slots (PCIe) | 1 × PCIe x16 |
| PCIe x16 (Qty) | 1 |
| PCIe x4 (Qty) | 0 |
| PCIe x1 (Qty) | 0 |
| M.2 Slot Count | 3 × M.2 |
| M.2 Device Compatibility | 2280 - M Key, 2280 - M Key, 2230 - E Key |
| SATA III Ports | 2 × SATA 6Gbps |
| SATA Express Ports | 0 |
| Wired Networking (LAN) | 2.5GbE LAN |
| Onboard Wi-Fi | Yes |
| Wi-Fi Standard | 6E (802.11ax, 6 GHz) |

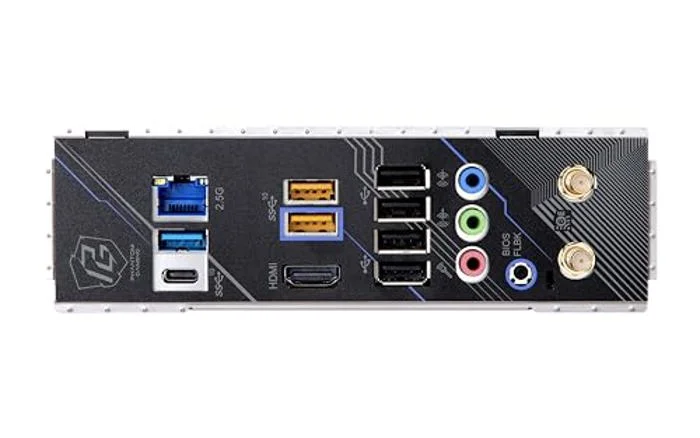

| Rear-Panel USB | USB 3.2 Gen2, USB 3.2 Gen1, USB 2.0 |
| Internal USB 3.2 Gen 2x2 Headers | 0 |
| Internal USB 3.2 Gen 2 Headers | 1 |
| Internal USB 3.2 Gen 1 Headers | 1 |
| Internal USB 2.0 Headers | 1 |
| NVIDIA SLI | No |
| AMD CrossFire | No |
| RAID Capability | Yes |
| Back-Connect Layout | No |
| Manufacturer Part Number (MPN) | B650I Lightning Wifi |
| SKU Code | B650I Lightning Wifi |
| GTIN / EAN | 4710483944253 |
Price History (last 12 months)
Plots available price points within the past 12 months.
