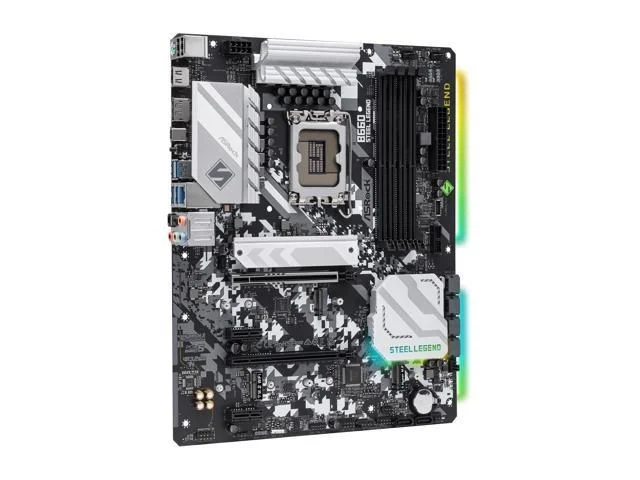

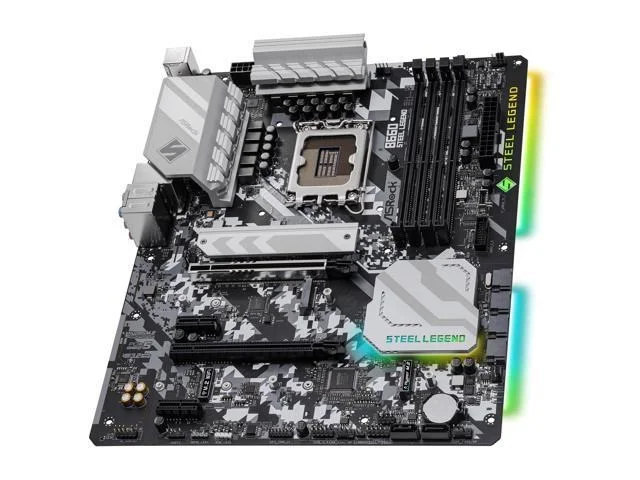

ASRock B660 Steel Legend LGA1700 ATX DDR4 128 GB Motherboard
| Seller | Shipping | Promo | Price |
|---|---|---|---|
|
- | - |
N/A
|
|
- | - |
N/A
|
|
- | - |
N/A
|
|
£45.16 | - |
* PC Pro Guide may earn a small commission when you buy through links on our site. (Affiliate disclosure)
* Prices and availability can change without notice. The price and stock status displayed on Amazon at the time you complete your purchase are the ones that apply.
Description

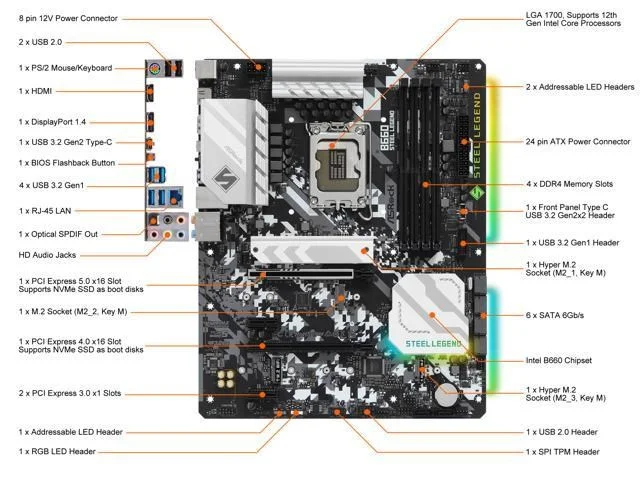

The ASRock B660 Steel Legend is a ATX motherboard for LGA1700. It supports DDR4 memory up to 4800 MT/s (OC).
- Supports 12th Gen Intel Core Processors (LGA1700)
- 9 Phase Dr.MOS Power Design
- Supports DDR4 5000MHz (OC)
- 1 PCIe 5.0 x16, 1 PCIe 4.0 x16, 2 PCIe 3.0 x1
- 1 M.2 Key-E for WiFi
- Graphics Output Options: HDMI, DisplayPort
- Realtek ALC897 7.1 CH HD Audio Codec, Nahimic Audio
- 6 SATA3
Specifications
| Manufacturer | ASRock |
|---|---|
| Model Number | B660 Steel Legend |
| Launch Date | |
| CPU Socket | LGA1700 |
| Chipset Model | Intel B660 |
| Board Size / Form Factor | ATX |
| Supported Memory Type | DDR4 |
| DIMM Slots | 4 |
| Maximum RAM Capacity | 128 GB |
| Valid DDR4 Speeds | DDR4-2133 / DDR4-2400 / DDR4-2666 / DDR4-2933 / DDR4-3000 / DDR4-3200 / DDR4-3600 / DDR4-3733 / DDR4-3800 / DDR4-4000 / DDR4-4200 / DDR4-4266 / DDR4-4400 / DDR4-4600 / DDR4-4800 (OC) |
| ECC Memory Support | No |
| Expansion Slots (PCIe) | 2 × PCIe x16, 2 × PCIe x1 |
| PCIe x16 (Qty) | 2 |
| PCIe x4 (Qty) | 0 |
| PCIe x1 (Qty) | 2 |
| M.2 Slot Count | 4 × M.2 |
| M.2 Device Compatibility | 2260 / 2280 - M Key, 2260 / 2280 - M Key, 2260 / 2280 / 22110 - M Key, 2230 - E Key |
| SATA III Ports | 6 × SATA 6Gbps |
| SATA Express Ports | 0 |
| Wired Networking (LAN) | |
| Onboard Wi-Fi | No |
| Wi-Fi Standard | |
| Rear-Panel USB | USB 3.2 Gen2x2, USB 3.2 Gen1, USB 2.0 |
| Internal USB 3.2 Gen 2x2 Headers | 1 |
| Internal USB 3.2 Gen 2 Headers | 0 |
| Internal USB 3.2 Gen 1 Headers | 1 |
| Internal USB 2.0 Headers | 1 |
| NVIDIA SLI | No |
| AMD CrossFire | No |
| RAID Capability | Yes |
| Back-Connect Layout | No |
| Manufacturer Part Number (MPN) | B660 Steel Legend |
| SKU Code | B660 Steel Legend |
| GTIN / EAN | 4710483937057 |
Price History (last 12 months)
Plots available price points within the past 12 months.
