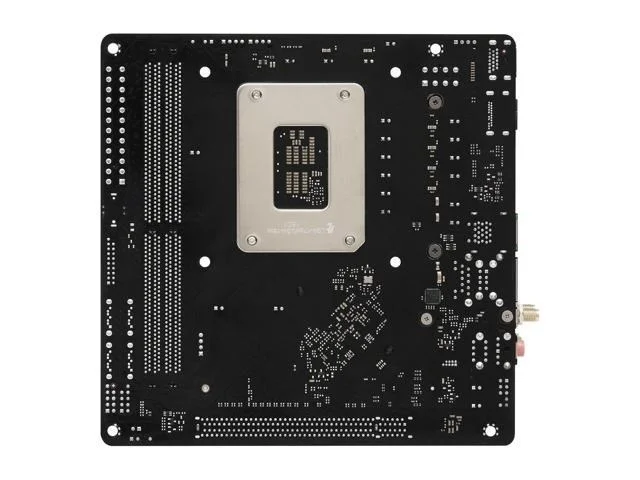

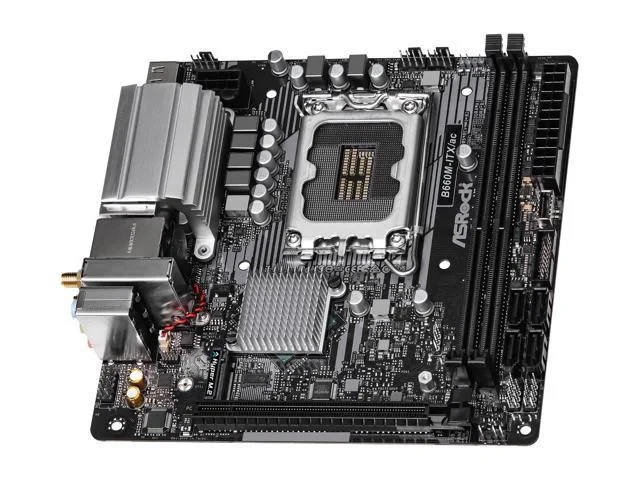

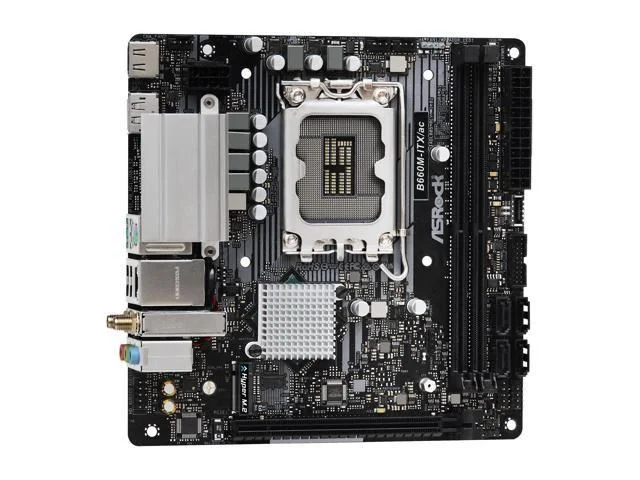

ASRock B660M-ITX/ac LGA1700 Mini-ITX DDR4 64 GB Motherboard
| Seller | Shipping | Promo | Price |
|---|---|---|---|
|
- | - |
N/A
|
|
- | - |
N/A
|
|
- | - |
N/A
|
|
£45.73 | - |
* PC Pro Guide may earn a small commission when you buy through links on our site. (Affiliate disclosure)
* Prices and availability can change without notice. The price and stock status displayed on Amazon at the time you complete your purchase are the ones that apply.
Description

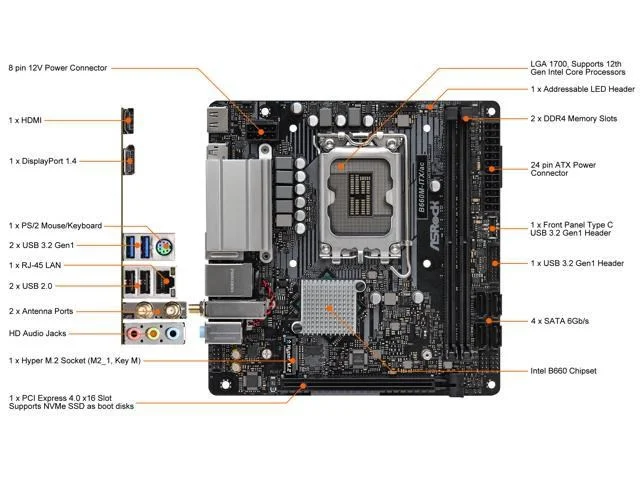

The ASRock B660M-ITX/ac is a Mini-ITX motherboard for LGA1700. It supports DDR4 memory up to 4800 MT/s (OC).
- Supports 12th Gen Intel Core Processors (LGA1700)
- 6 Phase Dr.MOS Power Design
- Supports DDR4 5000MHz (OC)
- 1 PCIe 4.0 x16
- Graphics Output Options: HDMI, DisplayPort
- Realtek ALC897 7.1 CH HD Audio Codec
- 4 SATA3
- 1 Hyper M.2 (PCIe Gen4 x4 & SATA3)
- 5 USB 3.2 Gen1 (2 Front, 2 Rear, 1 Front Type-C)
- 4 Rear USB 2.0 (2 Front, 2 Rear)
Specifications
| Manufacturer | ASRock |
|---|---|
| Model Number | B660M-ITX/ac |
| Launch Date | |
| CPU Socket | LGA1700 |
| Chipset Model | Intel B660 |
| Board Size / Form Factor | Mini-ITX |
| Supported Memory Type | DDR4 |
| DIMM Slots | 2 |
| Maximum RAM Capacity | 64 GB |
| Valid DDR4 Speeds | DDR4-2133 / DDR4-2400 / DDR4-2666 / DDR4-2933 / DDR4-3000 / DDR4-3200 / DDR4-3400 / DDR4-3466 / DDR4-3600 / DDR4-3733 / DDR4-3800 / DDR4-4000 / DDR4-4200 / DDR4-4266 / DDR4-4400 / DDR4-4600 / DDR4-4800 (OC) |
| ECC Memory Support | No |
| Expansion Slots (PCIe) | 1 × PCIe x16 |
| PCIe x16 (Qty) | 1 |
| PCIe x4 (Qty) | 0 |
| PCIe x1 (Qty) | 0 |
| M.2 Slot Count | 2 × M.2 |
| M.2 Device Compatibility | 2280 - M Key, 2230 - E Key |
| SATA III Ports | 4 × SATA 6Gbps |
| SATA Express Ports | 0 |
| Wired Networking (LAN) | |
| Onboard Wi-Fi | Yes |
| Wi-Fi Standard | 5 |

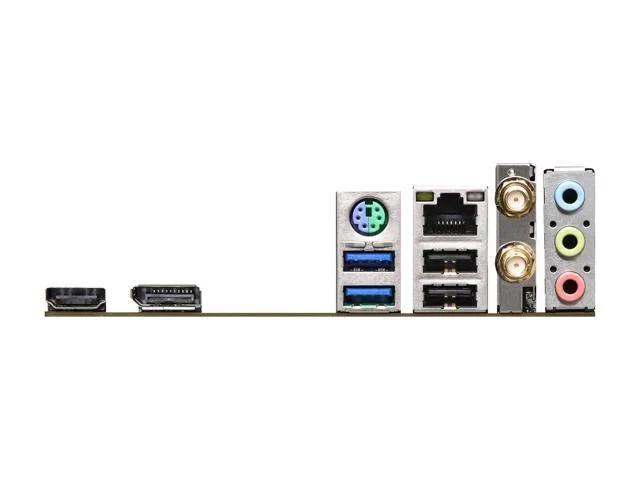

| Rear-Panel USB | USB 3.2 Gen2, USB 3.2 Gen1, USB 2.0 |
| Internal USB 3.2 Gen 2x2 Headers | 0 |
| Internal USB 3.2 Gen 2 Headers | 1 |
| Internal USB 3.2 Gen 1 Headers | 1 |
| Internal USB 2.0 Headers | 1 |
| NVIDIA SLI | No |
| AMD CrossFire | No |
| RAID Capability | Yes |
| Back-Connect Layout | No |
| Manufacturer Part Number (MPN) | B660M-ITX/ac |
| SKU Code | B660M-ITX/ac |
| GTIN / EAN | 4710483936920 |
