ASRock B660M Phantom Gaming 4 LGA1700 Micro-ATX DDR4 128 GB Motherboard
| Seller | Shipping | Promo | Price |
|---|---|---|---|
|
- | - |
N/A
|
|
- | - |
N/A
|
|
- | - |
N/A
|
|
£45.74 | - |
* PC Pro Guide may earn a small commission when you buy through links on our site. (Affiliate disclosure)
* Prices and availability can change without notice. The price and stock status displayed on Amazon at the time you complete your purchase are the ones that apply.
Description

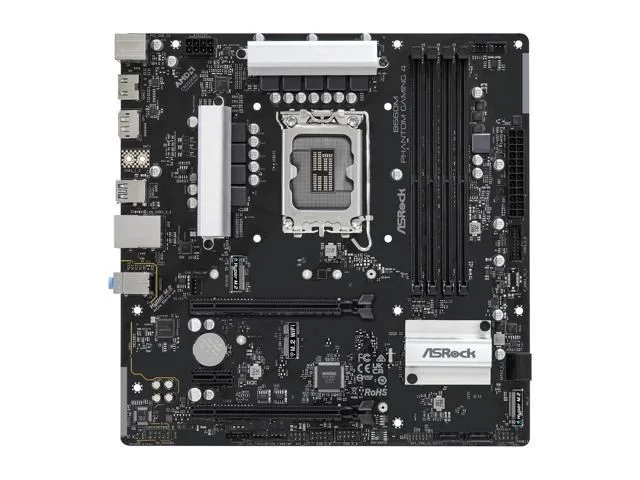

The ASRock B660M Phantom Gaming 4 is a Micro-ATX motherboard for LGA1700. It supports DDR4 memory up to 4800 MT/s (OC).

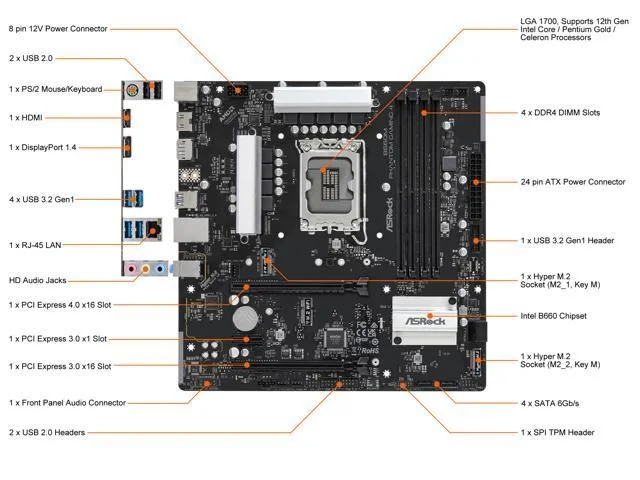

- Supports 12th Gen Intel Core Processors (LGA1700)
- 9 Phase Dr.MOS Power Design
- Supports DDR4 4800MHz (OC)
- 1 PCIe 4.0 x16, 1 PCIe 3.0 x16, 1 PCIe 3.0 x1
- 1 M.2 Key-E for WiFi
- Graphics Output Options: HDMI, DisplayPort
- Realtek ALC897 7.1 CH HD Audio Codec, Nahimic Audio
- 4 SATA3
- 2 Hyper M.2 (PCIe Gen4 x4)
Specifications
| Manufacturer | ASRock |
|---|---|
| Model Number | B660M Phantom Gaming 4 |
| Launch Date | |
| CPU Socket | LGA1700 |
| Chipset Model | Intel B660 |
| Board Size / Form Factor | Micro-ATX |
| Supported Memory Type | DDR4 |
| DIMM Slots | 4 |
| Maximum RAM Capacity | 128 GB |
| Valid DDR4 Speeds | DDR4-2133 / DDR4-2400 / DDR4-2666 / DDR4-2933 / DDR4-3000 / DDR4-3200 / DDR4-3466 / DDR4-3600 / DDR4-3733 / DDR4-3800 / DDR4-4000 / DDR4-4200 / DDR4-4266 / DDR4-4600 / DDR4-4800 (OC) |
| ECC Memory Support | No |
| Expansion Slots (PCIe) | 2 × PCIe x16, 1 × PCIe x1 |
| PCIe x16 (Qty) | 2 |
| PCIe x4 (Qty) | 0 |
| PCIe x1 (Qty) | 1 |
| M.2 Slot Count | 3 × M.2 |
| M.2 Device Compatibility | 2242 / 2260 / 2280 - M Key, 2280 - M Key, 2230 - E Key |
| SATA III Ports | 4 × SATA 6Gbps |
| SATA Express Ports | 0 |
| Wired Networking (LAN) | |
| Onboard Wi-Fi | No |
| Wi-Fi Standard | |
| Rear-Panel USB | USB 3.2 Gen1, USB 2.0 |
| Internal USB 3.2 Gen 2x2 Headers | 0 |
| Internal USB 3.2 Gen 2 Headers | 0 |
| Internal USB 3.2 Gen 1 Headers | 1 |
| Internal USB 2.0 Headers | 2 |
| NVIDIA SLI | No |
| AMD CrossFire | Yes |
| RAID Capability | Yes |
| Back-Connect Layout | No |
| Manufacturer Part Number (MPN) | B660M Phantom Gaming 4 |
| SKU Code | B660M Phantom Gaming 4 |
| GTIN / EAN | 4710483937064 |
