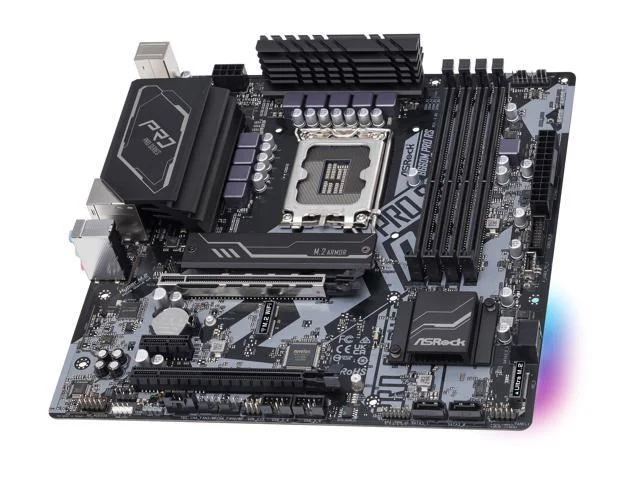

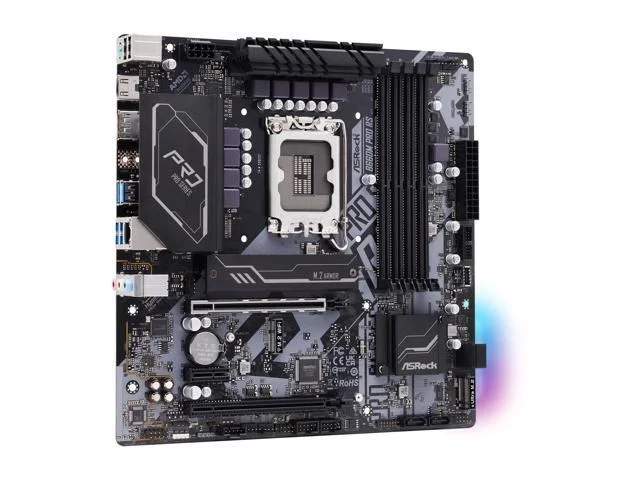

ASRock B660M Pro RS LGA1700 Micro-ATX DDR4 128 GB Motherboard
* PC Pro Guide may earn a small commission when you buy through links on our site. (Affiliate disclosure)
* Prices and availability can change without notice. The price and stock status displayed on Amazon at the time you complete your purchase are the ones that apply.
Description
The ASRock B660M Pro RS is a Micro-ATX motherboard for LGA1700. It supports DDR4 memory up to 4800 MT/s (OC).
- ASRock B660M PRO RS LGA 1700 Intel B660 SATA 6Gb/s DDR4 Micro ATX Motherboard Memory Standard: DDR4 up to 4800+(OC)* * Supports DDR4 3200 natively. Number of Memory Slots: 4×288pin Audio Chipset: Realtek ALC897 PCI Express 4.0 x16: 1 x PCI Express 4.0 x16* * Supports NVMe SSD as boot disks PCI Express 3.0 x16: 1 x PCI Express 3.0 x16* * Supports NVMe SSD as boot disks. Onboard Video Chipset: Supported only by CPU with integrated graphic Max LAN Speed: 10/100/1000Mbps CPU Type: Supports 12th Gen Intel Core Processors

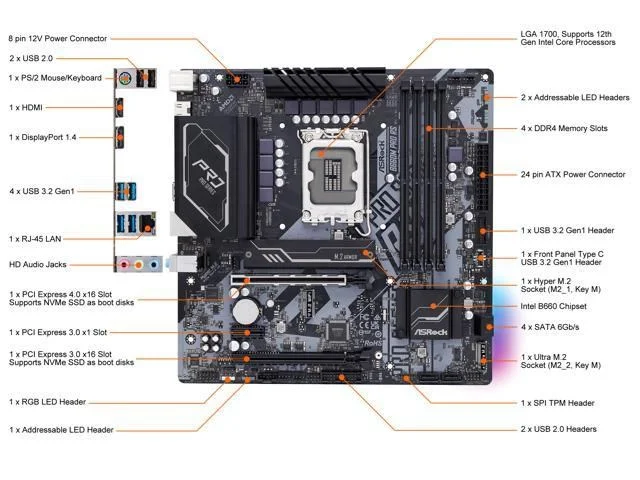

Specifications
| Manufacturer | ASRock |
|---|---|
| Model Number | B660M Pro RS |
| Launch Date | |
| CPU Socket | LGA1700 |
| Chipset Model | Intel B660 |
| Board Size / Form Factor | Micro-ATX |
| Supported Memory Type | DDR4 |
| DIMM Slots | 4 |
| Maximum RAM Capacity | 128 GB |
| Valid DDR4 Speeds | DDR4-2133 / DDR4-2400 / DDR4-2666 / DDR4-2933 / DDR4-3000 / DDR4-3200 / DDR4-3466 / DDR4-3600 / DDR4-3733 / DDR4-3800 / DDR4-4000 / DDR4-4200 / DDR4-4266 / DDR4-4600 / DDR4-4800 (OC) |
| ECC Memory Support | No |
| Expansion Slots (PCIe) | 2 × PCIe x16, 1 × PCIe x1 |
| PCIe x16 (Qty) | 2 |
| PCIe x4 (Qty) | 0 |
| PCIe x1 (Qty) | 1 |
| M.2 Slot Count | 3 × M.2 |
| M.2 Device Compatibility | 2242 / 2260 / 2280 - M Key, 2280 - M Key, 2230 - E Key |
| SATA III Ports | 4 × SATA 6Gbps |
| SATA Express Ports | 0 |
| Wired Networking (LAN) | |
| Onboard Wi-Fi | No |
| Wi-Fi Standard | |

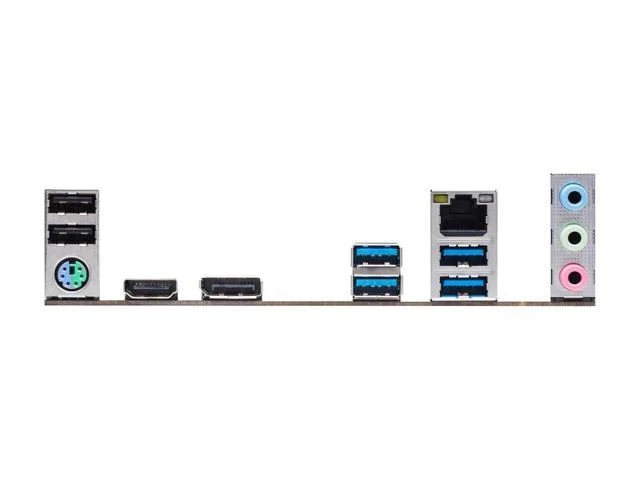

| Rear-Panel USB | USB 3.2 Gen2, USB 3.2 Gen1, USB 2.0 |
| Internal USB 3.2 Gen 2x2 Headers | 0 |
| Internal USB 3.2 Gen 2 Headers | 1 |
| Internal USB 3.2 Gen 1 Headers | 1 |
| Internal USB 2.0 Headers | 2 |
| NVIDIA SLI | No |
| AMD CrossFire | Yes |
| RAID Capability | Yes |
| Back-Connect Layout | No |
| Manufacturer Part Number (MPN) | B660M Pro RS |
| SKU Code | B660M Pro RS |
| GTIN / EAN | 4710483936524 |
