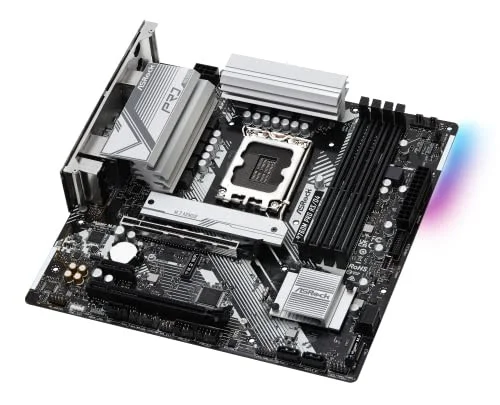

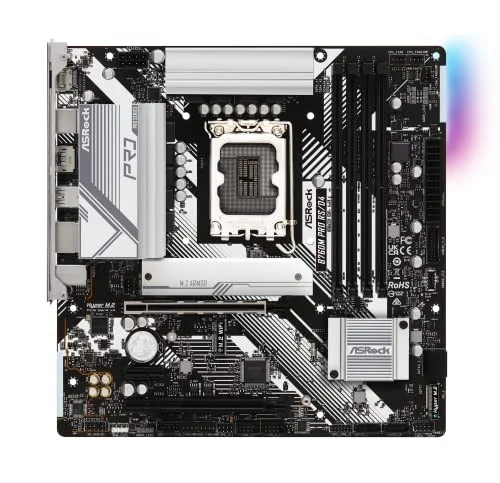

ASRock B760M Pro RS/D4 LGA1700 Micro-ATX DDR4 128 GB Motherboard
* PC Pro Guide may earn a small commission when you buy through links on our site. (Affiliate disclosure)
* Prices and availability can change without notice. The price and stock status displayed on Amazon at the time you complete your purchase are the ones that apply.
Description
The ASRock B760M Pro RS/D4 is a Micro-ATX motherboard for LGA1700. It supports DDR4 memory up to 5333 MT/s (OC).
- ASRock B760M Pro RS LGA 1700 DDR4 Micro ATX Motherboard Memory Standard: DDR4 3200 Number of Memory Slots: 4x288pin (DDR4) Audio Chipset: Realtek ALC897 PCI Express 4.0 x16: CPU: 1 x PCIe 4.0 x16 Slot (PCIE1), supports x16 mode* Chipset: 1 x PCIe 4.0 x16 Slot (PCIE3), supports x4 mode* Max LAN Speed: 2.5Gbps CPU Type: Intel Core 12th Gen (LGA 1700) / Intel Core 13th Gen (LGA 1700) Maximum Memory Supported: 128GB Channel Supported: Dual Channel
Specifications
| Manufacturer | ASRock |
|---|---|
| Model Number | B760M Pro RS/D4 |
| Launch Date | |
| CPU Socket | LGA1700 |
| Chipset Model | Intel B760 |
| Board Size / Form Factor | Micro-ATX |
| Supported Memory Type | DDR4 |
| DIMM Slots | 4 |
| Maximum RAM Capacity | 128 GB |
| Valid DDR4 Speeds | DDR4-3200 / DDR4-4000 / DDR4-4266 / DDR4-4400 / DDR4-5333 (OC) |
| ECC Memory Support | No |
| Expansion Slots (PCIe) | 2 × PCIe x16, 1 × PCIe x1 |
| PCIe x16 (Qty) | 2 |
| PCIe x4 (Qty) | 0 |
| PCIe x1 (Qty) | 1 |
| M.2 Slot Count | 3 × M.2 |
| M.2 Device Compatibility | 2242 / 2260 / 2280 - M Key, 2280 - M Key, 2230 - E Key |
| SATA III Ports | 4 × SATA 6Gbps |
| SATA Express Ports | 0 |
| Wired Networking (LAN) | |
| Onboard Wi-Fi | No |
| Wi-Fi Standard | |

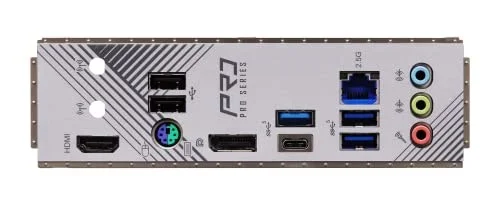

| Rear-Panel USB | USB 3.2 Gen2, USB 3.2 Gen1, USB 2.0 |
| Internal USB 3.2 Gen 2x2 Headers | 0 |
| Internal USB 3.2 Gen 2 Headers | 1 |
| Internal USB 3.2 Gen 1 Headers | 1 |
| Internal USB 2.0 Headers | 2 |
| NVIDIA SLI | No |
| AMD CrossFire | Yes |
| RAID Capability | Yes |
| Back-Connect Layout | No |
| Manufacturer Part Number (MPN) | B760M Pro RS/D4 |
| SKU Code | B760M Pro RS/D4 |
| GTIN / EAN | 4710483941702 |
