ASRock B760M Steel Legend WiFi LGA1700 Micro-ATX DDR5 192 GB Motherboard
* PC Pro Guide may earn a small commission when you buy through links on our site. (Affiliate disclosure)
* Prices and availability can change without notice. The price and stock status displayed on Amazon at the time you complete your purchase are the ones that apply.
Description

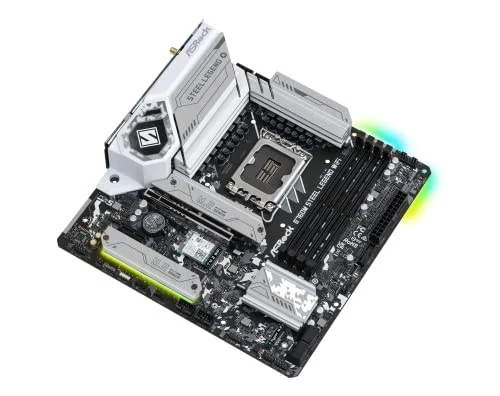

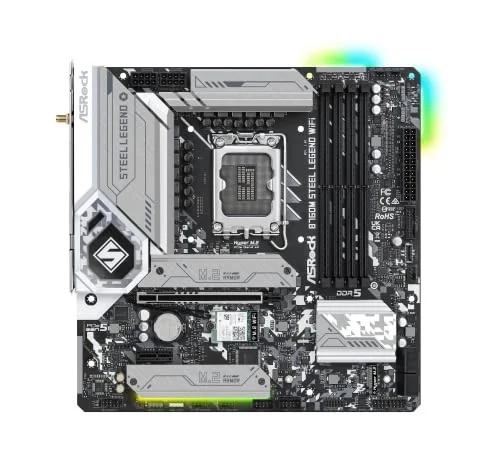

The ASRock B760M Steel Legend WiFi is a Micro-ATX motherboard for LGA1700. It supports DDR5 memory up to 7200 MT/s (OC).
- ASRock B760M Steel Legend WiFi LGA 1700 DDR5 Micro ATX Motherboard Memory Standard: DDR5 4800 Number of Memory Slots: 4x288pin (DDR5) Audio Chipset: Realtek ALC897 PCI Express 5.0 x16: 1 x PCIe 5.0 x16 Slot (PCIE1), supports x16 mode* Max LAN Speed: 2.5Gbps CPU Type: Intel Core 12th Gen (LGA 1700) / Intel Core 13th Gen (LGA 1700) Maximum Memory Supported: 128GB Channel Supported: Dual Channel
Specifications
| Manufacturer | ASRock |
|---|---|
| Model Number | B760M Steel Legend WiFi |
| Launch Date | |
| CPU Socket | LGA1700 |
| Chipset Model | Intel B760 |
| Board Size / Form Factor | Micro-ATX |
| Supported Memory Type | DDR5 |
| DIMM Slots | 4 |
| Maximum RAM Capacity | 192 GB |
| Valid DDR4 Speeds | DDR5-4800 / DDR5-5600 / DDR5-6000 / DDR5-7200 (OC) |
| ECC Memory Support | No |
| Expansion Slots (PCIe) | 1 × PCIe x16, 1 × PCIe x1 |
| PCIe x16 (Qty) | 1 |
| PCIe x4 (Qty) | 0 |
| PCIe x1 (Qty) | 1 |
| M.2 Slot Count | 4 × M.2 |
| M.2 Device Compatibility | 2260 / 2280 - M Key, 2260 / 2280 - M Key, 2260 / 2280 - M Key, 2230 - E Key |
| SATA III Ports | 4 × SATA 6Gbps |
| SATA Express Ports | 0 |
| Wired Networking (LAN) | |
| Onboard Wi-Fi | Yes |
| Wi-Fi Standard | 6E (802.11ax, 6 GHz) |
| Rear-Panel USB | USB 3.2 Gen2, USB 3.2 Gen1, USB 2.0 |
| Internal USB 3.2 Gen 2x2 Headers | 0 |
| Internal USB 3.2 Gen 2 Headers | 1 |
| Internal USB 3.2 Gen 1 Headers | 1 |
| Internal USB 2.0 Headers | 2 |
| NVIDIA SLI | No |
| AMD CrossFire | No |
| RAID Capability | Yes |
| Back-Connect Layout | No |
| Manufacturer Part Number (MPN) | B760M Steel Legend WiFi |
| SKU Code | B760M Steel Legend WiFi |
| GTIN / EAN | 4710483941795 |
Price History (last 12 months)
Plots available price points within the past 12 months.
