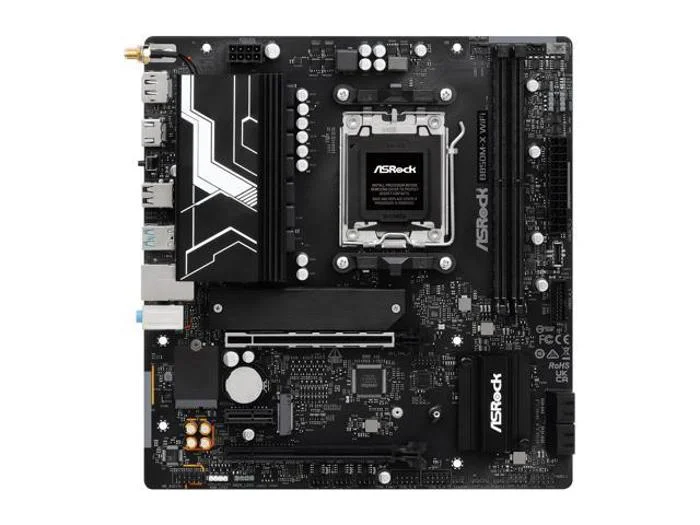

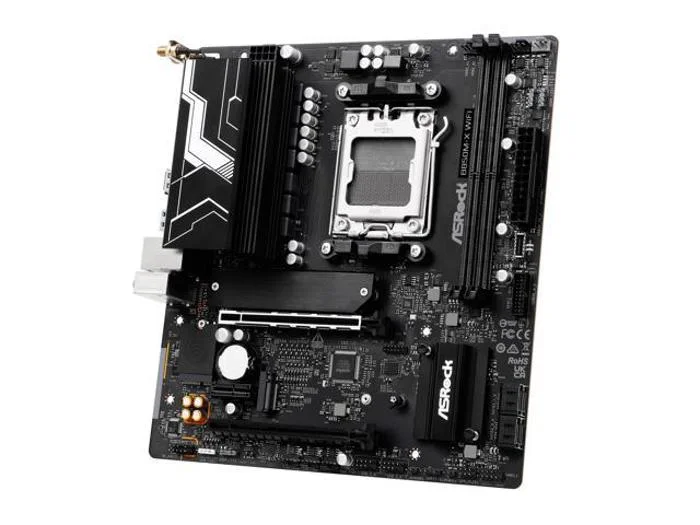

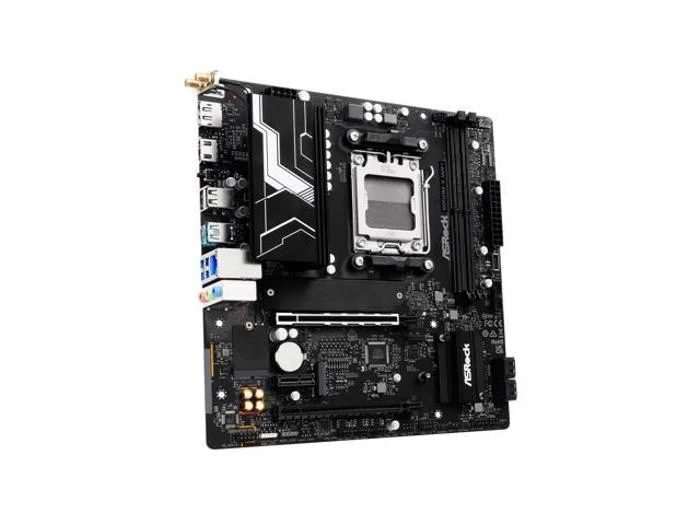

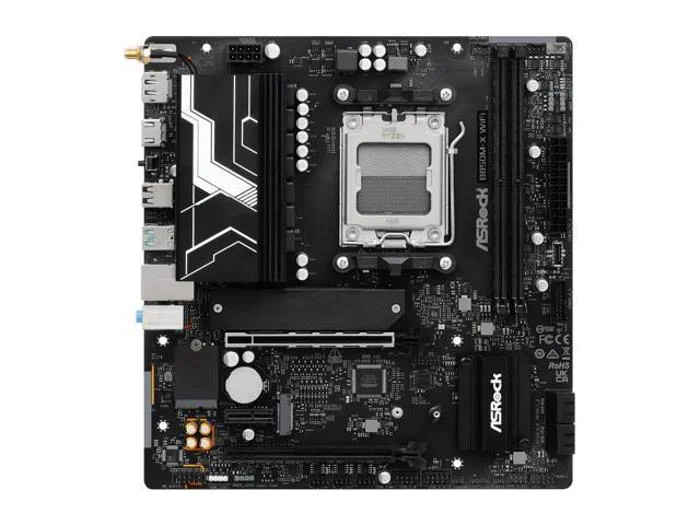

ASRock B850M-X WiFi AM5 Micro-ATX DDR5 128 GB Motherboard
| Seller | Shipping | Promo | Price |
|---|---|---|---|
|
- | - |
N/A
|
|
- | - |
N/A
|
|
- | - |
N/A
|
|
Free | - |
* PC Pro Guide may earn a small commission when you buy through links on our site. (Affiliate disclosure)
* Prices and availability can change without notice. The price and stock status displayed on Amazon at the time you complete your purchase are the ones that apply.
Description
The ASRock B850M-X WiFi is a Micro-ATX motherboard for AM5. It supports DDR5 memory up to 8200 MT/s (OC).
- ASRock B850M-X WiFi AM5 AMD B850 SATA 6Gb/s Micro ATX Motherboard Number of Memory Slots: 2x288pin (DDR5) Memory Standard: Up to 8200+(OC) Audio Chipset: Realtek ALC897 PCI Express x1: 1 x PCIe 4.0 x1 Slot (PCIE2)* * PCIE1 will run at Gen4x16 with 9000 and 7000 series processors, Gen4x8 with 8000 (Phoenix 1) series processors and Gen4x4 with 8000 (Phoenix 2) series processors. * Supports NVMe SSD as boot disks Audio Channels: 7.1 Channels Max LAN Speed: 2.5Gbps Maximum Memory Supported: 128GB Channel Supported: Dual Channel
Specifications
| Manufacturer | ASRock |
|---|---|
| Model Number | B850M-X WiFi |
| Launch Date | January 2025 |
| CPU Socket | AM5 |
| Chipset Model | Intel B850 |
| Board Size / Form Factor | Micro-ATX |
| Supported Memory Type | DDR5 |
| DIMM Slots | 2 |
| Maximum RAM Capacity | 128 GB |
| Valid DDR4 Speeds | DDR5-4400 / DDR5-4800 / DDR5-5200 / DDR5-5600 / DDR5-6000 / DDR5-6200 / DDR5-6400 / DDR5-6600 / DDR5-6800 / DDR5-7000 / DDR5-7200 / DDR5-7600 / DDR5-7800 / DDR5-8000 / DDR5-8200 (OC) |
| ECC Memory Support | No |
| Expansion Slots (PCIe) | 2 × PCIe x16, 1 × PCIe x1 |
| PCIe x16 (Qty) | 2 |
| PCIe x4 (Qty) | 0 |
| PCIe x1 (Qty) | 1 |
| M.2 Slot Count | 3 × M.2 |
| M.2 Device Compatibility | 2280 - M Key, 2260 / 2280 - M Key, 2230 - E Key |
| SATA III Ports | 4 × SATA 6Gbps |
| SATA Express Ports | 0 |
| Wired Networking (LAN) | |
| Onboard Wi-Fi | Yes |
| Wi-Fi Standard | 6E (802.11ax, 6 GHz) |

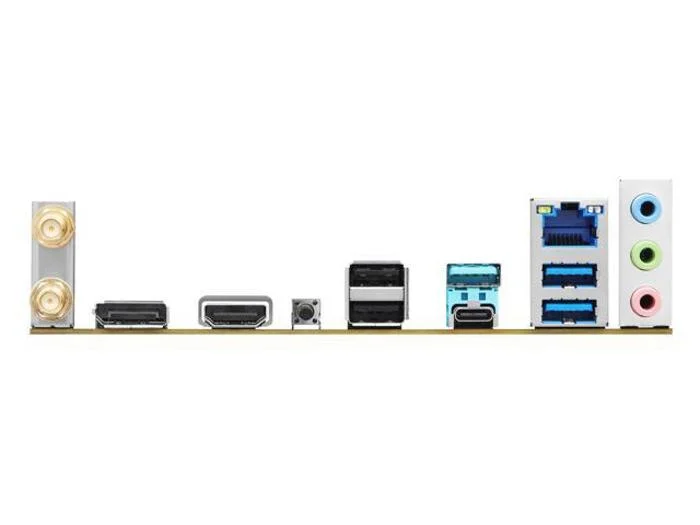

| Rear-Panel USB | USB 3.2 Gen2, USB 3.2 Gen1, USB 2.0 |
| Internal USB 3.2 Gen 2x2 Headers | 0 |
| Internal USB 3.2 Gen 2 Headers | 1 |
| Internal USB 3.2 Gen 1 Headers | 1 |
| Internal USB 2.0 Headers | 2 |
| NVIDIA SLI | No |
| AMD CrossFire | No |
| RAID Capability | Yes |
| Back-Connect Layout | No |
| Manufacturer Part Number (MPN) | B850M-X WiFi |
| SKU Code | B850M-X WiFi |
| GTIN / EAN | 4711581490093 |
