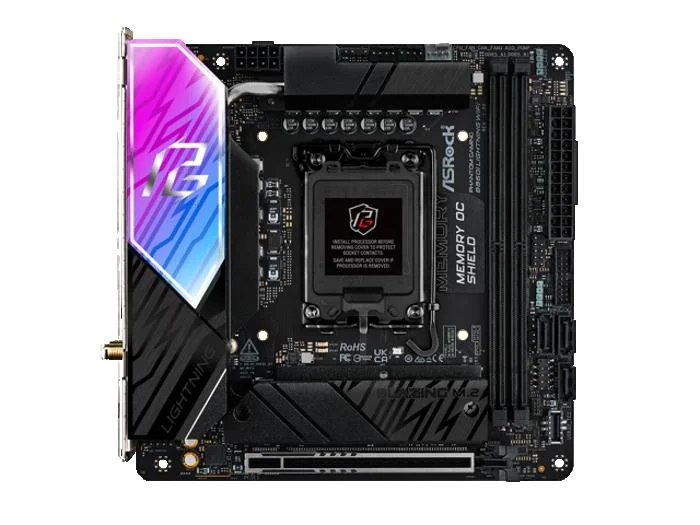

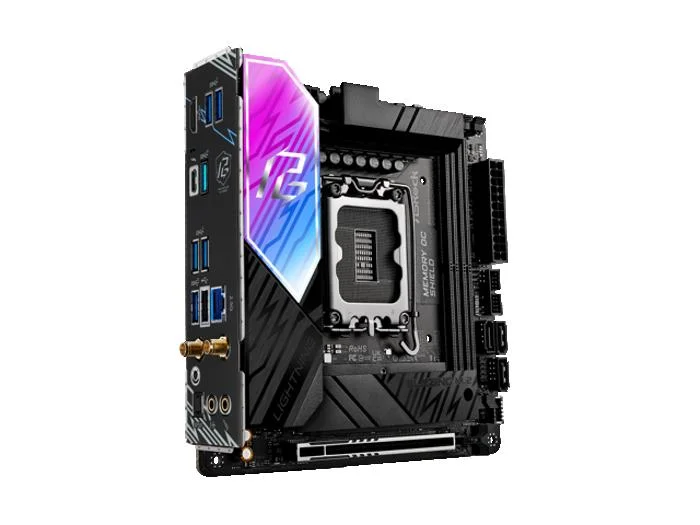

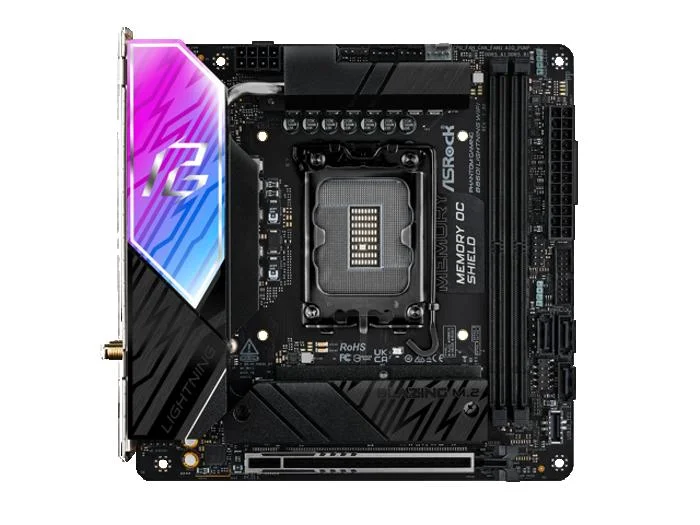

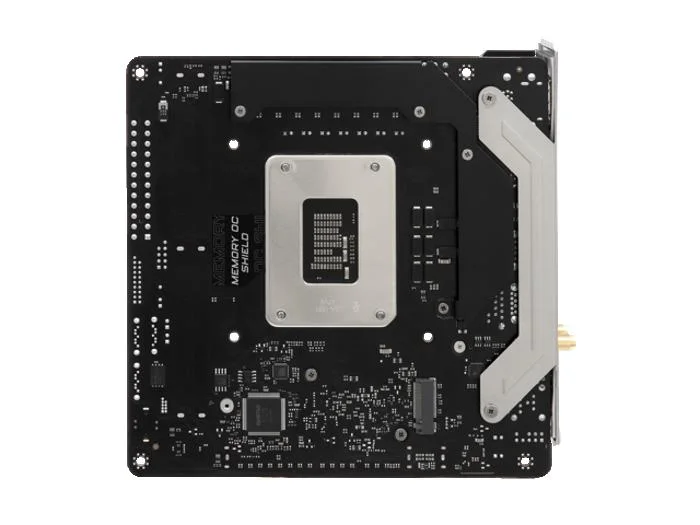

ASRock B860I Lightning WiFi LGA1851 Mini-ITX DDR5 128 GB Motherboard
| Seller | Shipping | Promo | Price |
|---|---|---|---|
|
- | - |
N/A
|
|
- | - |
N/A
|
|
- | - |
N/A
|
|
Free | - |
* PC Pro Guide may earn a small commission when you buy through links on our site. (Affiliate disclosure)
* Prices and availability can change without notice. The price and stock status displayed on Amazon at the time you complete your purchase are the ones that apply.
Description
The ASRock B860I Lightning WiFi is a Mini-ITX motherboard for LGA1851. It supports DDR5 memory up to 9333 MT/s (OC).
- ASRock B860I Lightning WiFi LGA 1851 Intel B860 SATA 6Gb/s Intel Core Ultra DDR5 Mini ITX Motherboard Memory Standard: Up to DDR5 9333+(OC) Number of Memory Slots: 2x288pin (DDR5) Audio Chipset: Realtek ALC1220 PCI Express 5.0 x16: CPU: - 1 x PCIe 5.0 x16 Slot (PCIE1), supports x16 mode* Max LAN Speed: 2.5Gbps CPU Type: Intel Core Ultra Processors (Series 2) Maximum Memory Supported: 128GB Channel Supported: Dual Channel
Specifications
| Manufacturer | ASRock |
|---|---|
| Model Number | B860I Lightning WiFi |
| Launch Date | January 2025 |
| CPU Socket | LGA1851 |
| Chipset Model | Intel B860 |
| Board Size / Form Factor | Mini-ITX |
| Supported Memory Type | DDR5 |
| DIMM Slots | 2 |
| Maximum RAM Capacity | 128 GB |
| Valid DDR4 Speeds | DDR5-4400 / DDR5-7200 / DDR5-7600 / DDR5-7800 / DDR5-8000 / DDR5-8200 / DDR5-8400 / DDR5-8600 / DDR5-8800 / DDR5-9066 / DDR5-9200 / DDR5-9333 (OC) |
| ECC Memory Support | No |
| Expansion Slots (PCIe) | 1 × PCIe x16 |
| PCIe x16 (Qty) | 1 |
| PCIe x4 (Qty) | 0 |
| PCIe x1 (Qty) | 0 |
| M.2 Slot Count | 3 × M.2 |
| M.2 Device Compatibility | 2280 - M Key, 2280 - M Key, 2230 - E Key |
| SATA III Ports | 3 × SATA 6Gbps |
| SATA Express Ports | 0 |
| Wired Networking (LAN) | |
| Onboard Wi-Fi | Yes |
| Wi-Fi Standard | 6E (802.11ax, 6 GHz) |
| Rear-Panel USB | USB 3.2 Gen2, USB 3.2 Gen1, USB 2.0 |
| Internal USB 3.2 Gen 2x2 Headers | 0 |
| Internal USB 3.2 Gen 2 Headers | 1 |
| Internal USB 3.2 Gen 1 Headers | 1 |
| Internal USB 2.0 Headers | 1 |
| NVIDIA SLI | No |
| AMD CrossFire | No |
| RAID Capability | Yes |
| Back-Connect Layout | No |
| Manufacturer Part Number (MPN) | B860I Lightning WiFi |
| SKU Code | B860I Lightning WiFi |
| GTIN / EAN | 4711581490420 |
