ASRock B860M LiveMixer WiFi LGA1851 Micro-ATX DDR5 256 GB Motherboard
* PC Pro Guide may earn a small commission when you buy through links on our site. (Affiliate disclosure)
* Prices and availability can change without notice. The price and stock status displayed on Amazon at the time you complete your purchase are the ones that apply.
Description

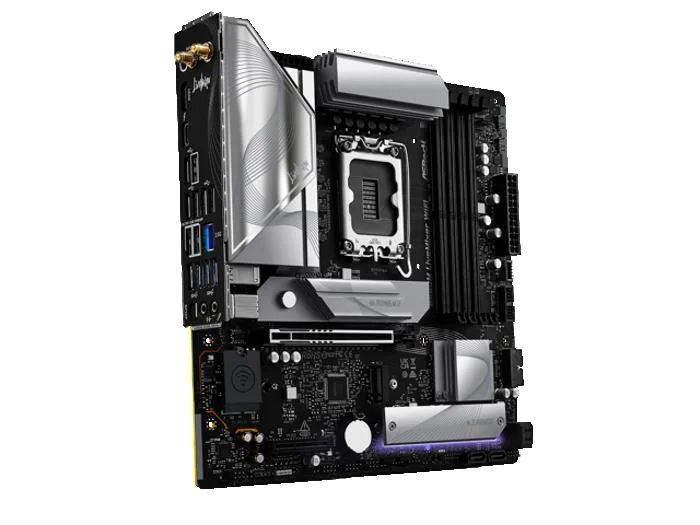

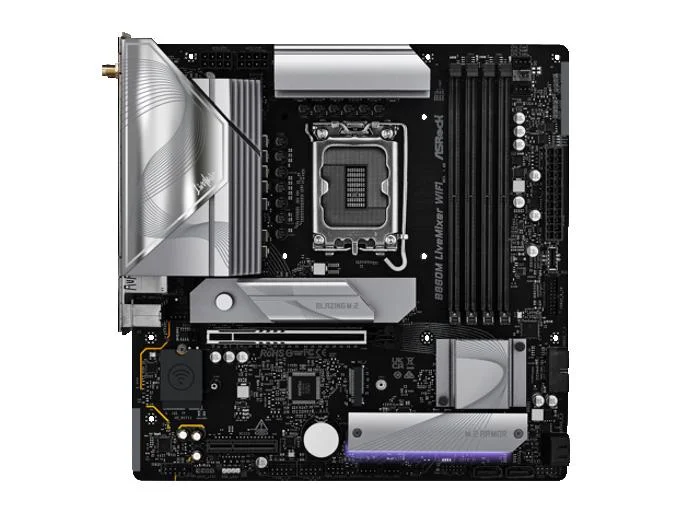

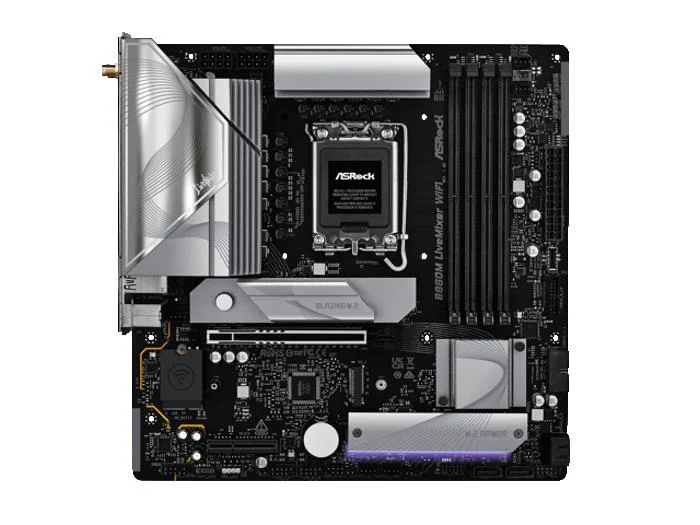

The ASRock B860M LiveMixer WiFi is a Micro-ATX motherboard for LGA1851. It supports DDR5 memory up to 8400 MT/s (OC).
- ASRock B860M LiveMixer WiFi LGA 1851 Intel B860 SATA 6Gb/s Intel Core Ultra Processors DDR5 Micro ATX Motherboard Memory Standard: Up to DDR5 8666+(OC) Number of Memory Slots: 4x288pin (DDR5) Audio Chipset: Realtek ALC1220 PCI Express 5.0 x16: CPU: - 1 x PCIe 5.0 x16 Slot (PCIE1), supports x16 mode* PCI Express 4.0 x16: Chipset: - 1 x PCIe 4.0 x4 Slot (PCIE2), supports x4 mode* * Supports NVMe SSD as boot disks Max LAN Speed: 2.5Gbps CPU Type: Intel Core Ultra Processors (Series 2) Maximum Memory Supported: 256GB
Specifications
| Manufacturer | ASRock |
|---|---|
| Model Number | B860M LiveMixer WiFi B860M Live Mixer WiFi |
| Launch Date | January 2025 |
| CPU Socket | LGA1851 |
| Chipset Model | Intel B860 |
| Board Size / Form Factor | Micro-ATX |
| Supported Memory Type | DDR5 |
| DIMM Slots | 4 |
| Maximum RAM Capacity | 256 GB |
| Valid DDR4 Speeds | DDR5-6400 / DDR5-6800 / DDR5-7000 / DDR5-7200 / DDR5-7600 / DDR5-7800 / DDR5-8000 / DDR5-8200 / DDR5-8400 (OC) |
| ECC Memory Support | No |
| Expansion Slots (PCIe) | 1 × PCIe x16, 1 × PCIe x4 |
| PCIe x16 (Qty) | 1 |
| PCIe x4 (Qty) | 1 |
| PCIe x1 (Qty) | 0 |
| M.2 Slot Count | 4 × M.2 |
| M.2 Device Compatibility | 2280 - M Key, 2280 - M Key, 2280 - M Key, 2230 - E Key |
| SATA III Ports | 4 × SATA 6Gbps |
| SATA Express Ports | 0 |
| Wired Networking (LAN) | |
| Onboard Wi-Fi | Yes |
| Wi-Fi Standard | 6E (802.11ax, 6 GHz) |

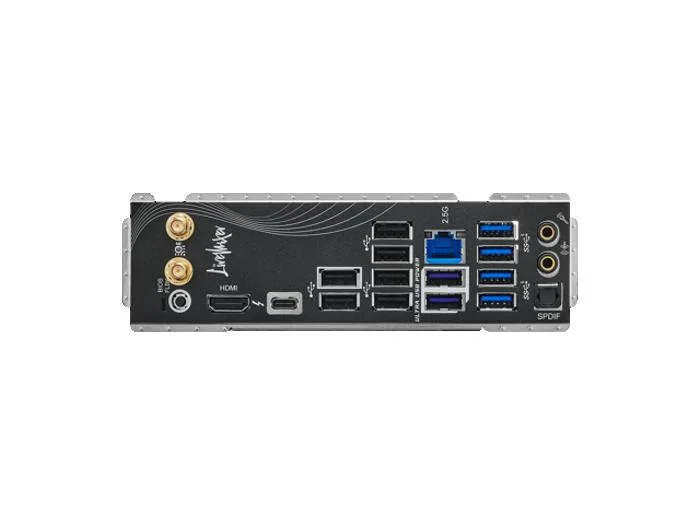

| Rear-Panel USB | USB 3.2 Gen2, USB 3.2 Gen1, USB 2.0 |
| Internal USB 3.2 Gen 2x2 Headers | 0 |
| Internal USB 3.2 Gen 2 Headers | 1 |
| Internal USB 3.2 Gen 1 Headers | 2 |
| Internal USB 2.0 Headers | 2 |
| NVIDIA SLI | No |
| AMD CrossFire | No |
| RAID Capability | Yes |
| Back-Connect Layout | No |
| Manufacturer Part Number (MPN) | B860M LiveMixer WiFi |
| SKU Code | B860M LiveMixer WiFi |
| GTIN / EAN | 4711581490314 |
