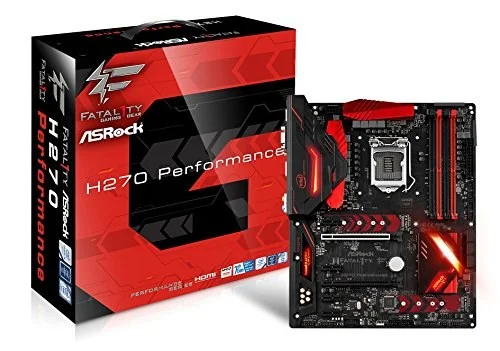

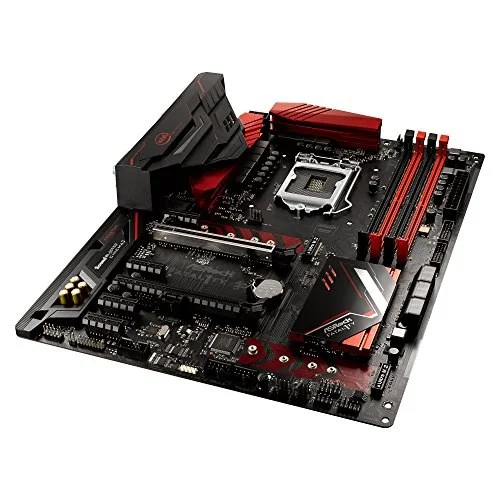

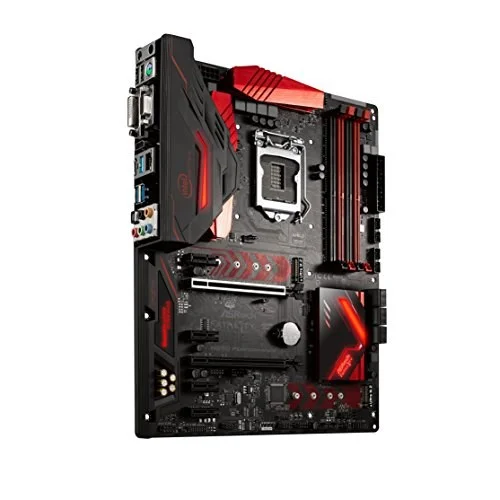

ASRock Fatal1ty H270 Performance LGA1151 ATX DDR4 64 GB Motherboard
| Seller | Shipping | Promo | Price |
|---|---|---|---|
|
- | - | |
|
- | - |
N/A
|
|
- | - |
N/A
|
|
- | - |
N/A
|
* PC Pro Guide may earn a small commission when you buy through links on our site. (Affiliate disclosure)
* Prices and availability can change without notice. The price and stock status displayed on Amazon at the time you complete your purchase are the ones that apply.
Description
The ASRock Fatal1ty H270 Performance is a ATX motherboard for LGA1151. It supports DDR4 memory up to 2400 MT/s (OC).
- ASRock Super Alloy
- Supports 7th and 6th Generation Intel Core i7/i5/i3/Pentium/Celeron Processors (Socket 1151)
- Supports DDR4 2400 (Intel 7th Gen CPUs) / 2133 (Intel 6th Gen CPUs)
- 2 PCIe 3.0 x16, 4 PCIe 3.0 x1, 1 M.2(Key E)
- AMD Quad CrossFireX

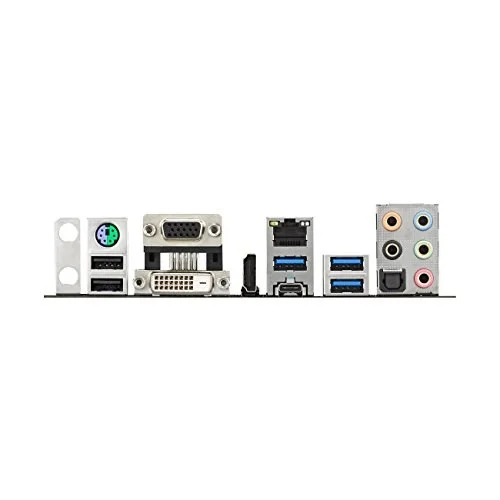

- Graphics Output Options: HDMI, DVI-D, D-Sub
- 7.1 CH HD Audio (Realtek ALC1220 Audio Codec), Supports Creative SoundBlaster Cinema3
- 6 SATA3, 2 Ultra M.2 (PCIe Gen3 x4 & SATA3)
- 8 USB 3.0 (1 Type-C, 4 Front, 3 Rear)
- Intel Gigabit LAN
- ASRock AURA RGB LED
Specifications
| Manufacturer | ASRock |
|---|---|
| Model Number | Fatal1ty H270 Performance |
| Launch Date | January 2017 |
| CPU Socket | LGA1151 |
| Chipset Model | Intel H270 |
| Board Size / Form Factor | ATX |
| Supported Memory Type | DDR4 |
| DIMM Slots | 4 |
| Maximum RAM Capacity | 64 GB |
| Valid DDR4 Speeds | DDR4-2133 / DDR4-2400 (OC) |
| ECC Memory Support | No |
| Expansion Slots (PCIe) | 2 × PCIe x16, 4 × PCIe x1 |
| PCIe x16 (Qty) | 2 |
| PCIe x4 (Qty) | 0 |
| PCIe x1 (Qty) | 4 |
| M.2 Slot Count | 3 × M.2 |
| M.2 Device Compatibility | 2230 - E Key, 2230 / 2242 / 2260 / 2280 - M Key, 2230 / 2242 / 2260 / 2280 - M Key |
| SATA III Ports | 6 × SATA 6Gbps |
| SATA Express Ports | 0 |
| Wired Networking (LAN) | GbE LAN |
| Onboard Wi-Fi | No |
| Wi-Fi Standard | |
| Rear-Panel USB | USB 3.2 Gen1, USB 2.0 |
| Internal USB 3.2 Gen 2x2 Headers | 0 |
| Internal USB 3.2 Gen 2 Headers | 0 |
| Internal USB 3.2 Gen 1 Headers | 2 |
| Internal USB 2.0 Headers | 3 |
| NVIDIA SLI | No |
| AMD CrossFire | Yes |
| RAID Capability | Yes |
| Back-Connect Layout | No |
| Manufacturer Part Number (MPN) | Fatal1ty H270 Performance |
| SKU Code | Fatal1ty H270 Performance |
| GTIN / EAN | 4717677332681 |
