ASRock Fatal1ty H97 Performance LGA1150 ATX DDR3 32 GB Motherboard
| Seller | Shipping | Promo | Price |
|---|---|---|---|
|
- | - | |
|
- | - |
N/A
|
|
- | - |
N/A
|
|
- | - |
N/A
|
* PC Pro Guide may earn a small commission when you buy through links on our site. (Affiliate disclosure)
* Prices and availability can change without notice. The price and stock status displayed on Amazon at the time you complete your purchase are the ones that apply.
Description

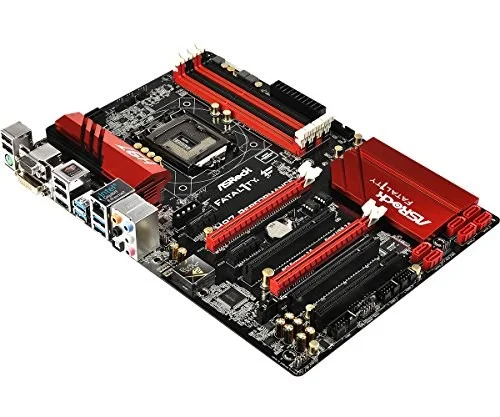

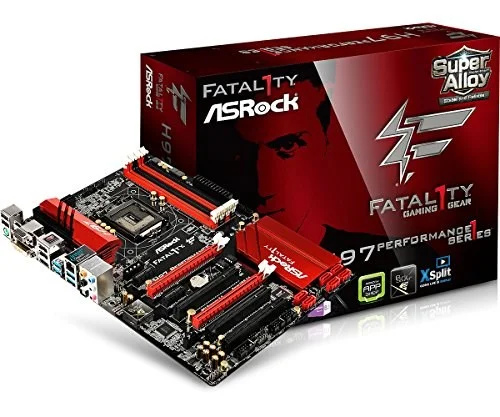

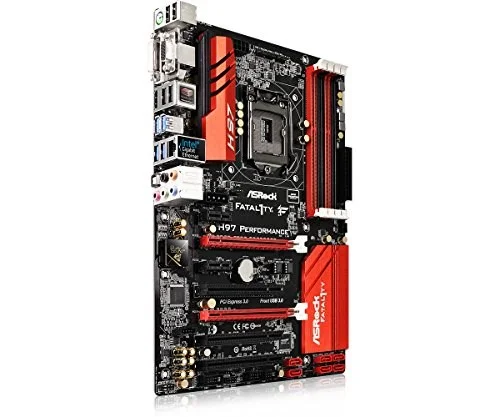

The ASRock Fatal1ty H97 Performance is a ATX motherboard for LGA1150. It supports DDR3 memory up to 1600 MT/s (OC).
- ASRock Super Alloy
-
- XXL Aluminum Alloy Heatsink
-
- Premium Alloy Choke (Reduces 70% core loss compared to iron powder choke)
-
- NexFET MOSFET
-
- Nichicon 12K Platinum Caps (100% Japan made high quality conductive polymer capacitors)
-
- Sapphire Black PCB
- Gaming Armor
- » CPU Power - Hi-Density Power Connector
- » VGA Card - 15μ Gold Contact in VGA PCIe Slot (PCIE2), PCIe Power Connector
- » Internet - Intel Gigabit LAN
- » Audio - Purity Sound 2
- Supports 5th Generation Intel Core i7/i5/i3/Pentium/Celeron Processors (Socket 1150)
- Supports New 4th and 4th Generation Intel Xeon/Core i7/i5/i3/Pentium/Celeron Processors (Socket 1150)
- Digi Power, 8 Power Phase design
- Supports Dual Channel DDR3 1600
- 1 PCIe 3.0 x16, 1 PCIe 2.0 x16, 2 PCIe 2.0 x1, 3 PCI
- Supports AMD Quad CrossFireX and CrossFireX

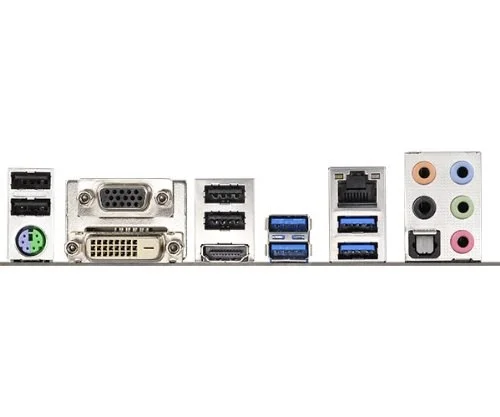

- Graphics Output Options: D-Sub, DVI-D, HDMI
- 7.1 CH HD Audio with Content Protection (Realtek ALC1150 Audio Codec), Supports DTS Connect
- 6 SATA3, 6 USB 3.0 (2 Front, 4 Rear), 8 USB 2.0 (4 Front, 3 Rear, 1 Fatal1ty Mouse Port)
- 1 COM Port Header, 1 Thunderbolt AIC Connector
- Supports ASRock Full Spike Protection, ASRock Cloud, APP Shop, F-Stream, Key Master, Full HD UEFI
- Good build quality
- Intel Gigabit LAN
- Very good onboard audio
- No M.2 or SATA Express support
Specifications
| Manufacturer | ASRock |
|---|---|
| Model Number | FATAL1TY H97 PERFORMANCE |
| Launch Date | July 2014 |
| CPU Socket | LGA1150 |
| Chipset Model | Intel H97 |
| Board Size / Form Factor | ATX |
| Supported Memory Type | DDR3 |
| DIMM Slots | 4 |
| Maximum RAM Capacity | 32 GB |
| Valid DDR4 Speeds | DDR4-1066 / DDR4-1333 / DDR4-1600 (OC) |
| ECC Memory Support | No |
| Expansion Slots (PCIe) | 2 × PCIe x16, 2 × PCIe x1 |
| PCIe x16 (Qty) | 2 |
| PCIe x4 (Qty) | 0 |
| PCIe x1 (Qty) | 2 |
| M.2 Slot Count | 0 × M.2 |
| M.2 Device Compatibility | |
| SATA III Ports | 6 × SATA 6Gbps |
| SATA Express Ports | 0 |
| Wired Networking (LAN) | GbE LAN |
| Onboard Wi-Fi | No |
| Wi-Fi Standard | |
| Rear-Panel USB | USB 3.2 Gen1, USB 2.0 |
| Internal USB 3.2 Gen 2x2 Headers | 0 |
| Internal USB 3.2 Gen 2 Headers | 0 |
| Internal USB 3.2 Gen 1 Headers | 1 |
| Internal USB 2.0 Headers | 2 |
| NVIDIA SLI | No |
| AMD CrossFire | Yes |
| RAID Capability | Yes |
| Back-Connect Layout | No |
| Manufacturer Part Number (MPN) | FATAL1TY H97 PERFORMANCE |
| SKU Code | FATAL1TY H97 PERFORMANCE |
| GTIN / EAN | 132018510544 |
