ASRock FM2A75M Pro4+ FM2+ Micro-ATX DDR3 64 GB Motherboard
| Seller | Shipping | Promo | Price |
|---|---|---|---|
|
- | - | |
|
- | - |
N/A
|
|
- | - |
N/A
|
|
- | - |
N/A
|
* PC Pro Guide may earn a small commission when you buy through links on our site. (Affiliate disclosure)
* Prices and availability can change without notice. The price and stock status displayed on Amazon at the time you complete your purchase are the ones that apply.
Description

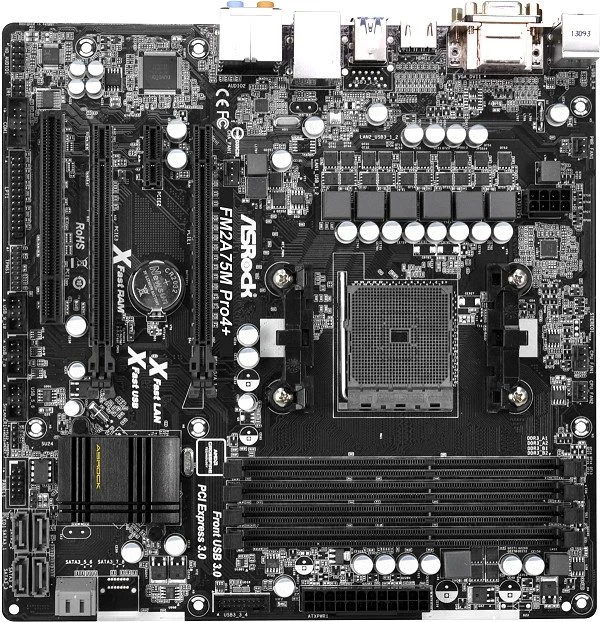

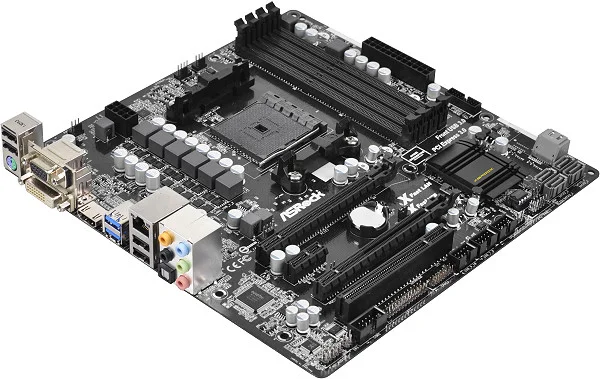

The ASRock FM2A75M Pro4+ is a Micro-ATX motherboard for FM2+. It supports DDR3 memory up to 2600 MT/s (OC).
- A-Style : Home Cloud
- Supports Socket FM2+ 95W / FM2 100W processors
- All Solid Capacitor Design
- Supports Dual Channel DDR3 2600+(OC)
- 1 x PCIe 3.0 x16, 1 x PCIe 2.0 x16, 1 x PCIe 2.0 x1, 1 x PCI
- Supports AMD Quad CrossFireX, CrossFireX and Dual Graphics
- Integrated AMD Radeon HD 8000/7000 series graphics in A-series APU

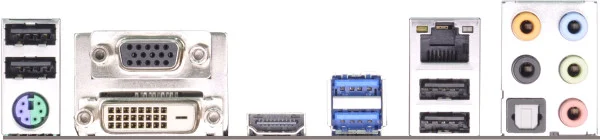

- Multi VGA Output Options : D-Sub, DVI-D, HDMI
- 7.1 CH HD Audio with Content Protection (Realtek ALC892 Audio Codec)
- 6 x SATA3, 4 x USB 3.0 (2 Front, 2 Rear), 10 x USB 2.0
- Supports A-Tuning, XFast 555, X-Boost, Easy Driver Installer, FAN-Tastic Tuning, USB Key
- HDMI output
- USB 3.0
- Supports upcoming FM2+ 95W CPU
- 4x DDR3 DIMM Slots
Specifications
| Manufacturer | ASRock |
|---|---|
| Model Number | FM2A75M PRO4+ |
| Launch Date | October 2013 |
| CPU Socket | FM2+ |
| Chipset Model | Intel A75 |
| Board Size / Form Factor | Micro-ATX |
| Supported Memory Type | DDR3 |
| DIMM Slots | 4 |
| Maximum RAM Capacity | 64 GB |
| Valid DDR4 Speeds | DDR4-1066 / DDR4-1333 / DDR4-1600 / DDR4-1866 / DDR4-2133 / DDR4-2400 / DDR4-2600 (OC) |
| ECC Memory Support | No |
| Expansion Slots (PCIe) | 2 × PCIe x16, 1 × PCIe x1 |
| PCIe x16 (Qty) | 2 |
| PCIe x4 (Qty) | 0 |
| PCIe x1 (Qty) | 1 |
| M.2 Slot Count | 0 × M.2 |
| M.2 Device Compatibility | |
| SATA III Ports | 6 × SATA 6Gbps |
| SATA Express Ports | 0 |
| Wired Networking (LAN) | |
| Onboard Wi-Fi | No |
| Wi-Fi Standard | |
| Rear-Panel USB | USB 3.2 Gen1, USB 2.0 |
| Internal USB 3.2 Gen 2x2 Headers | 0 |
| Internal USB 3.2 Gen 2 Headers | 0 |
| Internal USB 3.2 Gen 1 Headers | 1 |
| Internal USB 2.0 Headers | 3 |
| NVIDIA SLI | No |
| AMD CrossFire | Yes |
| RAID Capability | Yes |
| Back-Connect Layout | No |
| Manufacturer Part Number (MPN) | FM2A75M PRO4+ |
| SKU Code | FM2A75M PRO4+ |
| GTIN / EAN | 4717677321838 |
