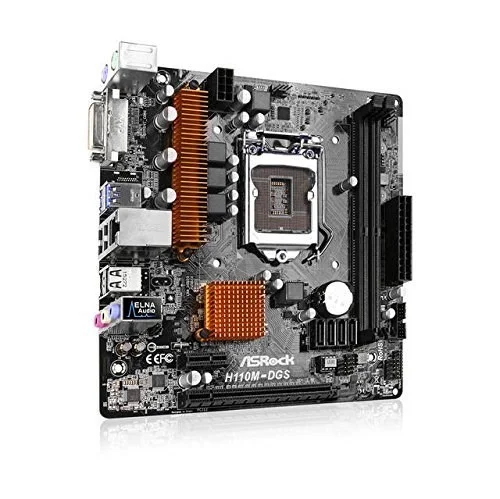

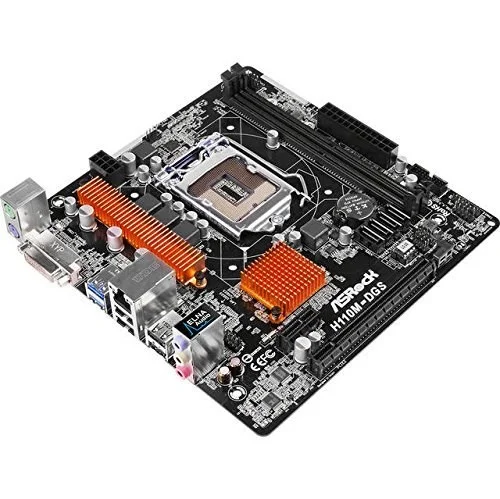

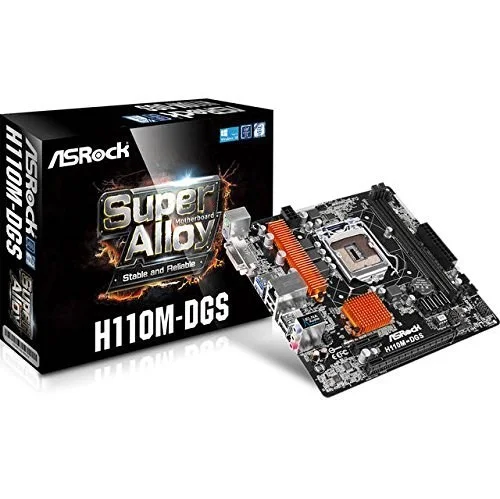

ASRock H110M-DGS LGA1151 Micro-ATX DDR4 32 GB Motherboard
* PC Pro Guide may earn a small commission when you buy through links on our site. (Affiliate disclosure)
* Prices and availability can change without notice. The price and stock status displayed on Amazon at the time you complete your purchase are the ones that apply.
Description
The ASRock H110M-DGS is a Micro-ATX motherboard for LGA1151. It supports DDR4 memory up to 2133 MT/s (OC).
- Socket: LGA 1151
- Chipset: Intel H110
- Memory: 2X DDR4-2133 DIMM Slots, Dual Channel, Non-ECC, Unbuffered, Max Capacity Of 32GB
- Slots: 1X PCI-Express 3.0 X16 Slot, 1X PCI Express 2.0 X1 Slot
- SATA: 4X SATA3 Ports, Support NCQ, AHCI And Hot Plug

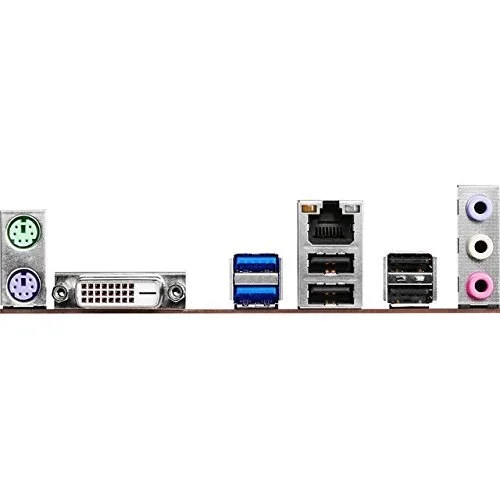

- Ports: 4X USB 3.0 Ports (2 Rear, 2 Via Header), 6X USB 2.0 Ports (4 Rear, 2 Via Header), 1X PS/2 Mouse Port, 1X PS/2 Keyboard Port, 1X Dvl-D Port, 1X RJ45 LAN Port, Audio I/O Jacks
Specifications
| Manufacturer | ASRock |
|---|---|
| Model Number | H110M-DGS H110M-DGS R3.0 |
| Launch Date | |
| CPU Socket | LGA1151 |
| Chipset Model | Intel H110 |
| Board Size / Form Factor | Micro-ATX |
| Supported Memory Type | DDR4 |
| DIMM Slots | 2 |
| Maximum RAM Capacity | 32 GB |
| Valid DDR4 Speeds | DDR4-2133 (OC) |
| ECC Memory Support | No |
| Expansion Slots (PCIe) | 1 × PCIe x16, 1 × PCIe x1 |
| PCIe x16 (Qty) | 1 |
| PCIe x4 (Qty) | 0 |
| PCIe x1 (Qty) | 1 |
| M.2 Slot Count | 0 × M.2 |
| M.2 Device Compatibility | |
| SATA III Ports | 4 × SATA 6Gbps |
| SATA Express Ports | 0 |
| Wired Networking (LAN) | |
| Onboard Wi-Fi | No |
| Wi-Fi Standard | |
| Rear-Panel USB | USB 3.2 Gen1, USB 2.0 |
| Internal USB 3.2 Gen 2x2 Headers | 0 |
| Internal USB 3.2 Gen 2 Headers | 0 |
| Internal USB 3.2 Gen 1 Headers | 1 |
| Internal USB 2.0 Headers | 1 |
| NVIDIA SLI | No |
| AMD CrossFire | No |
| RAID Capability | No |
| Back-Connect Layout | No |
| Manufacturer Part Number (MPN) | H110M-DGS |
| SKU Code | H110M-DGS |
| GTIN / EAN | 805893729492 |
Price History (last 12 months)
Plots available price points within the past 12 months.
