ASRock H110M-ITX/AC LGA1151 Mini-ITX DDR4 32 GB Motherboard
| Seller | Shipping | Promo | Price |
|---|---|---|---|
|
- | - | |
|
- | - |
N/A
|
|
- | - |
N/A
|
|
- | - |
N/A
|
* PC Pro Guide may earn a small commission when you buy through links on our site. (Affiliate disclosure)
* Prices and availability can change without notice. The price and stock status displayed on Amazon at the time you complete your purchase are the ones that apply.
Description

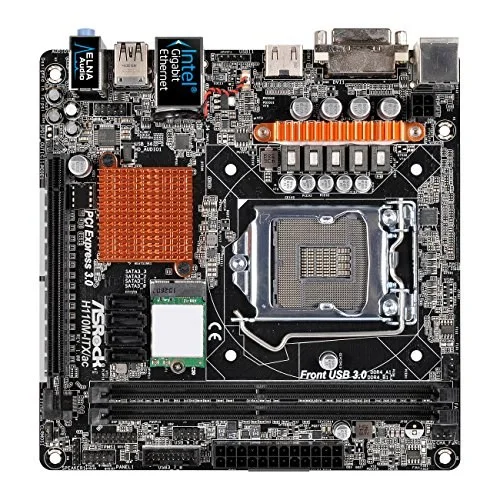

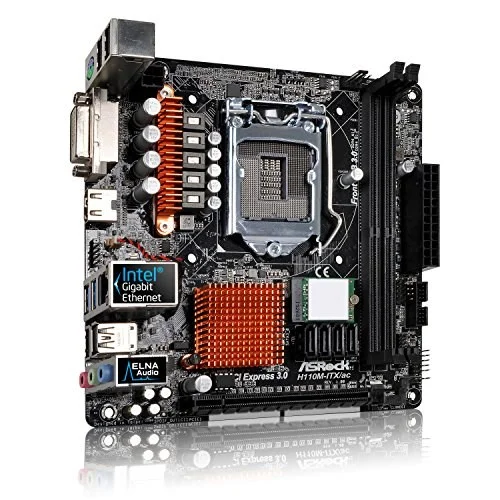

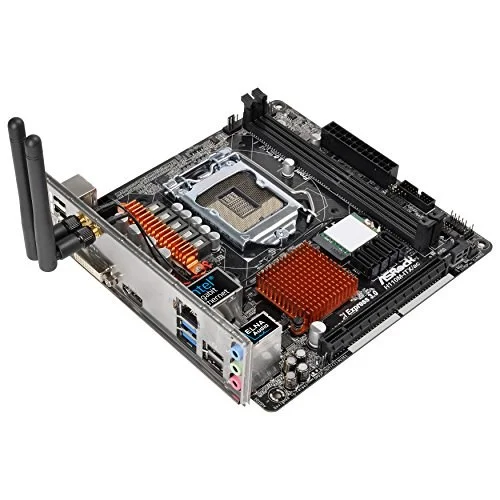

The ASRock H110M-ITX/AC is a Mini-ITX motherboard for LGA1151. It supports DDR4 memory up to 2133 MT/s (OC).
- CPU: LGA 1151, Chipset: Intel H110
- Memory: 2x DDR4-2133 DIMM Slots, Dual-Channel, Non-ECC, Unbuffered, Max capacity of 32GB
- Slots: 1x PCI-Express 3.0 x16 Slot.Graphics Output Options: DVI-D, HDMI
- SATA: 4x SATA3 Ports, M.2: 1x M.2 Port

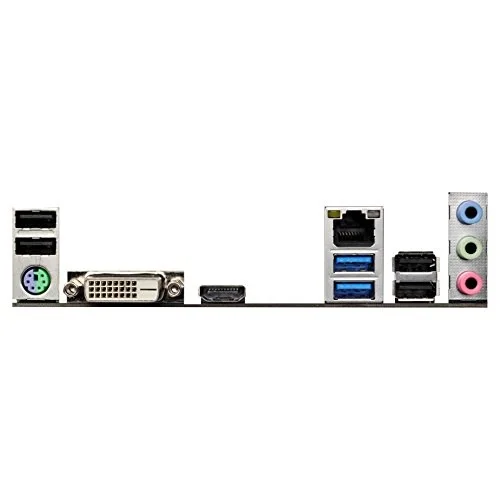

- Ports: 4x USB 3.0 Ports (2 rear, 2 via header), 7x USB 2.0 Ports (4 rear, 3 via headers), 1x PS/2 Keyboard/Mouse Port, 1x DVI-D Port, 1x HDMI Port, 1x RJ45 LAN Port, Audio I/O Jacks
- Form Factor: Mini-ITX
Specifications
| Manufacturer | ASRock |
|---|---|
| Model Number | H110M-ITX/AC |
| Launch Date | |
| CPU Socket | LGA1151 |
| Chipset Model | Intel H110 |
| Board Size / Form Factor | Mini-ITX |
| Supported Memory Type | DDR4 |
| DIMM Slots | 2 |
| Maximum RAM Capacity | 32 GB |
| Valid DDR4 Speeds | DDR4-2133 (OC) |
| ECC Memory Support | No |
| Expansion Slots (PCIe) | 1 × PCIe x16 |
| PCIe x16 (Qty) | 1 |
| PCIe x4 (Qty) | 0 |
| PCIe x1 (Qty) | 0 |
| M.2 Slot Count | 1 × M.2 |
| M.2 Device Compatibility | 2230 - E Key |
| SATA III Ports | 4 × SATA 6Gbps |
| SATA Express Ports | 0 |
| Wired Networking (LAN) | |
| Onboard Wi-Fi | Yes |
| Wi-Fi Standard | 5 |
| Rear-Panel USB | USB 3.2 Gen1, USB 2.0 |
| Internal USB 3.2 Gen 2x2 Headers | 0 |
| Internal USB 3.2 Gen 2 Headers | 0 |
| Internal USB 3.2 Gen 1 Headers | 1 |
| Internal USB 2.0 Headers | 2 |
| NVIDIA SLI | No |
| AMD CrossFire | No |
| RAID Capability | No |
| Back-Connect Layout | No |
| Manufacturer Part Number (MPN) | H110M-ITX/AC |
| SKU Code | H110M-ITX/AC |
| GTIN / EAN | 4717677329551 |
