ASRock H170 Pro4 LGA1151 ATX DDR4 32 GB Motherboard
| Seller | Shipping | Promo | Price |
|---|---|---|---|
|
- | - | |
|
- | - |
N/A
|
|
- | - |
N/A
|
|
- | - |
N/A
|
* PC Pro Guide may earn a small commission when you buy through links on our site. (Affiliate disclosure)
* Prices and availability can change without notice. The price and stock status displayed on Amazon at the time you complete your purchase are the ones that apply.
Description

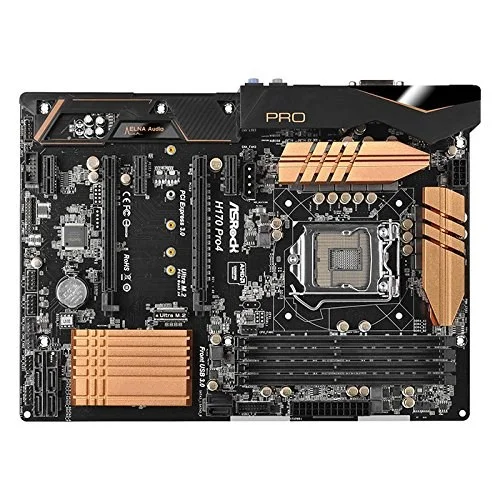

The ASRock H170 Pro4 is a ATX motherboard for LGA1151. It supports DDR4 memory up to 2133 MT/s (OC).
- ASRock Super Alloy
- Supports 6th Generation Intel Core Processors (Socket 1151)
- Digi Power, 10 Power Phase design
- Supports Dual Channel DDR4 2133
- 2 PCIe 3.0 x16, 3 PCIe 3.0 x1
- AMD Quad CrossFireX, CrossFireX

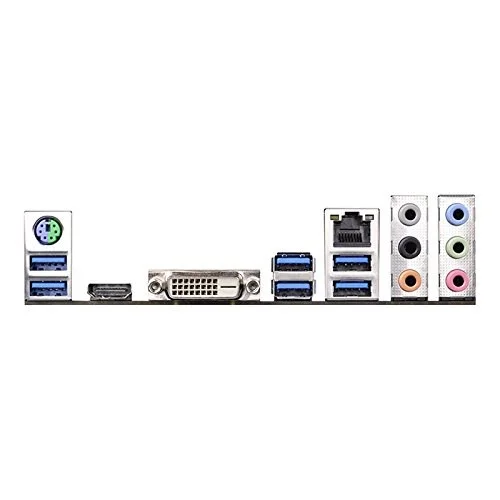

- Graphics Output Options: DVI-D, HDMI
- 7.1 CH HD Audio (Realtek ALC892 Audio Codec), ELNA Audio Caps
- 1 SATA Express, 6 SATA3, 1 Ultra M.2 (PCIe Gen3 x4 & SATA3)
- 8 USB 3.0 (2 Front, 6 Rear)
- Supports Full Spike Protection, ASRock Live Update & APP Shop
Specifications
| Manufacturer | ASRock |
|---|---|
| Model Number | H170 PRO4 |
| Launch Date | October 2015 |
| CPU Socket | LGA1151 |
| Chipset Model | Intel H170 |
| Board Size / Form Factor | ATX |
| Supported Memory Type | DDR4 |
| DIMM Slots | 4 |
| Maximum RAM Capacity | 32 GB |
| Valid DDR4 Speeds | DDR4-2133 (OC) |
| ECC Memory Support | No |
| Expansion Slots (PCIe) | 2 × PCIe x16, 3 × PCIe x1 |
| PCIe x16 (Qty) | 2 |
| PCIe x4 (Qty) | 0 |
| PCIe x1 (Qty) | 3 |
| M.2 Slot Count | 1 × M.2 |
| M.2 Device Compatibility | 2230 / 2242 / 2260 / 2280 / 22110 - M Key |
| SATA III Ports | 2 × SATA 6Gbps |
| SATA Express Ports | 2 |
| Wired Networking (LAN) | |
| Onboard Wi-Fi | No |
| Wi-Fi Standard | |
| Rear-Panel USB | USB 3.2 Gen1, USB 2.0 |
| Internal USB 3.2 Gen 2x2 Headers | 0 |
| Internal USB 3.2 Gen 2 Headers | 0 |
| Internal USB 3.2 Gen 1 Headers | 1 |
| Internal USB 2.0 Headers | 2 |
| NVIDIA SLI | No |
| AMD CrossFire | Yes |
| RAID Capability | Yes |
| Back-Connect Layout | No |
| Manufacturer Part Number (MPN) | H170 PRO4 |
| SKU Code | H170 PRO4 |
| GTIN / EAN | 4717677327021 |
Price History (last 12 months)
Plots available price points within the past 12 months.
