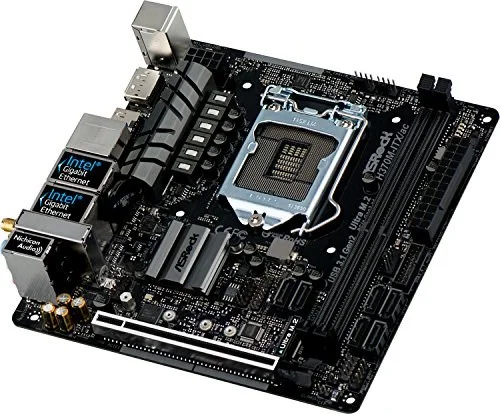

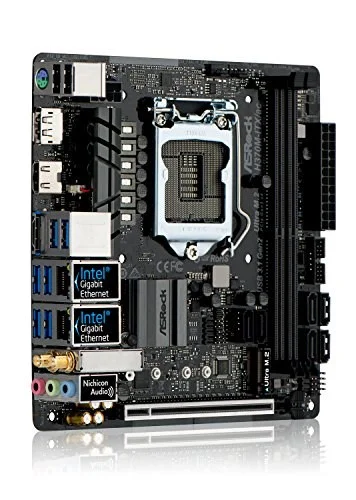

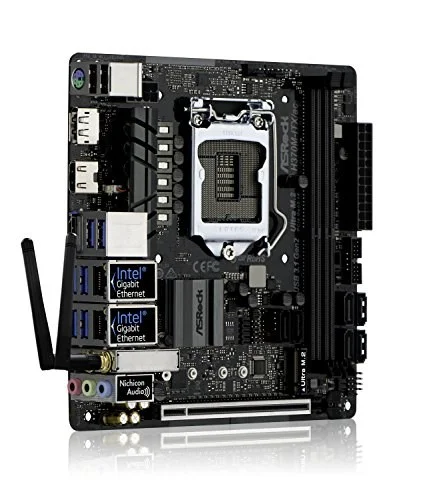

ASRock H370M-ITX/AC LGA1151 Mini-ITX DDR4 32 GB Motherboard
| Seller | Shipping | Promo | Price |
|---|---|---|---|
|
- | - | |
|
- | - |
N/A
|
|
- | - |
N/A
|
|
- | - |
N/A
|
* PC Pro Guide may earn a small commission when you buy through links on our site. (Affiliate disclosure)
* Prices and availability can change without notice. The price and stock status displayed on Amazon at the time you complete your purchase are the ones that apply.
Description
The ASRock H370M-ITX/AC is a Mini-ITX motherboard for LGA1151. It supports DDR4 memory up to 2666 MT/s (OC).
- Supports Intel Turbo Boost 2.0 Technology
- 2x DDR4-2666/2400/2133 DIMM Slots, Dual Channel, Non-ECC, Unbuffered, Max Capacity of 32GB
- 1x PCI-Express 3.0 x16 Slot, 1x Vertical M.2 Socket (Key E)
- 6x SATA3 Ports, Support RAID 0, 1, 5, 10, NCQ, AHCI and Hot Plug
- Realtek ALC892 7.1-Channel High Definition Audio CODEC
Specifications
| Manufacturer | ASRock |
|---|---|
| Model Number | H370M-ITX/AC |
| Launch Date | May 2018 |
| CPU Socket | LGA1151 |
| Chipset Model | Intel H370 |
| Board Size / Form Factor | Mini-ITX |
| Supported Memory Type | DDR4 |
| DIMM Slots | 2 |
| Maximum RAM Capacity | 32 GB |
| Valid DDR4 Speeds | DDR4-2133 / DDR4-2400 / DDR4-2666 (OC) |
| ECC Memory Support | No |
| Expansion Slots (PCIe) | 1 × PCIe x16 |
| PCIe x16 (Qty) | 1 |
| PCIe x4 (Qty) | 0 |
| PCIe x1 (Qty) | 0 |
| M.2 Slot Count | 2 × M.2 |
| M.2 Device Compatibility | 2230 / 2242 / 2260 / 2280 - M Key, 2230 - E Key |
| SATA III Ports | 6 × SATA 6Gbps |
| SATA Express Ports | 0 |
| Wired Networking (LAN) | |
| Onboard Wi-Fi | Yes |
| Wi-Fi Standard | 5 |

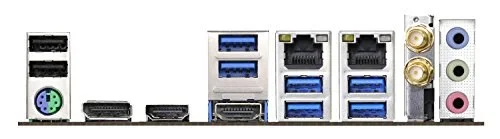

| Rear-Panel USB | USB 3.2 Gen1, USB 2.0 |
| Internal USB 3.2 Gen 2x2 Headers | 0 |
| Internal USB 3.2 Gen 2 Headers | 0 |
| Internal USB 3.2 Gen 1 Headers | 1 |
| Internal USB 2.0 Headers | 1 |
| NVIDIA SLI | No |
| AMD CrossFire | No |
| RAID Capability | Yes |
| Back-Connect Layout | No |
| Manufacturer Part Number (MPN) | H370M-ITX/AC |
| SKU Code | H370M-ITX/AC |
| GTIN / EAN | 4717677335125 |
