Description

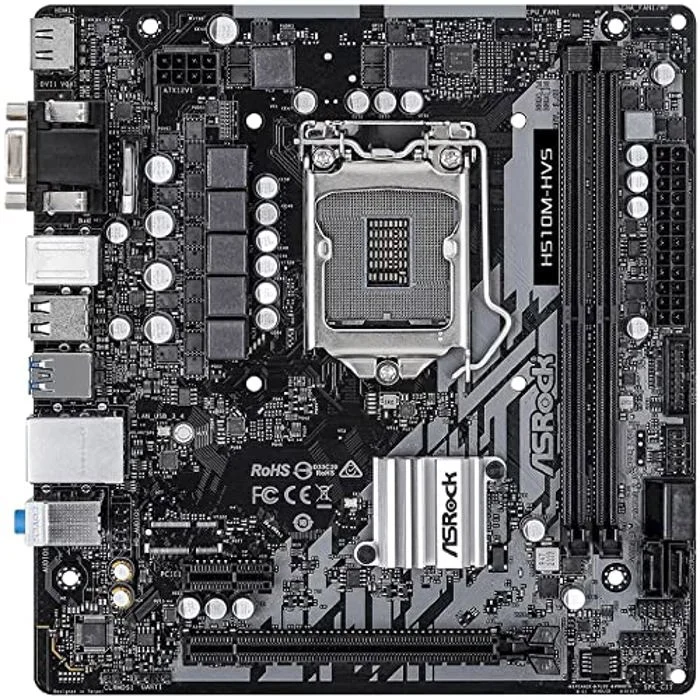

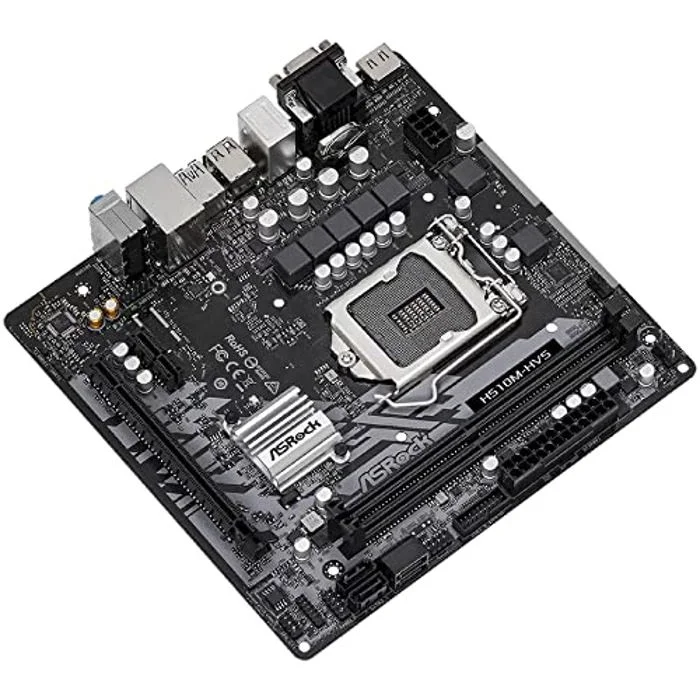

The ASRock H510M-HVS is a Micro-ATX motherboard for LGA1200. It supports DDR4 memory up to 3200 MT/s (OC).
- Intel H510 Supports 11th Gen Intel Core Processors Supports 10th Gen Intel Core Processors DDR4 3200 / 2933 / 2800 / 2666 / 2400 / 2133
Specifications
| Manufacturer | ASRock |
|---|---|
| Model Number | H510M-HVS 90-MXBG30-A0UAYZ |
| Launch Date | April 2021 |
| CPU Socket | LGA1200 |
| Chipset Model | Intel H510 |
| Board Size / Form Factor | Micro-ATX |
| Supported Memory Type | DDR4 |
| DIMM Slots | 2 |
| Maximum RAM Capacity | 64 GB |
| Valid DDR4 Speeds | DDR4-2133 / DDR4-2400 / DDR4-2666 / DDR4-2800 / DDR4-2933 / DDR4-3200 (OC) |
| ECC Memory Support | No |
| Expansion Slots (PCIe) | 1 × PCIe x16, 1 × PCIe x1 |
| PCIe x16 (Qty) | 1 |
| PCIe x4 (Qty) | 0 |
| PCIe x1 (Qty) | 1 |
| M.2 Slot Count | 0 × M.2 |
| M.2 Device Compatibility | |
| SATA III Ports | 4 × SATA 6Gbps |
| SATA Express Ports | 0 |
| Wired Networking (LAN) | |
| Onboard Wi-Fi | No |
| Wi-Fi Standard | |

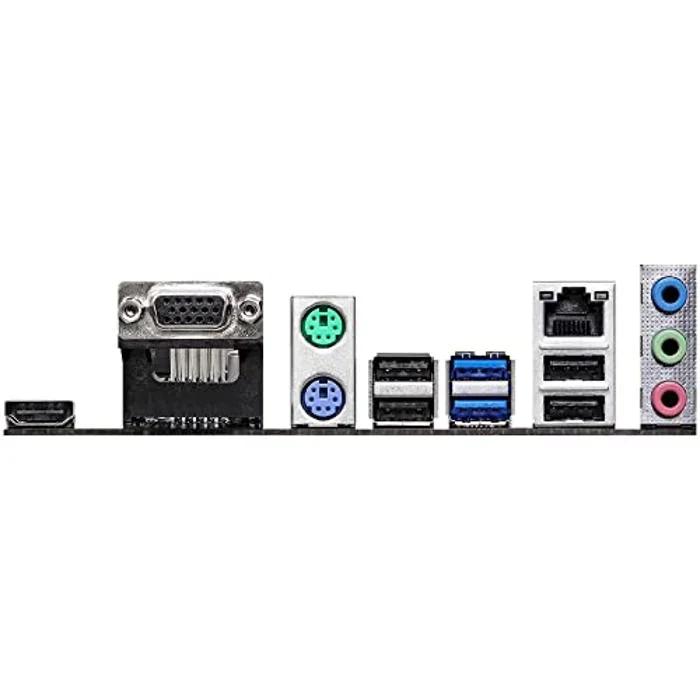

| Rear-Panel USB | USB 3.2 Gen1, USB 2.0 |
| Internal USB 3.2 Gen 2x2 Headers | 0 |
| Internal USB 3.2 Gen 2 Headers | 0 |
| Internal USB 3.2 Gen 1 Headers | 1 |
| Internal USB 2.0 Headers | 1 |
| NVIDIA SLI | No |
| AMD CrossFire | No |
| RAID Capability | No |
| Back-Connect Layout | No |
| Manufacturer Part Number (MPN) | H510M-HVS |
| SKU Code | H510M-HVS |
| GTIN / EAN | 4710483934230 |
