ASRock H510M-ITX/AC LGA1200 Mini-ITX DDR4 64 GB Motherboard
* PC Pro Guide may earn a small commission when you buy through links on our site. (Affiliate disclosure)
* Prices and availability can change without notice. The price and stock status displayed on Amazon at the time you complete your purchase are the ones that apply.
Description

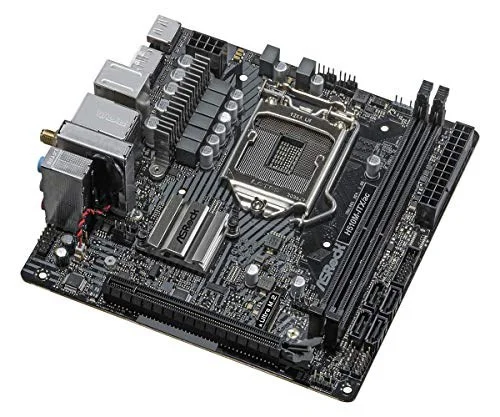

The ASRock H510M-ITX/AC is a Mini-ITX motherboard for LGA1200. It supports DDR4 memory up to 3200 MT/s (OC).
- Asrock Ultra M.2 (Pcie Gen3x4 & SATA3)
- Asrock Full Spike Protection (For All USB, Audio, LAN Ports)
- Supports 10Th Gen Intel Core Processors And 11Th Gen Intel Core Processors (LGA1200)
- Supports Intel Turbo Boost Max 3.0 Technology
- Dual Channel DDR4 Memory Technology
Specifications
| Manufacturer | ASRock |
|---|---|
| Model Number | H510M-ITX/AC 90-MXBF30-A0UAYZ |
| Launch Date | February 2021 |
| CPU Socket | LGA1200 |
| Chipset Model | Intel H510 |
| Board Size / Form Factor | Mini-ITX |
| Supported Memory Type | DDR4 |
| DIMM Slots | 2 |
| Maximum RAM Capacity | 64 GB |
| Valid DDR4 Speeds | DDR4-2133 / DDR4-2400 / DDR4-2666 / DDR4-2800 / DDR4-2933 / DDR4-3200 (OC) |
| ECC Memory Support | No |
| Expansion Slots (PCIe) | 1 × PCIe x16 |
| PCIe x16 (Qty) | 1 |
| PCIe x4 (Qty) | 0 |
| PCIe x1 (Qty) | 0 |
| M.2 Slot Count | 1 × M.2 |
| M.2 Device Compatibility | 2280 - M Key |
| SATA III Ports | 4 × SATA 6Gbps |
| SATA Express Ports | 0 |
| Wired Networking (LAN) | |
| Onboard Wi-Fi | Yes |
| Wi-Fi Standard | 5 |
| Rear-Panel USB | USB 3.2 Gen1, USB 2.0 |
| Internal USB 3.2 Gen 2x2 Headers | 0 |
| Internal USB 3.2 Gen 2 Headers | 0 |
| Internal USB 3.2 Gen 1 Headers | 1 |
| Internal USB 2.0 Headers | 1 |
| NVIDIA SLI | No |
| AMD CrossFire | No |
| RAID Capability | No |
| Back-Connect Layout | No |
| Manufacturer Part Number (MPN) | H510M-ITX/AC |
| SKU Code | H510M-ITX/AC |
| GTIN / EAN | 4710483933929 |
