ASRock H570M-ITX/AC LGA1200 Mini-ITX DDR4 64 GB Motherboard
* PC Pro Guide may earn a small commission when you buy through links on our site. (Affiliate disclosure)
* Prices and availability can change without notice. The price and stock status displayed on Amazon at the time you complete your purchase are the ones that apply.
Description

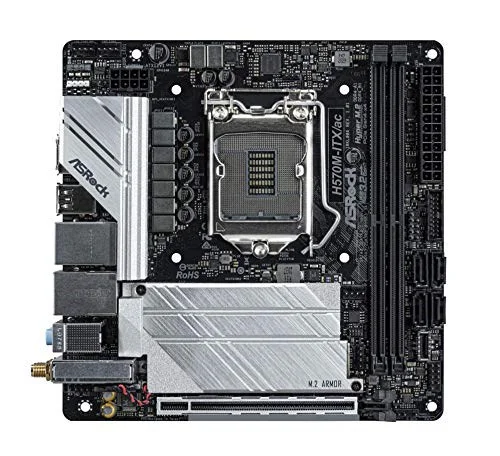

The ASRock H570M-ITX/AC is a Mini-ITX motherboard for LGA1200. It supports DDR4 memory up to 4600 MT/s (OC).
- CPU:INTEL SOCKET1200 FOR INTEL 10TH/11TH GEN CORE
- CHIPSET:INTEL H570
- MEMORY:2*DIMM MAX 64GB DDR4
- SLOTS:1*PCIE4.0X16
- STORAGE:1M.2 SLOTS;4SATA 6GB/S PORTS
Specifications
| Manufacturer | ASRock |
|---|---|
| Model Number | H570M-ITX/AC 90-MXBEU0-A0UAYZ |
| Launch Date | February 2021 |
| CPU Socket | LGA1200 |
| Chipset Model | Intel H570 |
| Board Size / Form Factor | Mini-ITX |
| Supported Memory Type | DDR4 |
| DIMM Slots | 2 |
| Maximum RAM Capacity | 64 GB |
| Valid DDR4 Speeds | DDR4-3466 / DDR4-3600 / DDR4-3733 / DDR4-4000 / DDR4-4133 / DDR4-4266 / DDR4-4600 (OC) |
| ECC Memory Support | No |
| Expansion Slots (PCIe) | 1 × PCIe x16 |
| PCIe x16 (Qty) | 1 |
| PCIe x4 (Qty) | 0 |
| PCIe x1 (Qty) | 0 |
| M.2 Slot Count | 3 × M.2 |
| M.2 Device Compatibility | 2280 - M Key (Intel 11th Gen only), 2280 - M Key, 2230 - E Key |
| SATA III Ports | 4 × SATA 6Gbps |
| SATA Express Ports | 0 |
| Wired Networking (LAN) | |
| Onboard Wi-Fi | Yes |
| Wi-Fi Standard | 5 |

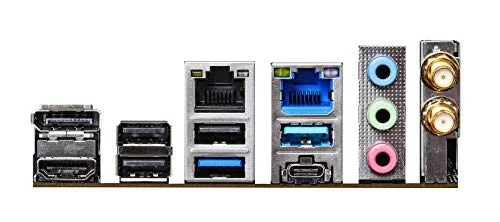

| Rear-Panel USB | USB 3.2 Gen2, USB 3.2 Gen1, USB 2.0 |
| Internal USB 3.2 Gen 2x2 Headers | 0 |
| Internal USB 3.2 Gen 2 Headers | 1 |
| Internal USB 3.2 Gen 1 Headers | 1 |
| Internal USB 2.0 Headers | 1 |
| NVIDIA SLI | No |
| AMD CrossFire | No |
| RAID Capability | Yes |
| Back-Connect Layout | No |
| Manufacturer Part Number (MPN) | H570M-ITX/AC |
| SKU Code | H570M-ITX/AC |
| GTIN / EAN | 4710483933875 |
