ASRock H670M-ITX/ax LGA1700 Mini-ITX DDR4 128 GB Motherboard
* PC Pro Guide may earn a small commission when you buy through links on our site. (Affiliate disclosure)
* Prices and availability can change without notice. The price and stock status displayed on Amazon at the time you complete your purchase are the ones that apply.
Description

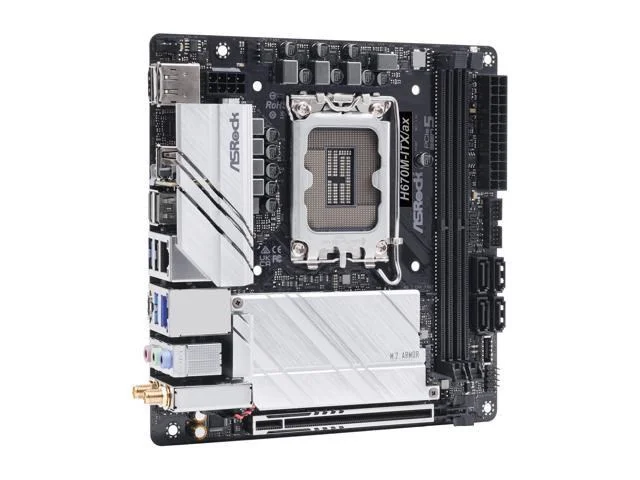

The ASRock H670M-ITX/ax is a Mini-ITX motherboard for LGA1700. It supports DDR4 memory up to 4400 MT/s (OC).

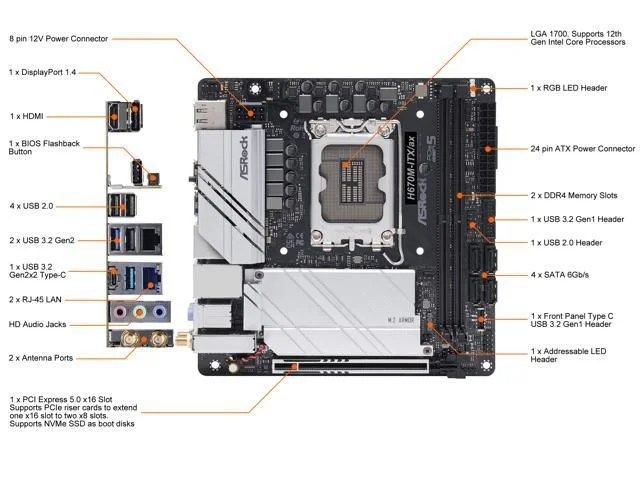

- ASRock H670M-ITX/AX LGA 1700 Intel H670 SATA 6Gb/s DDR4 Mini ITX Motherboard Memory Standard: DDR4 up to 5000+(OC)* * Supports DDR4 3200 natively. Number of Memory Slots: 2x288pin (DDR4) Audio Chipset: Realtek ALC897 PCI Express 5.0 x16: 1 x PCI Express 5.0 x16* * Supports PCIe riser cards to extend one x16 slot to two x8 slots. * Supports NVMe SSD as boot disks. Onboard Video Chipset: Supported only by CPU with integrated graphic Max LAN Speed: 10/100/1000/2500Mbps + 10/100/1000Mbps CPU Type: Supports 12th Gen Intel Core Processors Supported CPU Technologies: Turbo Boost Technology 3.0
Specifications
| Manufacturer | ASRock |
|---|---|
| Model Number | H670M-ITX/ax |
| Launch Date | |
| CPU Socket | LGA1700 |
| Chipset Model | Intel H670 |
| Board Size / Form Factor | Mini-ITX |
| Supported Memory Type | DDR4 |
| DIMM Slots | 2 |
| Maximum RAM Capacity | 128 GB |
| Valid DDR4 Speeds | DDR4-2133 / DDR4-2400 / DDR4-2666 / DDR4-2933 / DDR4-3000 / DDR4-3200 / DDR4-3466 / DDR4-3600 / DDR4-3733 / DDR4-3800 / DDR4-4000 / DDR4-4200 / DDR4-4266 / DDR4-4400 (OC) |
| ECC Memory Support | No |
| Expansion Slots (PCIe) | 1 × PCIe x16 |
| PCIe x16 (Qty) | 1 |
| PCIe x4 (Qty) | 0 |
| PCIe x1 (Qty) | 0 |
| M.2 Slot Count | 3 × M.2 |
| M.2 Device Compatibility | 2280 - M Key, 2280 - M Key, 2230 - E Key |
| SATA III Ports | 4 × SATA 6Gbps |
| SATA Express Ports | 0 |
| Wired Networking (LAN) | |
| Onboard Wi-Fi | Yes |
| Wi-Fi Standard | 6E (802.11ax, 6 GHz) |

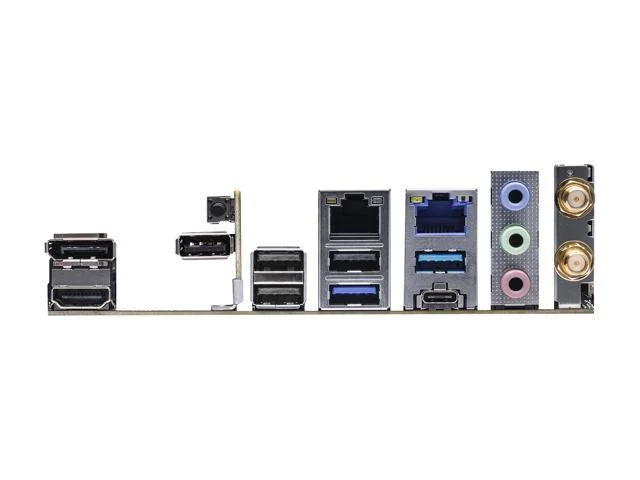

| Rear-Panel USB | USB 3.2 Gen2, USB 3.2 Gen1, USB 2.0 |
| Internal USB 3.2 Gen 2x2 Headers | 0 |
| Internal USB 3.2 Gen 2 Headers | 1 |
| Internal USB 3.2 Gen 1 Headers | 1 |
| Internal USB 2.0 Headers | 1 |
| NVIDIA SLI | No |
| AMD CrossFire | No |
| RAID Capability | Yes |
| Back-Connect Layout | No |
| Manufacturer Part Number (MPN) | H670M-ITX/ax |
| SKU Code | H670M-ITX/ax |
| GTIN / EAN | 4710483936531 |
