ASRock H87 Pro4 LGA1150 ATX DDR3 32 GB Motherboard
| Seller | Shipping | Promo | Price |
|---|---|---|---|
|
- | - | |
|
- | - |
N/A
|
|
- | - |
N/A
|
|
- | - |
N/A
|
* PC Pro Guide may earn a small commission when you buy through links on our site. (Affiliate disclosure)
* Prices and availability can change without notice. The price and stock status displayed on Amazon at the time you complete your purchase are the ones that apply.
Description

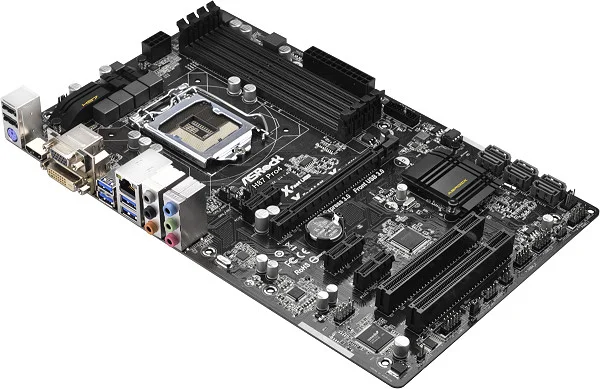

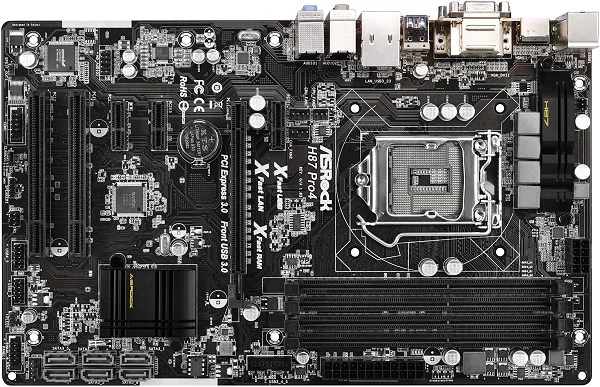

The ASRock H87 Pro4 is a ATX motherboard for LGA1150. It supports DDR3 memory up to 1600 MT/s (OC).
- A-Style : Home Cloud
- Supports 4th Gen Intel Core i7 / i5 / i3 / Xeon / Pentium / Celeron in LGA1150 Package
- Supports Intel Small Business Advantage 2.0
- All Solid Capacitor design, Digi Power
- Supports Dual Channel DDR3 1600
- 1 x PCIe 3.0 x16, 3 x PCIe 2.0 x1

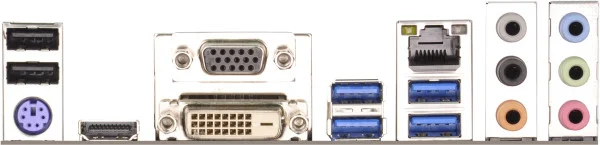

- Multi VGA Output Options : DVI-D, D-Sub, HDMI
- Intel Gigabit LAN
- 7.1 CH HD Audio with Content Protection (Realtek ALC892 Audio Codec)
- 6 x SATA3, 6 x USB 3.0, 6 x USB 2.0
- Supports A-Tuning, XFast 555, Easy Driver Installer, FAN-Tastic Tuning, USB Key
- 4x USB 3.0 ports at back pannel
- Windows 8 support
- Missing AMD CrossFire support
Specifications
| Manufacturer | ASRock |
|---|---|
| Model Number | H87 PRO4 |
| Launch Date | June 2013 |
| CPU Socket | LGA1150 |
| Chipset Model | Intel H87 |
| Board Size / Form Factor | ATX |
| Supported Memory Type | DDR3 |
| DIMM Slots | 4 |
| Maximum RAM Capacity | 32 GB |
| Valid DDR4 Speeds | DDR4-1066 / DDR4-1333 / DDR4-1600 (OC) |
| ECC Memory Support | No |
| Expansion Slots (PCIe) | 1 × PCIe x16, 3 × PCIe x1 |
| PCIe x16 (Qty) | 1 |
| PCIe x4 (Qty) | 0 |
| PCIe x1 (Qty) | 3 |
| M.2 Slot Count | 0 × M.2 |
| M.2 Device Compatibility | |
| SATA III Ports | 6 × SATA 6Gbps |
| SATA Express Ports | 0 |
| Wired Networking (LAN) | GbE LAN |
| Onboard Wi-Fi | No |
| Wi-Fi Standard | |
| Rear-Panel USB | USB 3.2 Gen1, USB 2.0 |
| Internal USB 3.2 Gen 2x2 Headers | 0 |
| Internal USB 3.2 Gen 2 Headers | 0 |
| Internal USB 3.2 Gen 1 Headers | 1 |
| Internal USB 2.0 Headers | 2 |
| NVIDIA SLI | No |
| AMD CrossFire | No |
| RAID Capability | Yes |
| Back-Connect Layout | No |
| Manufacturer Part Number (MPN) | H87 PRO4 |
| SKU Code | H87 PRO4 |
| GTIN / EAN | 132017969466 |
Price History (last 12 months)
Plots available price points within the past 12 months.
