Description

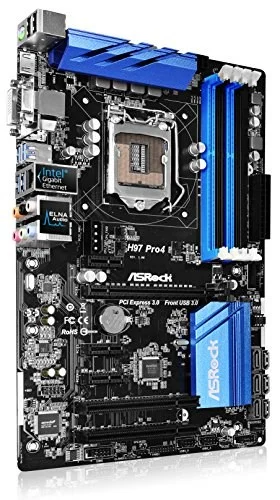

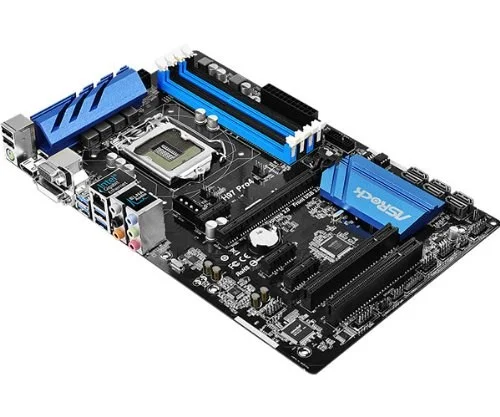

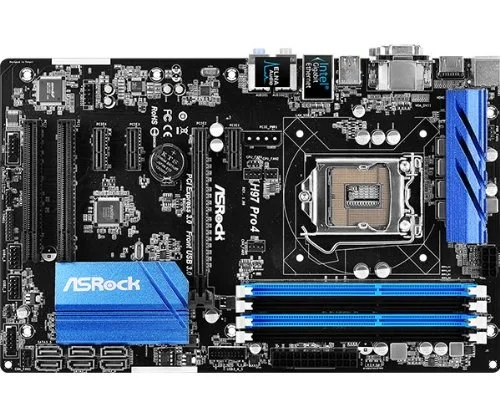

The ASRock H97 Pro4 is a ATX motherboard for LGA1150. It supports DDR3 memory up to 1600 MT/s (OC).
- ASRock Super Alloy
-
- Premium Alloy Choke (Reduces 70% core loss compared to iron powder choke)
-
- NexFET MOSFET
-
- Sapphire Black PCB
- Supports 5th Generation Intel Core i7/i5/i3/Pentium/Celeron Processors (Socket 1150)
- Supports New 4th and 4th Generation Intel Xeon/Core i7/i5/i3/Pentium/Celeron Processors (Socket 1150)
- Solid Capacitor design, Digi Power
- Supports Dual Channel DDR3 1600
- 1 PCIe 3.0 x16, 3 PCIe 2.0 x1, 2 PCI

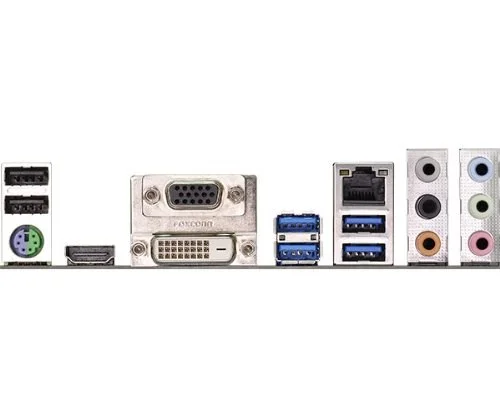

- Graphics Output Options: D-Sub, DVI-D, HDMI
- Supports Triple Monitor
- 7.1 CH HD Audio with Content Protection (Realtek ALC892 Audio Codec), ELNA Audio Caps
- Intel Gigabit LAN
- 6 SATA3, 6 USB 3.0 (2 Front, 4 Rear), 6 USB 2.0 (4 Front, 2 Rear)
- 1 COM Port Header
- Supports ASRock Full Spike Protection, ASRock Cloud, APP Shop, A-Tuning, Full HD UEFI
- Good pricing
- Intel Gigabit LAN
- No M.2 or SATA Express support
- Poor audio chip
Specifications
| Manufacturer | ASRock |
|---|---|
| Model Number | H97 PRO4 |
| Launch Date | July 2014 |
| CPU Socket | LGA1150 |
| Chipset Model | Intel H97 |
| Board Size / Form Factor | ATX |
| Supported Memory Type | DDR3 |
| DIMM Slots | 4 |
| Maximum RAM Capacity | 32 GB |
| Valid DDR4 Speeds | DDR4-1066 / DDR4-1333 / DDR4-1600 (OC) |
| ECC Memory Support | No |
| Expansion Slots (PCIe) | 1 × PCIe x16, 3 × PCIe x1 |
| PCIe x16 (Qty) | 1 |
| PCIe x4 (Qty) | 0 |
| PCIe x1 (Qty) | 3 |
| M.2 Slot Count | 0 × M.2 |
| M.2 Device Compatibility | |
| SATA III Ports | 6 × SATA 6Gbps |
| SATA Express Ports | 0 |
| Wired Networking (LAN) | GbE LAN |
| Onboard Wi-Fi | No |
| Wi-Fi Standard | |
| Rear-Panel USB | USB 3.2 Gen1, USB 2.0 |
| Internal USB 3.2 Gen 2x2 Headers | 0 |
| Internal USB 3.2 Gen 2 Headers | 0 |
| Internal USB 3.2 Gen 1 Headers | 1 |
| Internal USB 2.0 Headers | 2 |
| NVIDIA SLI | No |
| AMD CrossFire | No |
| RAID Capability | Yes |
| Back-Connect Layout | No |
| Manufacturer Part Number (MPN) | H97 PRO4 |
| SKU Code | H97 PRO4 |
| GTIN / EAN | 471767732358 |
