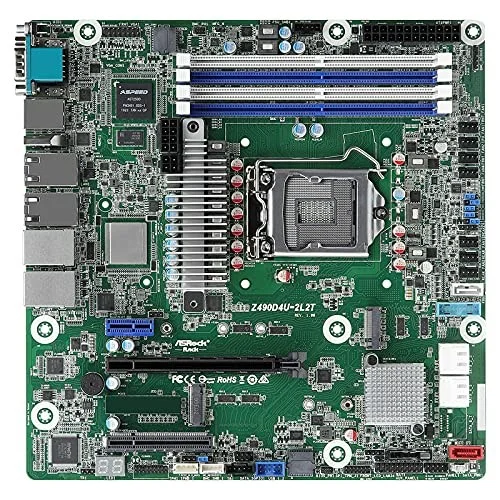

AsRock Rack Z490D4U-2L2T LGA1200 Micro-ATX DDR4 128 GB Motherboard
* PC Pro Guide may earn a small commission when you buy through links on our site. (Affiliate disclosure)
* Prices and availability can change without notice. The price and stock status displayed on Amazon at the time you complete your purchase are the ones that apply.
Description
The AsRock Rack Z490D4U-2L2T is a Micro-ATX motherboard for LGA1200. It supports DDR4 memory up to 2933 MT/s (OC).
- mATX 9.6’ x 9.6’ Support Intel 10th Gen. Core i9/i7/i5/i3, Pentium, Celeron Series Processors Support 4 x DDR4 DIMM slots, two channels DDR4 2933*/2666/2400 non-ECC DIMM Support 1 x PCIe 3.0 x16 + 1 x PCIe 3.0 x8 + 1 x PCIe 3.0 x1 + 2 x M.2 Support 6 x SATA3 by Intel Z490 Support 2 x 10G base-T by Intel X710-AT2 + 2 x GLAN by Intel i210 + 1 x Dedicated IPMI
Specifications
| Manufacturer | ASRock |
|---|---|
| Model Number | Z490D4U-2L2T |
| Launch Date | July 2020 |
| CPU Socket | LGA1200 |
| Chipset Model | Intel Z490 |
| Board Size / Form Factor | Micro-ATX |
| Supported Memory Type | DDR4 |
| DIMM Slots | 4 |
| Maximum RAM Capacity | 128 GB |
| Valid DDR4 Speeds | DDR4-2400 / DDR4-2666 / DDR4-2933 (OC) |
| ECC Memory Support | No |
| Expansion Slots (PCIe) | 1 × PCIe x16, 1 × PCIe x1 |
| PCIe x16 (Qty) | 1 |
| PCIe x4 (Qty) | 0 |
| PCIe x1 (Qty) | 1 |
| M.2 Slot Count | 2 × M.2 |
| M.2 Device Compatibility | 2260 / 2280 / 22110 - M Key, 2260 / 2280 - M Key |
| SATA III Ports | 6 × SATA 6Gbps |
| SATA Express Ports | 0 |
| Wired Networking (LAN) | |
| Onboard Wi-Fi | No |
| Wi-Fi Standard | |

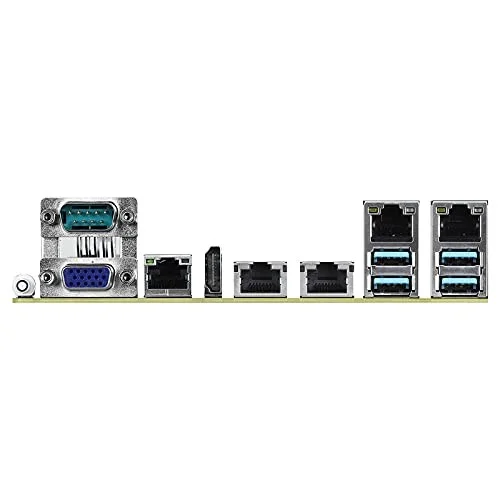

| Rear-Panel USB | USB 3.2 Gen1, USB 2.0 |
| Internal USB 3.2 Gen 2x2 Headers | 0 |
| Internal USB 3.2 Gen 2 Headers | 0 |
| Internal USB 3.2 Gen 1 Headers | 1 |
| Internal USB 2.0 Headers | 1 |
| NVIDIA SLI | No |
| AMD CrossFire | No |
| RAID Capability | Yes |
| Back-Connect Layout | No |
| Manufacturer Part Number (MPN) | Z490D4U-2L2T |
| SKU Code | Z490D4U-2L2T |
| GTIN / EAN | 4710483931901 |
