ASRock WRX80 CREATOR sWRX8 EATX DDR4 2048 GB Motherboard
* PC Pro Guide may earn a small commission when you buy through links on our site. (Affiliate disclosure)
* Prices and availability can change without notice. The price and stock status displayed on Amazon at the time you complete your purchase are the ones that apply.
Description
The ASRock WRX80 CREATOR is a EATX motherboard for sWRX8. It supports DDR4 memory up to 3200 MT/s (OC).
- Supports AMD Ryzen Threadripper PRO 3000WX/5000WX Series Processors
- 8 Power Phase Design, 105A SPS, Premium Power Choke

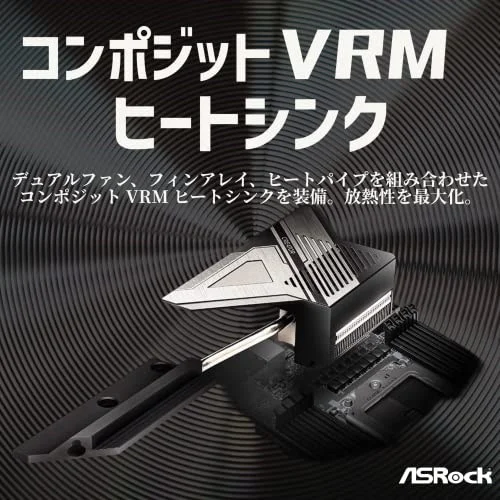

- XXL Aluminum Alloy Heatsink & Heatpipe Design
- 14 Layer Server-Grade Low-Loss PCB
- Supports DDR4 4533+(OC)
- 7 PCIe 4.0 x16
- AMD 4-Way CrossFireX
- 8 SATA3, 1 Hyper M.2 (PCIe Gen4 x4), 1 Hyper M.2 (PCIe Gen4 x4 & SATA3), 1 U.2 (PCIe Gen3 x4)
- 2 Thunderbolt 4 Type-C
- 5 USB 3.2 Gen2 (1 Front Type-C, 4 Rear)
- 6 USB 3.2 Gen1 (4 Front, 2 Rear)
- 7.1 CH HD Audio (Realtek ALC4050H+ALC1220), Nahimic Audio
- 2 Intel X710-AT2 10Gb/s LAN, 1 Dedicated IPMI LAN
- Intel 802.11ax (WiFi 6E) + Bluetooth
Specifications
| Manufacturer | ASRock |
|---|---|
| Model Number | WRX80 CREATOR |
| Launch Date | |
| CPU Socket | sWRX8 |
| Chipset Model | WRX80 |
| Board Size / Form Factor | EATX |
| Supported Memory Type | DDR4 |
| DIMM Slots | 8 |
| Maximum RAM Capacity | 2048 GB |
| Valid DDR4 Speeds | DDR4-2133 / DDR4-2400 / DDR4-2666 / DDR4-2800 / DDR4-2933 / DDR4-3000 / DDR4-3200 (OC) |
| ECC Memory Support | Yes * ECC memory support also depends on the CPU memory controller |
| Expansion Slots (PCIe) | 7 × PCIe x16 |
| PCIe x16 (Qty) | 7 |
| PCIe x4 (Qty) | 0 |
| PCIe x1 (Qty) | 0 |
| M.2 Slot Count | 3 × M.2 |
| M.2 Device Compatibility | 2260 / 2280 / 22110 - M Key, 2260 / 2280 - M Key, 2230 - E Key |
| SATA III Ports | 9 × SATA 6Gbps |
| SATA Express Ports | 0 |
| Wired Networking (LAN) | |
| Onboard Wi-Fi | Yes |
| Wi-Fi Standard | 6 (802.11ax) |
| Rear-Panel USB | USB 3.2 Gen2, USB 3.2 Gen1, USB 2.0 |
| Internal USB 3.2 Gen 2x2 Headers | 0 |
| Internal USB 3.2 Gen 2 Headers | 1 |
| Internal USB 3.2 Gen 1 Headers | 2 |
| Internal USB 2.0 Headers | 1 |
| NVIDIA SLI | No |
| AMD CrossFire | Yes |
| RAID Capability | Yes |
| Back-Connect Layout | No |
| Manufacturer Part Number (MPN) | WRX80 CREATOR |
| SKU Code | WRX80 CREATOR |
| GTIN / EAN | 4710483938771 |
