ASRock X299M EXTREME4 LGA2066 Micro-ATX DDR4 64 GB Motherboard
| Seller | Shipping | Promo | Price |
|---|---|---|---|
|
- | - | |
|
- | - |
N/A
|
|
- | - |
N/A
|
|
- | - |
N/A
|
* PC Pro Guide may earn a small commission when you buy through links on our site. (Affiliate disclosure)
* Prices and availability can change without notice. The price and stock status displayed on Amazon at the time you complete your purchase are the ones that apply.
Description

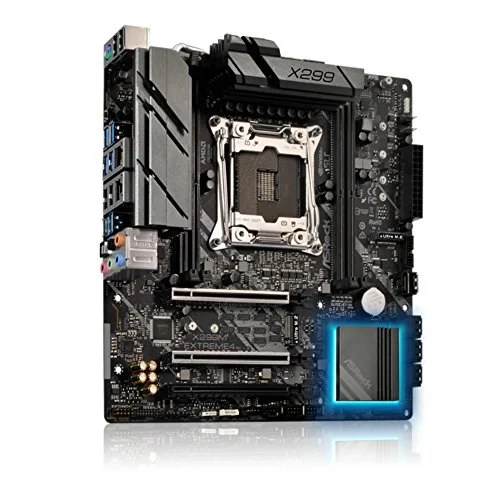

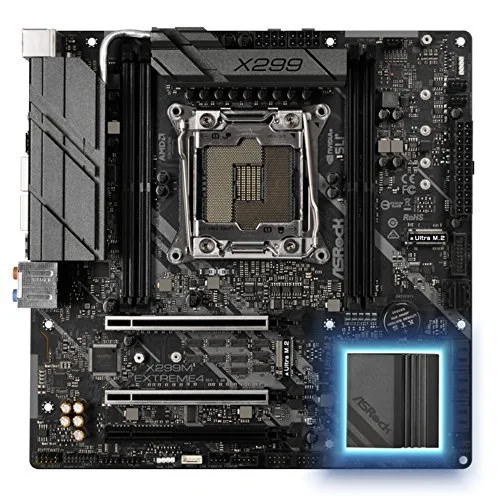

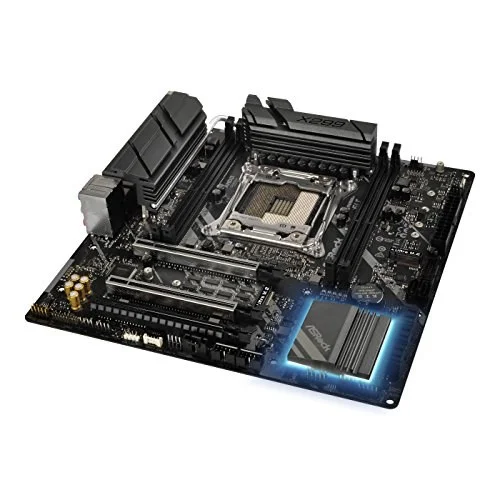

The ASRock X299M EXTREME4 is a Micro-ATX motherboard for LGA2066. It supports DDR4 memory up to 4266 MT/s (OC).
- Supports Intel Core X-Series Processor Family
- Supports Intel Turbo Boost Max Technology 3.0
- 8X SATA3 Ports, Support RAID 0, 1, 5, 10, NCQ, AHCI And Hot Plug
- 3X PCI-Express 3.0 X16 Slots
- 4X DDR4 - 4266+(OC)/ 4200(OC)
Specifications
| Manufacturer | ASRock |
|---|---|
| Model Number | X299M EXTREME4 |
| Launch Date | |
| CPU Socket | LGA2066 |
| Chipset Model | Intel X299 |
| Board Size / Form Factor | Micro-ATX |
| Supported Memory Type | DDR4 |
| DIMM Slots | 4 |
| Maximum RAM Capacity | 64 GB |
| Valid DDR4 Speeds | DDR4-2133 / DDR4-2400 / DDR4-2666 / DDR4-2800 / DDR4-2933 / DDR4-3200 / DDR4-3600 / DDR4-3733 / DDR4-3800 / DDR4-3866 / DDR4-4000 / DDR4-4133 / DDR4-4200 / DDR4-4266 (OC) |
| ECC Memory Support | No |
| Expansion Slots (PCIe) | 3 × PCIe x16 |
| PCIe x16 (Qty) | 3 |
| PCIe x4 (Qty) | 0 |
| PCIe x1 (Qty) | 0 |
| M.2 Slot Count | 2 × M.2 |
| M.2 Device Compatibility | 2230 / 2242 / 2260 / 2280 / 22110 - M Key, 2260 / 2280 - M Key |
| SATA III Ports | 8 × SATA 6Gbps |
| SATA Express Ports | 0 |
| Wired Networking (LAN) | |
| Onboard Wi-Fi | No |
| Wi-Fi Standard | |

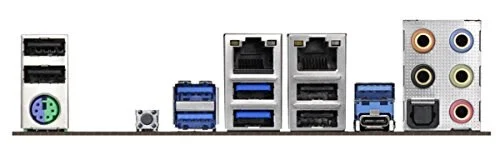

| Rear-Panel USB | USB 3.2 Gen1, USB 2.0 |
| Internal USB 3.2 Gen 2x2 Headers | 0 |
| Internal USB 3.2 Gen 2 Headers | 0 |
| Internal USB 3.2 Gen 1 Headers | 1 |
| Internal USB 2.0 Headers | 2 |
| NVIDIA SLI | Yes |
| AMD CrossFire | Yes |
| RAID Capability | No |
| Back-Connect Layout | No |
| Manufacturer Part Number (MPN) | X299M EXTREME4 |
| SKU Code | X299M EXTREME4 |
| GTIN / EAN | 4717677335026 |
