Description

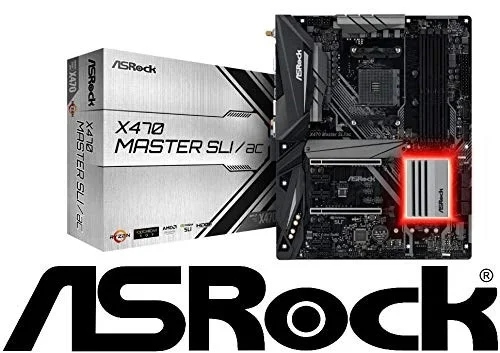

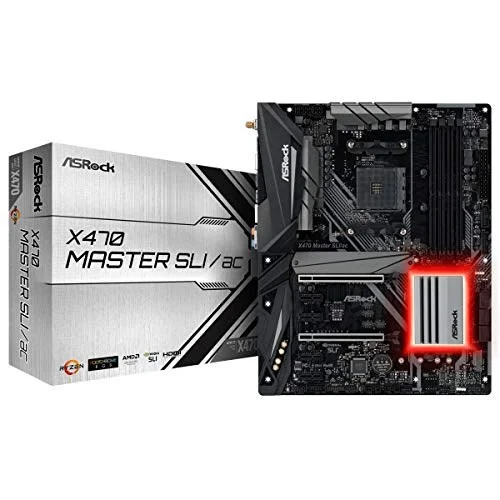

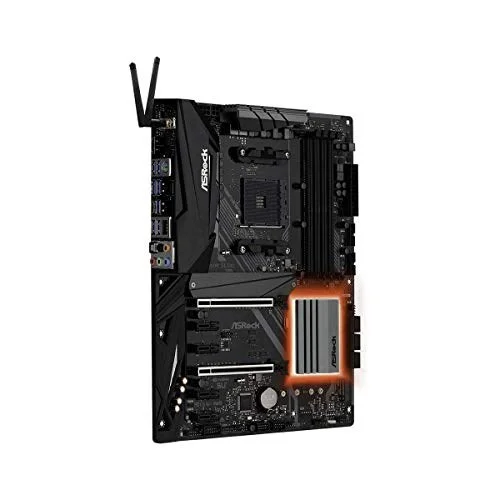

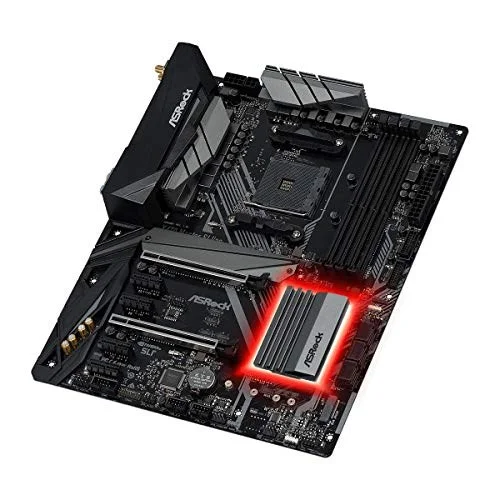

The ASRock X470 Master SLI/AC is a ATX motherboard for AM4. It supports DDR4 memory up to 3466 MT/s (OC).
Specifications
| Manufacturer | ASRock |
|---|---|
| Model Number | X470 MASTER SLI/AC |
| Launch Date | |
| CPU Socket | AMD Socket AM4 |
| Chipset Model | AMD X470 |
| Board Size / Form Factor | ATX |
| Supported Memory Type | DDR4 |
| DIMM Slots | 4 |
| Maximum RAM Capacity | 64 GB |
| Valid DDR4 Speeds | DDR4-2133 / DDR4-2400 / DDR4-2666 / DDR4-2933 / DDR4-3200 / DDR4-3466 (OC) |
| ECC Memory Support | No |
| Expansion Slots (PCIe) | 2 × PCIe x16, 4 × PCIe x1 |
| PCIe x16 (Qty) | 2 |
| PCIe x4 (Qty) | 0 |
| PCIe x1 (Qty) | 4 |
| M.2 Slot Count | 3 × M.2 |
| M.2 Device Compatibility | 2230 / 2242 / 2260 / 2280 / 22110 - M Key, 2230 / 2242 / 2260 / 2280 - M Key, 2230 - E Key |
| SATA III Ports | 6 × SATA 6Gbps |
| SATA Express Ports | 0 |
| Wired Networking (LAN) | |
| Onboard Wi-Fi | Yes |
| Wi-Fi Standard | 5 |

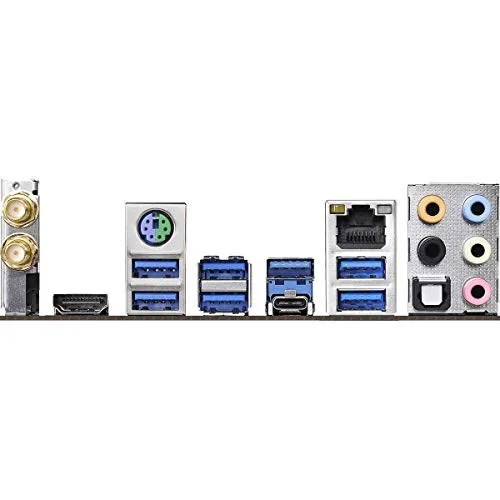

| Rear-Panel USB | USB 3.2 Gen1, USB 2.0 |
| Internal USB 3.2 Gen 2x2 Headers | 0 |
| Internal USB 3.2 Gen 2 Headers | 0 |
| Internal USB 3.2 Gen 1 Headers | 2 |
| Internal USB 2.0 Headers | 2 |
| NVIDIA SLI | Yes |
| AMD CrossFire | Yes |
| RAID Capability | Yes |
| Back-Connect Layout | No |
| Manufacturer Part Number (MPN) | X470 MASTER SLI/AC |
| SKU Code | X470 MASTER SLI/AC |
| GTIN / EAN | 4717677335606 |
