ASRock X570 CREATOR AM4 ATX DDR4 128 GB Motherboard
* PC Pro Guide may earn a small commission when you buy through links on our site. (Affiliate disclosure)
* Prices and availability can change without notice. The price and stock status displayed on Amazon at the time you complete your purchase are the ones that apply.
Description

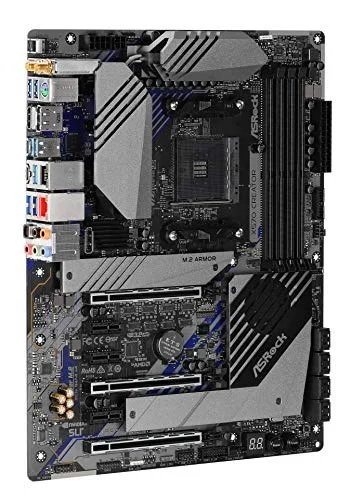

The ASRock X570 CREATOR is a ATX motherboard for AM4. It supports DDR4 memory up to 4666 MT/s (OC).
- BIOS update might require for AMD Zen 3 Ryzen 5000 series CPU AMD X570 Supports AMD AM4 socket Ryzen 2000 and 3000 series processors AMD Ryzen series CPUs (Matisse) support DDR4 4666+(OC)/ 4400(OC)/ 4300(OC)/ 4266(OC)/ 4200(OC)/ 4133(OC)/ 4000(OC)/ 3866(OC)/ 3800(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3200/ 2933/ 2667/ 2400/ 2133 ECC & non-ECC, un-buffered memory AMD Ryzen series CPUs (Pinnacle Ridge) support DDR4 3600+(OC)/ 3466(OC)/ 3200(OC)/ 2933/ 2667/ 2400/ 2133 ECC & non-ECC, un-buffered memor
Specifications
| Manufacturer | ASRock |
|---|---|
| Model Number | X570 CREATOR 90-MXBAW0-A0UAYZ |
| Launch Date | September 2019 |
| CPU Socket | AMD Socket AM4 |
| Chipset Model | Intel X570 |
| Board Size / Form Factor | ATX |
| Supported Memory Type | DDR4 |
| DIMM Slots | 4 |
| Maximum RAM Capacity | 128 GB |
| Valid DDR4 Speeds | DDR4-2133 / DDR4-2400 / DDR4-2666 / DDR4-2933 / DDR4-3000 / DDR4-3200 / DDR4-3466 / DDR4-3600 / DDR4-3733 / DDR4-3800 / DDR4-3866 / DDR4-4000 / DDR4-4133 / DDR4-4200 / DDR4-4266 / DDR4-4300 / DDR4-4400 / DDR4-4666 (OC) |
| ECC Memory Support | Yes * ECC memory support also depends on the CPU memory controller |
| Expansion Slots (PCIe) | 3 × PCIe x16, 3 × PCIe x1 |
| PCIe x16 (Qty) | 3 |
| PCIe x4 (Qty) | 0 |
| PCIe x1 (Qty) | 3 |
| M.2 Slot Count | 3 × M.2 |
| M.2 Device Compatibility | 2260 / 2280 / 22110 - M Key, 2242 / 2260 / 2280 / 22110 - M Key, 2230 - E Key |
| SATA III Ports | 8 × SATA 6Gbps |
| SATA Express Ports | 0 |
| Wired Networking (LAN) | |
| Onboard Wi-Fi | Yes |
| Wi-Fi Standard | 6 (802.11ax) |

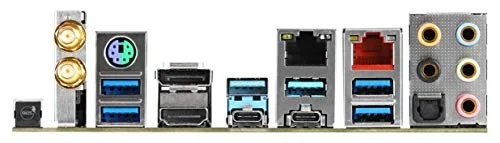

| Rear-Panel USB | USB 3.2 Gen2, USB 3.2 Gen1, USB 2.0 |
| Internal USB 3.2 Gen 2x2 Headers | 0 |
| Internal USB 3.2 Gen 2 Headers | 1 |
| Internal USB 3.2 Gen 1 Headers | 2 |
| Internal USB 2.0 Headers | 1 |
| NVIDIA SLI | Yes |
| AMD CrossFire | Yes |
| RAID Capability | Yes |
| Back-Connect Layout | No |
| Manufacturer Part Number (MPN) | X570 CREATOR |
| SKU Code | X570 CREATOR |
| GTIN / EAN | 4717677339284 |
