ASRock X570 Phantom Gaming-ITX/TB3 AM4 Mini-ITX DDR4 64 GB Motherboard
* PC Pro Guide may earn a small commission when you buy through links on our site. (Affiliate disclosure)
* Prices and availability can change without notice. The price and stock status displayed on Amazon at the time you complete your purchase are the ones that apply.
Description

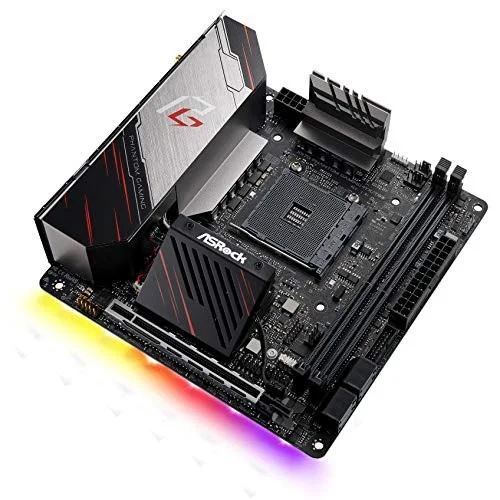

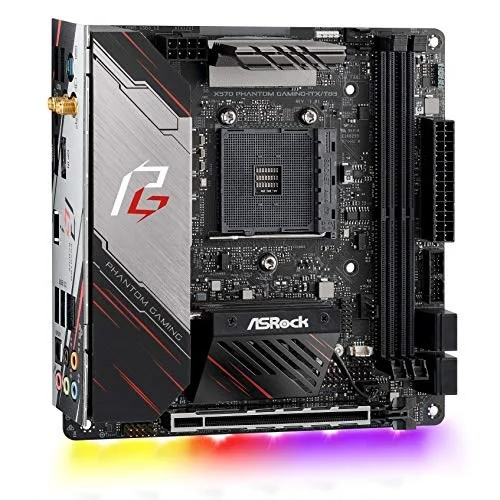

The ASRock X570 Phantom Gaming-ITX/TB3 is a Mini-ITX motherboard for AM4. It supports DDR4 memory up to 4533 MT/s (OC).
- X570 Supports AMD AM4 Socket
- Un-Buffered Memory AMD Ryzen Series Cpus (Picasso) Support DDR4 3466+(OC)/ 3200(OC)/ 2933/ 2667/ 2400/ 2133 Non-ECC, Un-Buffered Memory
- AS Rock X570
- Phantom Gaming-itx/TB3 Mini ITX
Specifications
| Manufacturer | ASRock |
|---|---|
| Model Number | X570 PHANTOM GAMING-ITX/TB3 90-MXBB10-A0UAYZ |
| Launch Date | September 2019 |
| CPU Socket | AMD Socket AM4 |
| Chipset Model | Intel X570 |
| Board Size / Form Factor | Mini-ITX |
| Supported Memory Type | DDR4 |
| DIMM Slots | 2 |
| Maximum RAM Capacity | 64 GB |
| Valid DDR4 Speeds | DDR4-2133 / DDR4-2400 / DDR4-2666 / DDR4-2933 / DDR4-3200 / DDR4-3466 / DDR4-4133 / DDR4-4200 / DDR4-4266 / DDR4-4300 / DDR4-4400 / DDR4-4533 (OC) |
| ECC Memory Support | Yes * ECC memory support also depends on the CPU memory controller |
| Expansion Slots (PCIe) | 1 × PCIe x16 |
| PCIe x16 (Qty) | 1 |
| PCIe x4 (Qty) | 0 |
| PCIe x1 (Qty) | 0 |
| M.2 Slot Count | 2 × M.2 |
| M.2 Device Compatibility | 2280 - M Key, 2230 - E Key |
| SATA III Ports | 4 × SATA 6Gbps |
| SATA Express Ports | 0 |
| Wired Networking (LAN) | |
| Onboard Wi-Fi | Yes |
| Wi-Fi Standard | 6 (802.11ax) |

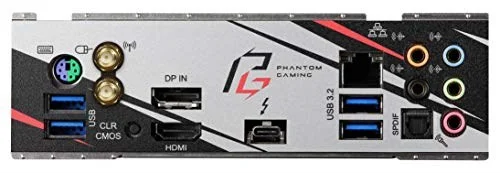

| Rear-Panel USB | USB 3.2 Gen1, USB 2.0 |
| Internal USB 3.2 Gen 2x2 Headers | 0 |
| Internal USB 3.2 Gen 2 Headers | 0 |
| Internal USB 3.2 Gen 1 Headers | 1 |
| Internal USB 2.0 Headers | 1 |
| NVIDIA SLI | No |
| AMD CrossFire | No |
| RAID Capability | Yes |
| Back-Connect Layout | No |
| Manufacturer Part Number (MPN) | X570 PHANTOM GAMING-ITX/TB3 |
| SKU Code | X570 PHANTOM GAMING-ITX/TB3 |
| GTIN / EAN | 4717677339147 |
