ASRock X570 Pro4 AM4 ATX DDR4 128 GB Motherboard
| Seller | Shipping | Promo | Price |
|---|---|---|---|
|
- | - |
N/A
|
|
- | - |
N/A
|
|
- | - |
N/A
|
|
Free | - |
* PC Pro Guide may earn a small commission when you buy through links on our site. (Affiliate disclosure)
* Prices and availability can change without notice. The price and stock status displayed on Amazon at the time you complete your purchase are the ones that apply.
Description

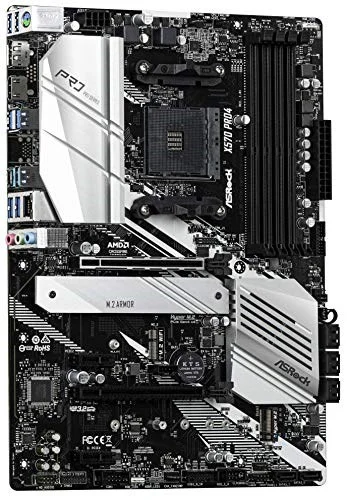

The ASRock X570 Pro4 is a ATX motherboard for AM4. It supports DDR4 memory up to 4666 MT/s (OC).
- Supports AMD AM4 Socket Ryzen. 2000 and 3000 Series processors
- 10 Power Phase Design; Supports DDR4 4066+ (OC); 2 Pie 4. 0 x16, 2 Pie 4. 0 x1, 1 M. 2(Key E) For WIFI
- AMD Quad Crossfire. and Crossfire. Graphics Output Options: HDMI, DisplayPort
-
- 1 CH HD Audio (Relate ALC1200 Audio Codec), ELNA Audio Caps
- 8 SATA3, 1 Hyper M. 2 (Pie Gen4 x4 & SATA3), 1 Hyper M. 2 (Pie Gen4 x4)

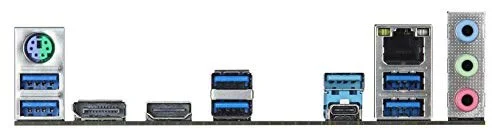

- 2 USB 3. 2 Gen2 (Rear Type A+C), 8 USB 3. 2 Gen1 (2 Front, 6 Rear)
- Intel Gigabit LAN, AS Rock Polychrome SYNC
Specifications
| Manufacturer | ASRock |
|---|---|
| Model Number | X570 Pro4 90-MXBAT0-A0UAYZ |
| Launch Date | July 2019 |
| CPU Socket | AMD Socket AM4 |
| Chipset Model | Intel X570 |
| Board Size / Form Factor | ATX |
| Supported Memory Type | DDR4 |
| DIMM Slots | 4 |
| Maximum RAM Capacity | 128 GB |
| Valid DDR4 Speeds | DDR4-2133 / DDR4-2400 / DDR4-2666 / DDR4-2933 / DDR4-3200 / DDR4-3466 / DDR4-3600 / DDR4-3733 / DDR4-3800 / DDR4-3866 / DDR4-4000 / DDR4-4133 / DDR4-4200 / DDR4-4266 / DDR4-4300 / DDR4-4400 / DDR4-4666 (OC) |
| ECC Memory Support | Yes * ECC memory support also depends on the CPU memory controller |
| Expansion Slots (PCIe) | 2 × PCIe x16, 2 × PCIe x1 |
| PCIe x16 (Qty) | 2 |
| PCIe x4 (Qty) | 0 |
| PCIe x1 (Qty) | 2 |
| M.2 Slot Count | 3 × M.2 |
| M.2 Device Compatibility | 2242 / 2260 / 2280 / 22110 - M Key, 2242 / 2260 / 2280 / 22110 - M Key, 2230 - E Key |
| SATA III Ports | 8 × SATA 6Gbps |
| SATA Express Ports | 0 |
| Wired Networking (LAN) | GbE LAN |
| Onboard Wi-Fi | No |
| Wi-Fi Standard | |
| Rear-Panel USB | USB 3.2 Gen1, USB 2.0 |
| Internal USB 3.2 Gen 2x2 Headers | 0 |
| Internal USB 3.2 Gen 2 Headers | 0 |
| Internal USB 3.2 Gen 1 Headers | 2 |
| Internal USB 2.0 Headers | 1 |
| NVIDIA SLI | No |
| AMD CrossFire | Yes |
| RAID Capability | Yes |
| Back-Connect Layout | No |
| Manufacturer Part Number (MPN) | X570 Pro4 |
| SKU Code | X570 Pro4 |
| GTIN / EAN | 4717677338874 |
