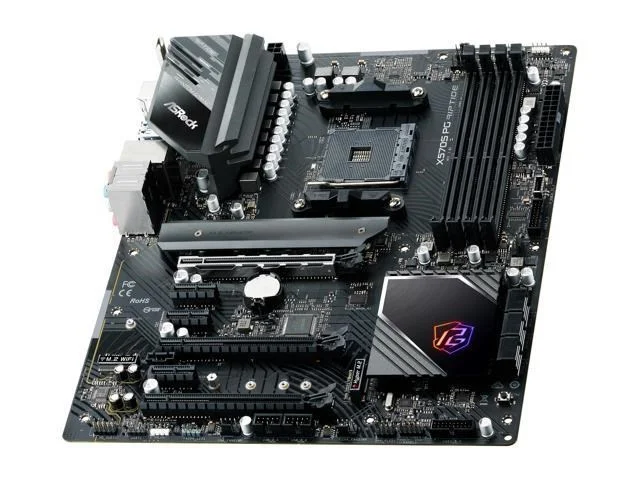

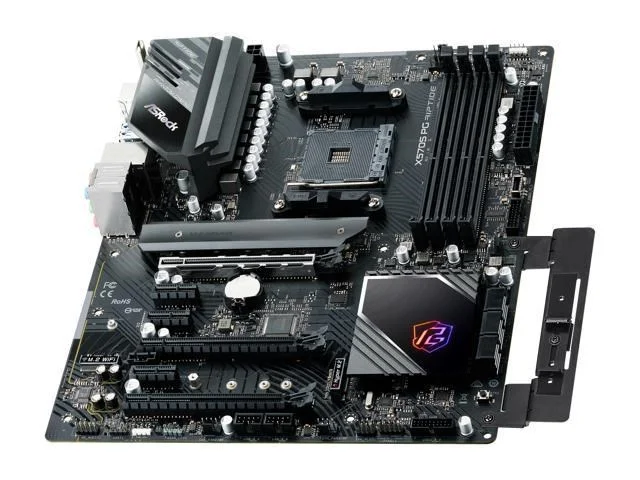

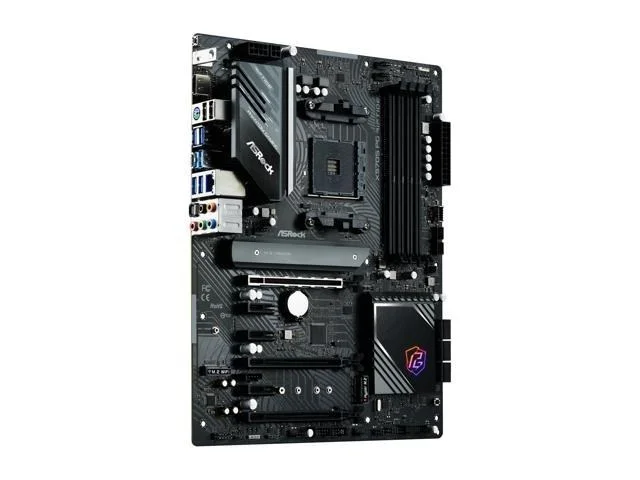

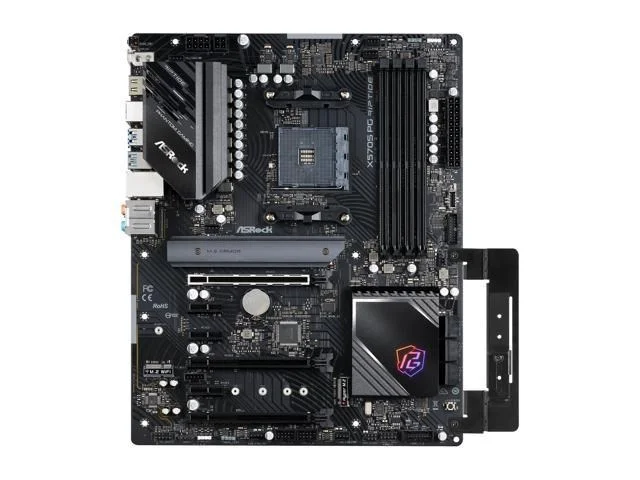

ASRock X570S PG RIPTIDE AM4 ATX DDR4 128 GB Motherboard
| Seller | Shipping | Promo | Price |
|---|---|---|---|
|
- | - |
N/A
|
|
- | - |
N/A
|
|
- | - |
N/A
|
|
£51.73 | - |
* PC Pro Guide may earn a small commission when you buy through links on our site. (Affiliate disclosure)
* Prices and availability can change without notice. The price and stock status displayed on Amazon at the time you complete your purchase are the ones that apply.
Description
The ASRock X570S PG RIPTIDE is a ATX motherboard for AM4. It supports DDR4 memory up to 5000 MT/s (OC).
- AMD X570
- Supports AMD Ryzen 5000 Series / 4000 G-Series / 3000 Series / 2000 Series Processors
- DDR4 5000+(OC) / 4933(OC) / 4866(OC) / 4800(OC) / 4733(OC) / 4666(OC) / 4600(OC) / 4533(OC) / 4466(OC) / 4400(OC) / 4333(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3200 / 2933 / 2667 / 2400 / 2133 (AMD Ryzen series CPUs (Vermeer&Matisse), APUs (Renoir))*
- DDR4 3600+(OC) / 3466(OC) / 3200(OC) / 2933 / 2667 / 2400 / 2133 (AMD Ryzen series CPUs (Pinnacle Ridge))
- DDR4 3466+(OC) / 3200(OC) / 2933 / 2667 / 2400 / 2133 (AMD Ryzen series APUs (Picasso))*
-
- For Ryzen Series APUs (Picasso and Renoir), ECC is only supported with PRO CPUs.
Specifications
| Manufacturer | ASRock |
|---|---|
| Model Number | X570S PG RIPTIDE |
| Launch Date | |
| CPU Socket | AMD Socket AM4 |
| Chipset Model | Intel X570 |
| Board Size / Form Factor | ATX |
| Supported Memory Type | DDR4 |
| DIMM Slots | 4 |
| Maximum RAM Capacity | 128 GB |
| Valid DDR4 Speeds | DDR4-2133 / DDR4-2400 / DDR4-2666 / DDR4-2933 / DDR4-3200 / DDR4-3466 / DDR4-3600 / DDR4-3733 / DDR4-3800 / DDR4-3866 / DDR4-4000 / DDR4-4133 / DDR4-4200 / DDR4-4266 / DDR4-4333 / DDR4-4400 / DDR4-4533 / DDR4-4600 / DDR4-4666 / DDR4-4733 / DDR4-4800 / DDR4-4866 / DDR4-4933 / DDR4-5000 (OC) |
| ECC Memory Support | No |
| Expansion Slots (PCIe) | 3 × PCIe x16, 3 × PCIe x1 |
| PCIe x16 (Qty) | 3 |
| PCIe x4 (Qty) | 0 |
| PCIe x1 (Qty) | 3 |
| M.2 Slot Count | 3 × M.2 |
| M.2 Device Compatibility | 2230 / 2242 / 2260 / 2280 - M Key, 2230 / 2242 / 2260 / 2280 - M Key, 2230 - E Key |
| SATA III Ports | 6 × SATA 6Gbps |
| SATA Express Ports | 0 |
| Wired Networking (LAN) | |
| Onboard Wi-Fi | No |
| Wi-Fi Standard | |
| Rear-Panel USB | USB 3.2 Gen2, USB 3.2 Gen1, USB 2.0 |
| Internal USB 3.2 Gen 2x2 Headers | 0 |
| Internal USB 3.2 Gen 2 Headers | 1 |
| Internal USB 3.2 Gen 1 Headers | 2 |
| Internal USB 2.0 Headers | 2 |
| NVIDIA SLI | No |
| AMD CrossFire | Yes |
| RAID Capability | Yes |
| Back-Connect Layout | No |
| Manufacturer Part Number (MPN) | X570S PG RIPTIDE |
| SKU Code | X570S PG RIPTIDE |
| GTIN / EAN | 4710483935336 |
Price History (last 12 months)
Plots available price points within the past 12 months.
