Description

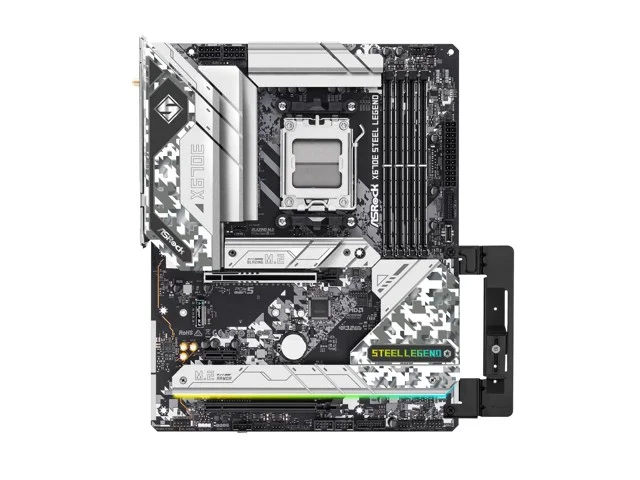

The ASRock X670E Steel Legend is a ATX motherboard for AM5. It supports DDR5 memory up to 6400 MT/s (OC).
- ASRock X670E Steel Legend AM5 DDR5 AMD Ryzen 7000 X670E SATA 6Gb/s ATX Motherboard Number of Memory Slots: 4x288pin (DDR5) Memory Standard: DDR5 6600+(OC)* PCI Express 3.0 x16: 1 x PCI Express 3.0 x16* * PCIE3 supports x4 mode. * Supports NVMe SSD as boot disks. * Actual support may vary by CPU. Onboard Video Chipset: Supported only by CPU with integrated graphic Audio Chipset: Realtek ALC1220 PCI Express x1: 1 x PCIe 3.0 x1* * Supports NVMe SSD as boot disks. Audio Channels: 7.1 Channels Max LAN Speed: 10/100/1000/2500Mbps + 10/100/1000Mbps
Specifications
| Manufacturer | ASRock |
|---|---|
| Model Number | X670E Steel Legend |
| Launch Date | |
| CPU Socket | AM5 |
| Chipset Model | Intel X670E |
| Board Size / Form Factor | ATX |
| Supported Memory Type | DDR5 |
| DIMM Slots | 4 |
| Maximum RAM Capacity | 192 GB |
| Valid DDR4 Speeds | DDR5-4800 / DDR5-5000 / DDR5-5200 / DDR5-5400 / DDR5-5600 / DDR5-5800 / DDR5-6000 / DDR5-6200 / DDR5-6400 (OC) |
| ECC Memory Support | No |
| Expansion Slots (PCIe) | 2 × PCIe x16, 1 × PCIe x1 |
| PCIe x16 (Qty) | 2 |
| PCIe x4 (Qty) | 0 |
| PCIe x1 (Qty) | 1 |
| M.2 Slot Count | 5 × M.2 |
| M.2 Device Compatibility | 2260 / 2280 - M Key, 2242 / 2260 / 2280 - M Key, 2230 / 2242 / 2260 / 2280 - M Key, 2260 / 2280 - M Key, E-key - E Key |
| SATA III Ports | 4 × SATA 6Gbps |
| SATA Express Ports | 0 |
| Wired Networking (LAN) | |
| Onboard Wi-Fi | Yes |
| Wi-Fi Standard | 6E (802.11ax, 6 GHz) |

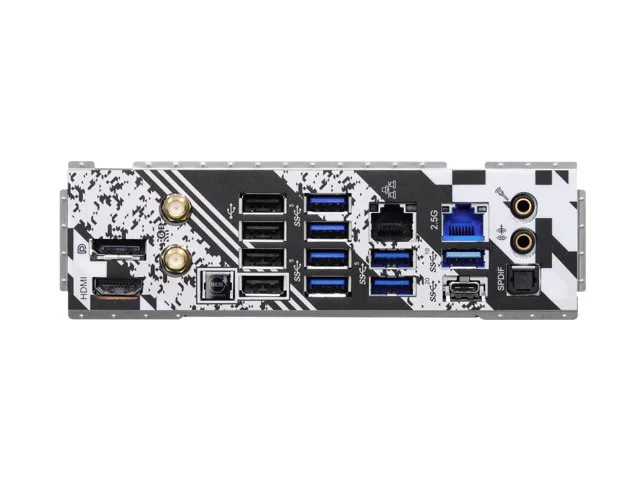

| Rear-Panel USB | USB 3.2 Gen2x2, USB 3.2 Gen1, USB 2.0 |
| Internal USB 3.2 Gen 2x2 Headers | 1 |
| Internal USB 3.2 Gen 2 Headers | 0 |
| Internal USB 3.2 Gen 1 Headers | 2 |
| Internal USB 2.0 Headers | 2 |
| NVIDIA SLI | No |
| AMD CrossFire | Yes |
| RAID Capability | Yes |
| Back-Connect Layout | No |
| Manufacturer Part Number (MPN) | X670E Steel Legend |
| SKU Code | X670E Steel Legend |
| GTIN / EAN | 4710483940323 |
