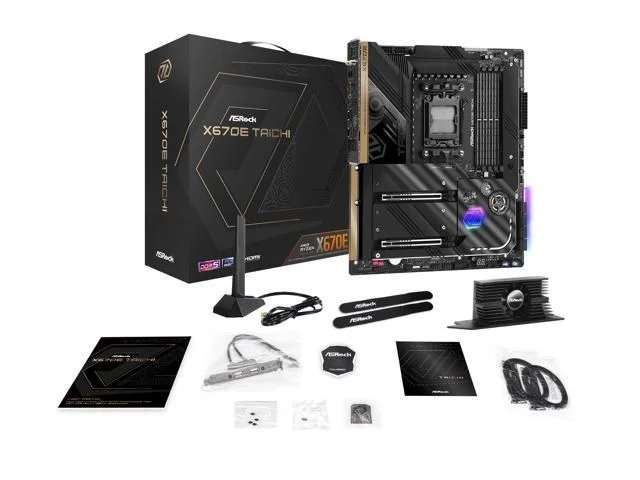

ASRock X670E Taichi AM5 EATX DDR5 192 GB Motherboard
* PC Pro Guide may earn a small commission when you buy through links on our site. (Affiliate disclosure)
* Prices and availability can change without notice. The price and stock status displayed on Amazon at the time you complete your purchase are the ones that apply.
Description

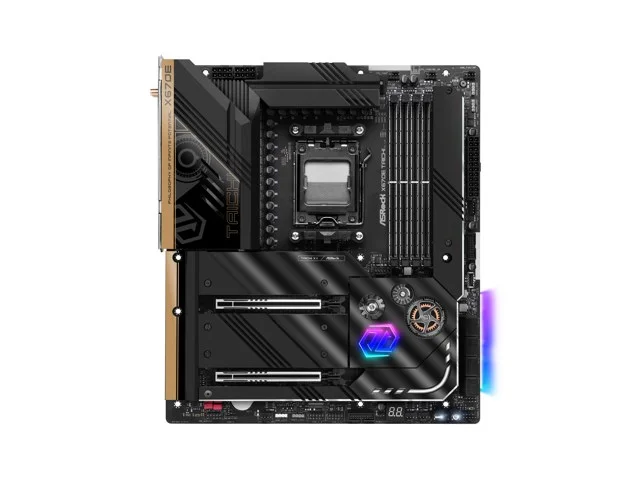

The ASRock X670E Taichi is a EATX motherboard for AM5. It supports DDR5 memory up to 6400 MT/s (OC).
- ASRock X670E Taichi AM5 DDR5 AMD Ryzen 7000 X670E SATA 6Gb/s Extended ATX Motherboard Number of Memory Slots: 4x288pin (DDR5) Memory Standard: DDR5 6600+ (OC)* 1DPC 1R Up to 6600+ (OC), 4800 Natively. 1DPC 2R Up to 6000+ (OC), 4800 Natively. 2DPC 1R Up to 6000+ (OC), 4000 Natively. Onboard Video Chipset: Supported only by CPU with integrated graphic Audio Chipset: Realtek ALC4082 Audio Channels: 5.1 Channels Max LAN Speed: 10/100/1000/2500Mbps Maximum Memory Supported: 128GB Channel Supported: Dual Channel
Specifications
| Manufacturer | ASRock |
|---|---|
| Model Number | X670E Taichi |
| Launch Date | |
| CPU Socket | AM5 |
| Chipset Model | Intel X670E |
| Board Size / Form Factor | EATX |
| Supported Memory Type | DDR5 |
| DIMM Slots | 4 |
| Maximum RAM Capacity | 192 GB |
| Valid DDR4 Speeds | DDR5-4800 / DDR5-5000 / DDR5-5200 / DDR5-5400 / DDR5-5600 / DDR5-5800 / DDR5-6000 / DDR5-6200 / DDR5-6400 (OC) |
| ECC Memory Support | No |
| Expansion Slots (PCIe) | 2 × PCIe x16 |
| PCIe x16 (Qty) | 2 |
| PCIe x4 (Qty) | 0 |
| PCIe x1 (Qty) | 0 |
| M.2 Slot Count | 5 × M.2 |
| M.2 Device Compatibility | 2280 - M Key, 2230 / 2242 / 2260 / 2280 / 22110 - M Key, 2280 - M Key, 2280 - M Key, 2230 - E Key |
| SATA III Ports | 4 × SATA 6Gbps |
| SATA Express Ports | 0 |
| Wired Networking (LAN) | |
| Onboard Wi-Fi | Yes |
| Wi-Fi Standard | 6E (802.11ax, 6 GHz) |

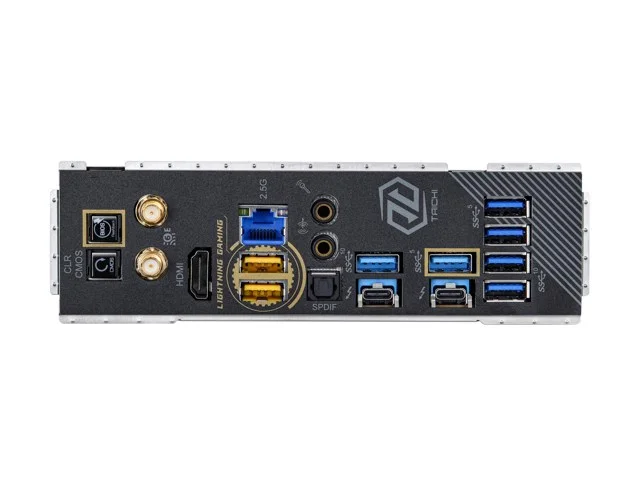

| Rear-Panel USB | USB 3.2 Gen2x2, USB 3.2 Gen1, USB 2.0 |
| Internal USB 3.2 Gen 2x2 Headers | 1 |
| Internal USB 3.2 Gen 2 Headers | 0 |
| Internal USB 3.2 Gen 1 Headers | 2 |
| Internal USB 2.0 Headers | 2 |
| NVIDIA SLI | No |
| AMD CrossFire | Yes |
| RAID Capability | No |
| Back-Connect Layout | No |
| Manufacturer Part Number (MPN) | X670E Taichi |
| SKU Code | X670E Taichi |
| GTIN / EAN | 4710483940132 |
