ASRock X79 Extreme9 LGA2011 ATX DDR3 64 GB Motherboard
| Seller | Shipping | Promo | Price |
|---|---|---|---|
|
- | - | |
|
- | - |
N/A
|
|
- | - |
N/A
|
|
- | - |
N/A
|
* PC Pro Guide may earn a small commission when you buy through links on our site. (Affiliate disclosure)
* Prices and availability can change without notice. The price and stock status displayed on Amazon at the time you complete your purchase are the ones that apply.
Description

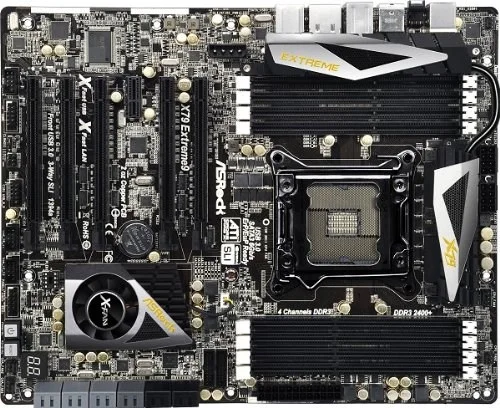

The ASRock X79 Extreme9 is a ATX motherboard for LGA2011. It supports DDR3 memory up to 2400 MT/s (OC).
- CPU: Socket 2011 Supports Intel Core i7 Processor; Support Hyper-Threading & Untied Overclocking Technology
- Chipset: Intel X79
- Memory: 8X DDR3-2400+(OC)/2133(OC)/1866(OC)/1600/1333/1066 DIMMs, Quad Channel, non-ECC, un-buffered, Maxi capacity up to 64GB
- Slots: 5X PCI-Express 3.0 X16 Slots(run at X8, NVIDIA Quad/ 3-Way/ SLI & AMD Quad/ 3-Way/ CrossFireX), 1X PCI-Express 2.0 X1 Slot
- SATA: 4X SATA2 Ports, Support RAID 0/ 1/ 5/ 10; 8X SATA3 Ports(two Support RAID 0/ 1/ 5/ 10, six Support RAID 0/ 1); 2X eSATA3 Ports
- Ports: 12X USB 2.0 Ports (6 rear, 6 by headers); 8X USB 3.0 Ports (4 rear, 4 by headers); 1X PS/2 Port; 2X eSATA3 Ports; 2X IEEE 1394a Ports (1 rear, 1 by headers); 1X RJ45 LAN Port
- LAN: Broadcom BCM57781 PCI-Express X1 Gigabit Ethernet Controller
Specifications
| Manufacturer | ASRock |
|---|---|
| Model Number | X79 Extreme9 X79-EXT9 |
| Launch Date | February 2012 |
| CPU Socket | LGA2011 |
| Chipset Model | Intel X79 |
| Board Size / Form Factor | ATX |
| Supported Memory Type | DDR3 |
| DIMM Slots | 8 |
| Maximum RAM Capacity | 64 GB |
| Valid DDR4 Speeds | DDR4-1066 / DDR4-1333 / DDR4-1600 / DDR4-1866 / DDR4-2133 / DDR4-2400 (OC) |
| ECC Memory Support | No |
| Expansion Slots (PCIe) | 5 × PCIe x16, 1 × PCIe x1 |
| PCIe x16 (Qty) | 5 |
| PCIe x4 (Qty) | 0 |
| PCIe x1 (Qty) | 1 |
| M.2 Slot Count | 0 × M.2 |
| M.2 Device Compatibility | |
| SATA III Ports | 8 × SATA 6Gbps |
| SATA Express Ports | 0 |
| Wired Networking (LAN) | |
| Onboard Wi-Fi | No |
| Wi-Fi Standard | |
| Rear-Panel USB | USB 3.2 Gen1, USB 2.0 |
| Internal USB 3.2 Gen 2x2 Headers | 0 |
| Internal USB 3.2 Gen 2 Headers | 0 |
| Internal USB 3.2 Gen 1 Headers | 2 |
| Internal USB 2.0 Headers | 3 |
| NVIDIA SLI | Yes |
| AMD CrossFire | Yes |
| RAID Capability | Yes |
| Back-Connect Layout | No |
| Manufacturer Part Number (MPN) | X79 Extreme9 |
| SKU Code | X79 Extreme9 |
| GTIN / EAN | 4711140878980 |
