ASRock X99 Extreme4 LGA2011-3 ATX DDR4 128 GB Motherboard
| Seller | Shipping | Promo | Price |
|---|---|---|---|
|
- | - | |
|
- | - |
N/A
|
|
- | - |
N/A
|
|
- | - |
N/A
|
* PC Pro Guide may earn a small commission when you buy through links on our site. (Affiliate disclosure)
* Prices and availability can change without notice. The price and stock status displayed on Amazon at the time you complete your purchase are the ones that apply.
Description

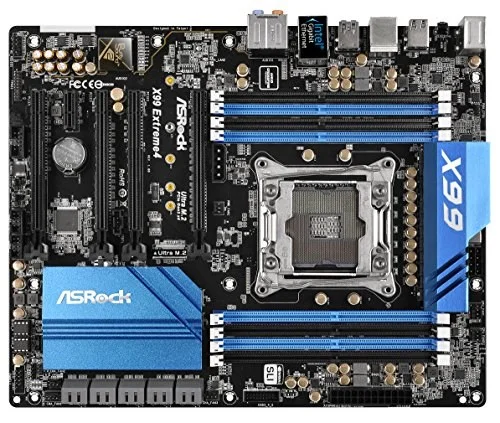

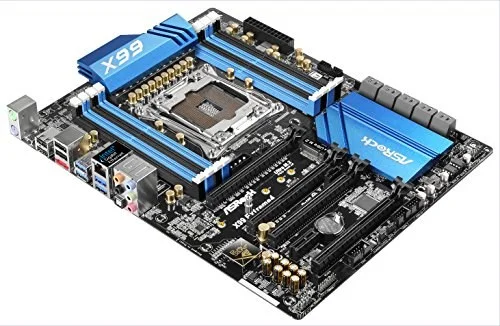

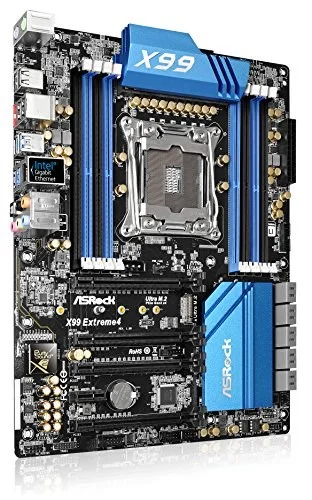

The ASRock X99 Extreme4 is a ATX motherboard for LGA2011-3. It supports DDR4 memory up to 3200 MT/s (OC).
- ASRock Super Alloy
-
- XXL Aluminum Alloy Heatsink
-
- Premium 60A Power Choke
-
- Premium Memory Alloy Choke
-
- Ultra Dual-N MOSFET (UDM)
-
- Nichicon 12K Platinum Caps
-
- Sapphire Black PCB
- Supports Intel Core i7 and Xeon 18-Core Processors Family for the LGA 2011-3 Socket
- Digi Power, 12 Power Phase design
- Supports Quad Channel DDR4 3000+(OC) memory with max. capacity up to 128GB
- Supports ECC*, RDIMM Memory (*ECC is supported with Intel Xeon processors)
- 3 PCIe 3.0 x16, 1 PCIe 2.0 x16, 1 PCIe 2.0 x1
- Supports AMD 3-Way CrossFireX and NVIDIA 3-Way SLI
- 7.1 CH HD Audio with Content Protection (Realtek ALC1150 Audio Codec), Supports Purity Sound 2 & DTS Connect
- Intel Gigabit LAN
- 10 SATA3, 1 eSATA, 1 Ultra M.2 (PCIe Gen3 x4 & SATA3)

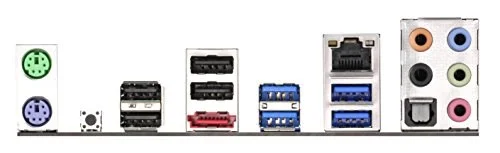

- 6 USB 3.0 (2 Front, 4 Rear), 8 USB 2.0 (4 Front, 4 Back)
- 1 COM Port Header, 1 Thunderbolt AIC Connector
- Supports ASRock HDD Saver Technology, Full Spike Protection, APP Shop
Specifications
| Manufacturer | ASRock |
|---|---|
| Model Number | X99 EXTREME4 |
| Launch Date | |
| CPU Socket | LGA2011-3 |
| Chipset Model | Intel X99 |
| Board Size / Form Factor | ATX |
| Supported Memory Type | DDR4 |
| DIMM Slots | 8 |
| Maximum RAM Capacity | 128 GB |
| Valid DDR4 Speeds | DDR4-2133 / DDR4-2400 / DDR4-2800 / DDR4-3200 (OC) |
| ECC Memory Support | No |
| Expansion Slots (PCIe) | 4 × PCIe x16, 1 × PCIe x1 |
| PCIe x16 (Qty) | 4 |
| PCIe x4 (Qty) | 0 |
| PCIe x1 (Qty) | 1 |
| M.2 Slot Count | 1 × M.2 |
| M.2 Device Compatibility | 2230 / 2242 / 2260 / 2280 / 22110 - M Key |
| SATA III Ports | 8 × SATA 6Gbps |
| SATA Express Ports | 1 |
| Wired Networking (LAN) | GbE LAN |
| Onboard Wi-Fi | No |
| Wi-Fi Standard | |
| Rear-Panel USB | USB 3.2 Gen1, USB 2.0 |
| Internal USB 3.2 Gen 2x2 Headers | 0 |
| Internal USB 3.2 Gen 2 Headers | 0 |
| Internal USB 3.2 Gen 1 Headers | 1 |
| Internal USB 2.0 Headers | 2 |
| NVIDIA SLI | Yes |
| AMD CrossFire | Yes |
| RAID Capability | Yes |
| Back-Connect Layout | No |
| Manufacturer Part Number (MPN) | X99 EXTREME4 |
| SKU Code | X99 EXTREME4 |
| GTIN / EAN | 4717677324396 |
