ASRock Z270 Extreme4 LGA1151 ATX DDR4 64 GB Motherboard
| Seller | Shipping | Promo | Price |
|---|---|---|---|
|
- | - | |
|
- | - |
N/A
|
|
- | - |
N/A
|
|
- | - |
N/A
|
* PC Pro Guide may earn a small commission when you buy through links on our site. (Affiliate disclosure)
* Prices and availability can change without notice. The price and stock status displayed on Amazon at the time you complete your purchase are the ones that apply.
Description

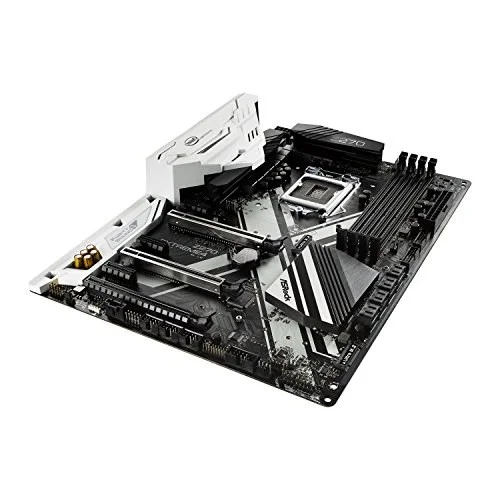

The ASRock Z270 Extreme4 is a ATX motherboard for LGA1151. It supports DDR4 memory up to 3866 MT/s (OC).
- ASRock Super Alloy
- Supports 7th and 6th Generation Intel Core i7/i5/i3/Pentium/Celeron Processors (Socket 1151)
- Supports DDR4 3866+(OC)
- 3 PCIe 3.0 x 16, 3 PCIe 3.0 x1, 1 M.2 Socket (Key E)
- NVIDIA Quad SLI, AMD 3-Way CrossFireX
- Graphics Output Options: HDMI, DVI-D, D-Sub
- Supports Triple Monitor
- 7.1 CH HD Audio (Realtek ALC1220 Audio Codec), Supports Purity Sound 4 & DTS Connect
- 8 SATA3, 2 Ultra M.2 (PCIe Gen3 x4 & SATA3)
- 2 USB 3.1 10Gb/s (1 Type-A + 1 Type-C), 8 USB 3.0 (4 Front, 4 Rear)
- ASRock AURA RGB LED
Specifications
| Manufacturer | ASRock |
|---|---|
| Model Number | Z270 Extreme4 |
| Launch Date | January 2017 |
| CPU Socket | LGA1151 |
| Chipset Model | Intel Z270 |
| Board Size / Form Factor | ATX |
| Supported Memory Type | DDR4 |
| DIMM Slots | 4 |
| Maximum RAM Capacity | 64 GB |
| Valid DDR4 Speeds | DDR4-2133 / DDR4-2400 / DDR4-2800 / DDR4-2933 / DDR4-3200 / DDR4-3600 / DDR4-3733 / DDR4-3866 (OC) |
| ECC Memory Support | No |
| Expansion Slots (PCIe) | 3 × PCIe x16, 3 × PCIe x1 |
| PCIe x16 (Qty) | 3 |
| PCIe x4 (Qty) | 0 |
| PCIe x1 (Qty) | 3 |
| M.2 Slot Count | 3 × M.2 |
| M.2 Device Compatibility | 2230 - E Key, 2230 / 2242 / 2260 / 2280 - M Key, 2230 / 2242 / 2260 / 2280 / 22110 - M Key |
| SATA III Ports | 8 × SATA 6Gbps |
| SATA Express Ports | 0 |
| Wired Networking (LAN) | |
| Onboard Wi-Fi | No |
| Wi-Fi Standard | |

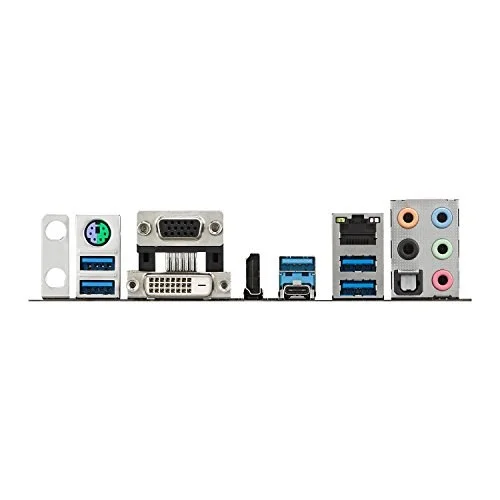

| Rear-Panel USB | USB 3.2 Gen1, USB 2.0 |
| Internal USB 3.2 Gen 2x2 Headers | 0 |
| Internal USB 3.2 Gen 2 Headers | 0 |
| Internal USB 3.2 Gen 1 Headers | 2 |
| Internal USB 2.0 Headers | 3 |
| NVIDIA SLI | Yes |
| AMD CrossFire | Yes |
| RAID Capability | Yes |
| Back-Connect Layout | No |
| Manufacturer Part Number (MPN) | Z270 Extreme4 |
| SKU Code | Z270 Extreme4 |
| GTIN / EAN | 4717677332391 |
