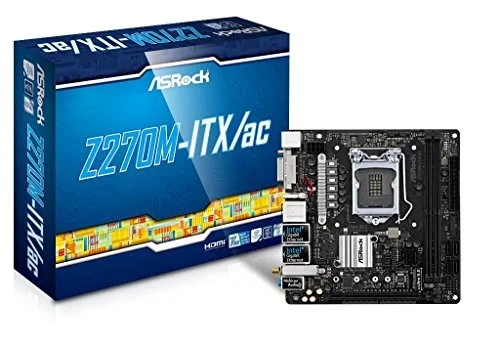

ASRock Z270M-ITX/ac LGA1151 Mini-ITX DDR4 32 GB Motherboard
| Seller | Shipping | Promo | Price |
|---|---|---|---|
|
- | - | |
|
- | - |
N/A
|
|
- | - |
N/A
|
|
- | - |
N/A
|
* PC Pro Guide may earn a small commission when you buy through links on our site. (Affiliate disclosure)
* Prices and availability can change without notice. The price and stock status displayed on Amazon at the time you complete your purchase are the ones that apply.
Description

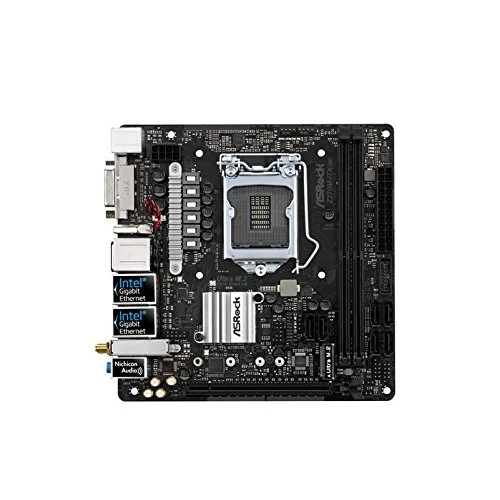

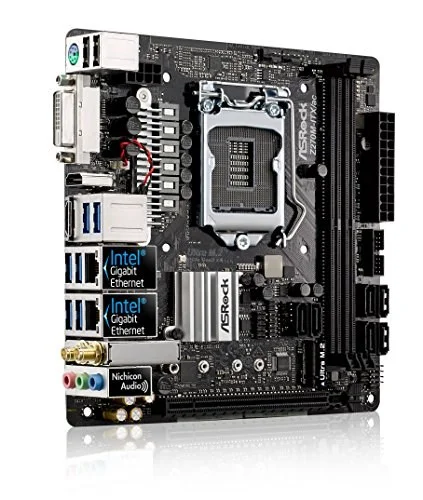

The ASRock Z270M-ITX/ac is a Mini-ITX motherboard for LGA1151. It supports DDR4 memory up to 3733 MT/s (OC).
- ASRock Super Alloy
- Supports 7th and 6th Generation Intel Core i7/i5/i3/Pentium/Celeron Processors (Socket 1151)
- Supports DDR4 3733+(OC)
- 1 PCIe 3.0 x16, 1 PCIe 2.0 x1

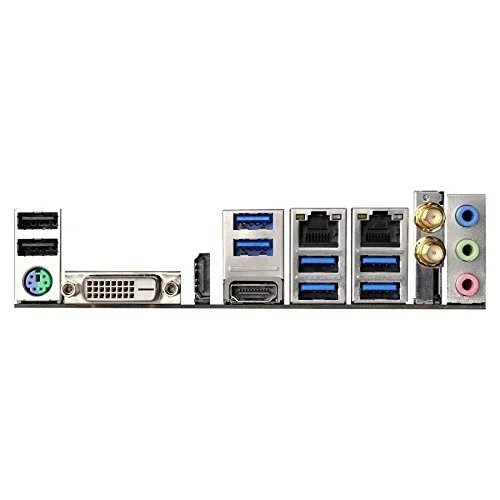

- Graphics Output Options: 2 x HDMI, DVI-D
- Supports Triple Monitor
- 7.1 CH HD Audio (Realtek ALC892 Audio Codec), Nichicon Fine Gold Series Audio Caps
- 6 SATA3, 1 Ultra M.2
- 8 USB 3.0 (2 Front, 6 Rear)
- Dual Intel Gigabit LAN
- Intel 802.11ac WiFi
Specifications
| Manufacturer | ASRock |
|---|---|
| Model Number | Z270M-ITX/ac |
| Launch Date | January 2017 |
| CPU Socket | LGA1151 |
| Chipset Model | Intel Z270 |
| Board Size / Form Factor | Mini-ITX |
| Supported Memory Type | DDR4 |
| DIMM Slots | 2 |
| Maximum RAM Capacity | 32 GB |
| Valid DDR4 Speeds | DDR4-2133 / DDR4-2400 / DDR4-2800 / DDR4-2933 / DDR4-3200 / DDR4-3600 / DDR4-3733 (OC) |
| ECC Memory Support | No |
| Expansion Slots (PCIe) | 1 × PCIe x16 |
| PCIe x16 (Qty) | 1 |
| PCIe x4 (Qty) | 0 |
| PCIe x1 (Qty) | 0 |
| M.2 Slot Count | 1 × M.2 |
| M.2 Device Compatibility | 2230 / 2242 / 2260 / 2280 - M Key |
| SATA III Ports | 6 × SATA 6Gbps |
| SATA Express Ports | 0 |
| Wired Networking (LAN) | GbE LAN |
| Onboard Wi-Fi | Yes |
| Wi-Fi Standard | 5 |
| Rear-Panel USB | USB 3.2 Gen1, USB 2.0 |
| Internal USB 3.2 Gen 2x2 Headers | 0 |
| Internal USB 3.2 Gen 2 Headers | 0 |
| Internal USB 3.2 Gen 1 Headers | 1 |
| Internal USB 2.0 Headers | 1 |
| NVIDIA SLI | No |
| AMD CrossFire | No |
| RAID Capability | Yes |
| Back-Connect Layout | No |
| Manufacturer Part Number (MPN) | Z270M-ITX/ac |
| SKU Code | Z270M-ITX/ac |
| GTIN / EAN | 4717677332407 |
