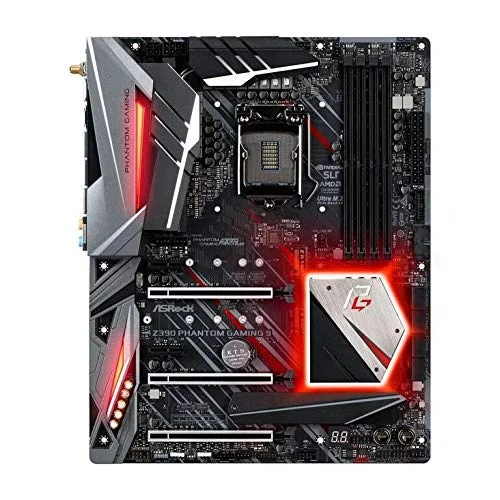

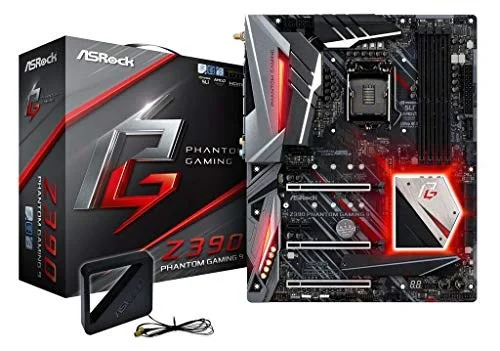

ASRock Z390 PHANTOM GAMING 9 LGA1151 ATX DDR4 128 GB Motherboard
* PC Pro Guide may earn a small commission when you buy through links on our site. (Affiliate disclosure)
* Prices and availability can change without notice. The price and stock status displayed on Amazon at the time you complete your purchase are the ones that apply.
Description
The ASRock Z390 PHANTOM GAMING 9 is a ATX motherboard for LGA1151. It supports DDR4 memory up to 4266 MT/s (OC).
- LGA1151 Supports 9th and 8th Generation Intel Core Processors
- Chipset: Intel Z390
- Memory: 4x DDR4 DIMM Slots, Dual Channel, Non-ECC, Unbuffered, Max Capacity of 64GB
- Slots: 3x PCI-Express 3.0 x16 Slots (run single at x16 or dual at x8/x8 or triple at x8/x4/x4), 2x PCI-Express 3.0 x1 Slots (Flexible PCIe)
- Multi-Graphics: Supports AMD Quad CrossFireX, 3-Way CrossFireX, CrossFireX and NVIDIA Quad SLI, SLI Technology
Specifications
| Manufacturer | ASRock |
|---|---|
| Model Number | Z390 PHANTOM GAMING 9 |
| Launch Date | |
| CPU Socket | LGA1151 |
| Chipset Model | Intel Z390 |
| Board Size / Form Factor | ATX |
| Supported Memory Type | DDR4 |
| DIMM Slots | 4 |
| Maximum RAM Capacity | 128 GB |
| Valid DDR4 Speeds | DDR4-2133 / DDR4-2400 / DDR4-2666 / DDR4-2800 / DDR4-2933 / DDR4-3200 / DDR4-3600 / DDR4-3733 / DDR4-3800 / DDR4-3866 / DDR4-4000 / DDR4-4133 / DDR4-4266 (OC) |
| ECC Memory Support | No |
| Expansion Slots (PCIe) | 3 × PCIe x16, 2 × PCIe x1 |
| PCIe x16 (Qty) | 3 |
| PCIe x4 (Qty) | 0 |
| PCIe x1 (Qty) | 2 |
| M.2 Slot Count | 3 × M.2 |
| M.2 Device Compatibility | 2230 / 2242 / 2260 / 2280 - M Key, 2230 / 2242 / 2260 / 2280 / 22110 - M Key, 2230 / 2242 / 2260 / 2280 / 22110 - M Key |
| SATA III Ports | 6 × SATA 6Gbps |
| SATA Express Ports | 0 |
| Wired Networking (LAN) | |
| Onboard Wi-Fi | Yes |
| Wi-Fi Standard | 5 |

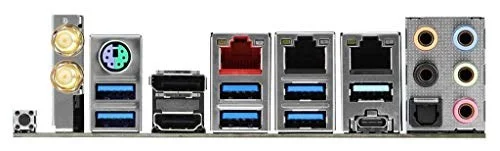

| Rear-Panel USB | USB 3.2 Gen2, USB 3.2 Gen1, USB 2.0 |
| Internal USB 3.2 Gen 2x2 Headers | 0 |
| Internal USB 3.2 Gen 2 Headers | 1 |
| Internal USB 3.2 Gen 1 Headers | 2 |
| Internal USB 2.0 Headers | 2 |
| NVIDIA SLI | Yes |
| AMD CrossFire | Yes |
| RAID Capability | Yes |
| Back-Connect Layout | No |
| Manufacturer Part Number (MPN) | Z390 PHANTOM GAMING 9 |
| SKU Code | Z390 PHANTOM GAMING 9 |
| GTIN / EAN | 4717677337082 |
