ASRock Z390M PRO4 LGA1151 Micro-ATX DDR4 64 GB Motherboard
| Seller | Shipping | Promo | Price |
|---|---|---|---|
|
- | - | |
|
- | - |
N/A
|
|
- | - |
N/A
|
|
- | - |
N/A
|
* PC Pro Guide may earn a small commission when you buy through links on our site. (Affiliate disclosure)
* Prices and availability can change without notice. The price and stock status displayed on Amazon at the time you complete your purchase are the ones that apply.
Description

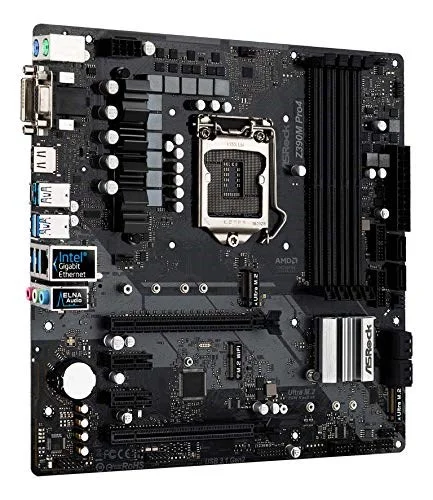

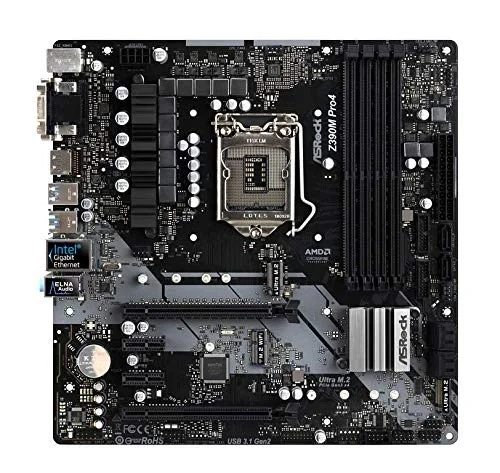

The ASRock Z390M PRO4 is a Micro-ATX motherboard for LGA1151. It supports DDR4 memory up to 4266 MT/s (OC).
- LGA1151 Supports 9th and 8th Generation Intel Core Processors
- Chipset: Intel Z390
- Memory: 4x DDR4 DIMM Slots, Dual Channel, Non-ECC, Unbuffered, Max Capacity of 64GB
- Slots: 2x PCI-Express 3.0 x16 Slots (run single at x16 or dual at x16/x4), 2x PCI-Express 3.0 x1 Slots (Flexible PCIe)
- Multi-Graphics: Supports AMD Quad CrossFireX, CrossFireX Technology
Specifications
| Manufacturer | ASRock |
|---|---|
| Model Number | Z390M PRO4 |
| Launch Date | |
| CPU Socket | LGA1151 |
| Chipset Model | Intel Z390 |
| Board Size / Form Factor | Micro-ATX |
| Supported Memory Type | DDR4 |
| DIMM Slots | 4 |
| Maximum RAM Capacity | 64 GB |
| Valid DDR4 Speeds | DDR4-2133 / DDR4-2400 / DDR4-2666 / DDR4-2800 / DDR4-2933 / DDR4-3200 / DDR4-3600 / DDR4-3733 / DDR4-3800 / DDR4-3866 / DDR4-4000 / DDR4-4133 / DDR4-4266 (OC) |
| ECC Memory Support | No |
| Expansion Slots (PCIe) | 2 × PCIe x16, 2 × PCIe x1 |
| PCIe x16 (Qty) | 2 |
| PCIe x4 (Qty) | 0 |
| PCIe x1 (Qty) | 2 |
| M.2 Slot Count | 3 × M.2 |
| M.2 Device Compatibility | 2230 / 2242 / 2260 / 2280 - M Key, 2230 - E Key, 2230 / 2242 / 2260 / 2280 - M Key |
| SATA III Ports | 6 × SATA 6Gbps |
| SATA Express Ports | 0 |
| Wired Networking (LAN) | |
| Onboard Wi-Fi | No |
| Wi-Fi Standard | |

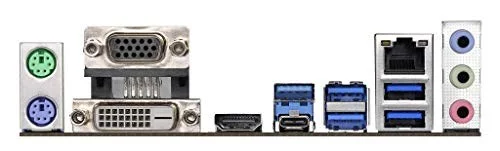

| Rear-Panel USB | USB 3.2 Gen1, USB 2.0 |
| Internal USB 3.2 Gen 2x2 Headers | 0 |
| Internal USB 3.2 Gen 2 Headers | 0 |
| Internal USB 3.2 Gen 1 Headers | 2 |
| Internal USB 2.0 Headers | 2 |
| NVIDIA SLI | No |
| AMD CrossFire | Yes |
| RAID Capability | Yes |
| Back-Connect Layout | No |
| Manufacturer Part Number (MPN) | Z390M PRO4 |
| SKU Code | Z390M PRO4 |
| GTIN / EAN | 4717677336801 |
Price History (last 12 months)
Plots available price points within the past 12 months.
